Fusion Splice Protection Sleeves, Hot Heat Shrinkable Fiber Optic Splice Protectors
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Fiber Test Extension Line Equipment 1KM 2KM Multimode sm Fiber Rings sc Apc lc Upc OTDR Launch Cable BoxNegotiableMOQ: 1 -
SC LC OTDR Dead Zone Eliminator,Fiber Rings ,Fiber Optic OTDR Launch Cable Box 1km Single Mode 1310/1550nmNegotiableMOQ: 1
-
Fiber Cable Cutter Slitter Mid Span Fiber Optical Slitter Cable Cluster/ Cutter Jacket Mid Span Cable StrippingNegotiableMOQ: 1
-
Longitudinal Fiber Optical Coaxial Cable Jacket Stripper SI-01 Outer Optical Fiber Cable Sheath SlitterNegotiableMOQ: 1
-
FTTH Fiber Optic Loose Tube Slitter Wire Stripper Pliers Hand Tool Vertical Fiber Cable Sheath CutterNegotiableMOQ: 1
Product Description

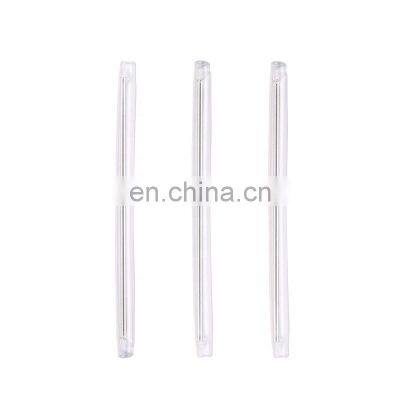

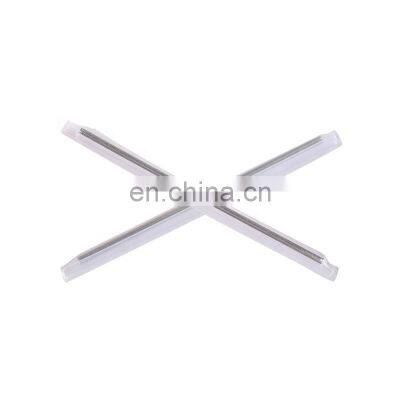

Fusion Splice Protection Sleeves, Hot Heat Shrinkable Fiber Optic Splice Protectors
Description
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

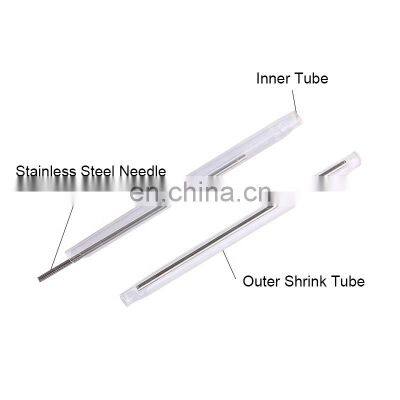

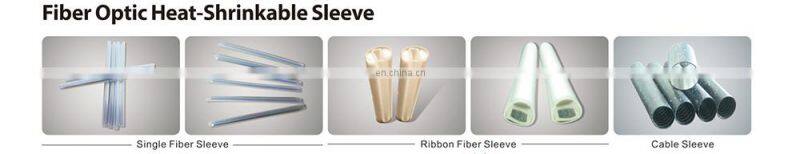

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Application
1.Telecommunications subscriber loop
2.Fiber to the home (FTTH)
3.LAN/WAN
4.CATV
Feature
1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.
2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the oprical fiber during installation.
4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity.
5. Bellcore GR-1380 Compliant
6. RoHS & REACH Compliant
Operating Temperture Range
* Operating temperature : -45°c~100°c / -45°c ~135°c
* Minimum shrink temperature : 80°c
* Minimum fully recovery temperature : 120°c
* Minimum shrink temperature : 80°c
* Minimum fully recovery temperature : 120°c
Model | Fiber optic heat shrinking sleeve/ tube |
Type | Single fiber, Ribbon fiber |
Material | Heat shrink tube, fusion tube, 304 steel rod |
Length | 40, 45, 50, 60mm |
Steel rod diameter | 1.5, 1.2, 1.0mm |
Minimum fully recovery temperature | 120 °C |
Operating temperature | -45 °C to + 100 °C |
Standard Color | Clear |
Performance | Test Method | Typical data |
Tensile strength | ASTM D 2671 | 18MPa |
Elongation at break | ASTM D 2671 | 700% |
Density | ISO R1183D | 0.94g/cm3 |
Dielectric strength | IEC243 | 25KV/mm |
volume resistance | IEC243 | 1015Ω.cm |
Length changes | ASTM D 2671 | ±5% |
Company Profile
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
End User
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
