GYFTY 96/144/192/288 Cores Non-Armored Stranded Loose Tube Outdoor Fiber Optic Cable
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
8.2mm 2 cores Outdoor Fiber Optic Cable with 0.9mm tight buffered cable
-
2~24 Core Super Mini UniTube Air Blown Fiber Optic Cable
-
Double jacket Direct buried GYTA53 type Outdoor Fiber Optic Cable
-
Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable
-
2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable
-
Factory Price Outdoor fiber optic wire adss 12 core 24 core fibre optique fiber optical G652D cable roll drum
Product Description
Products Description

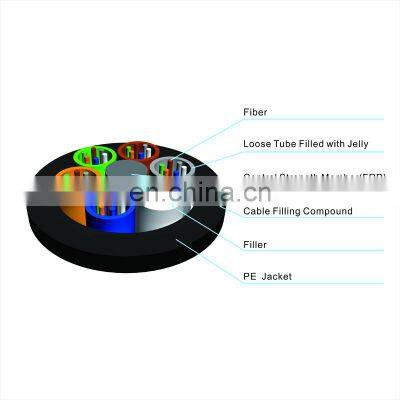

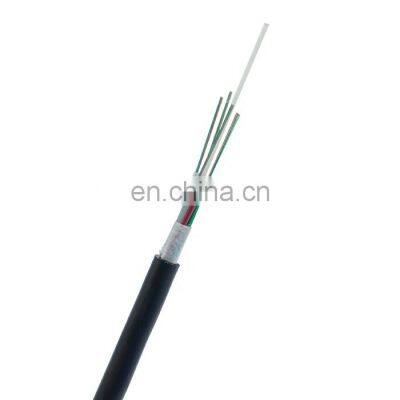

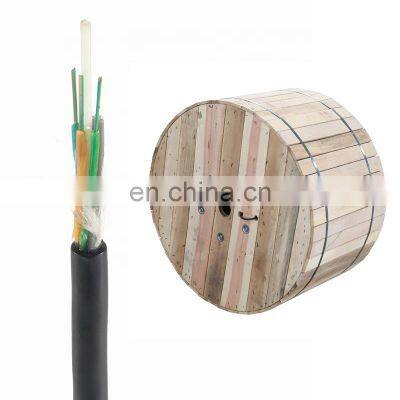

GYFTY 96/144/192/288 Cores Non-Armored Stranded Loose Tube Outdoor Fiber Optic Cable
GYFTY Single Jacket None Metallic optical fiber cable are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

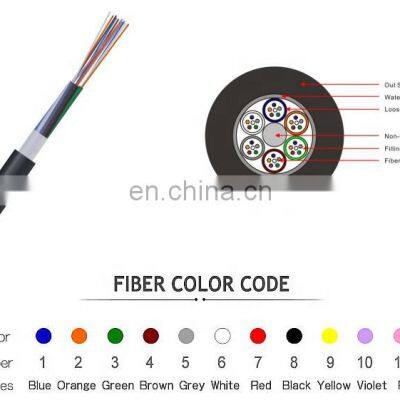

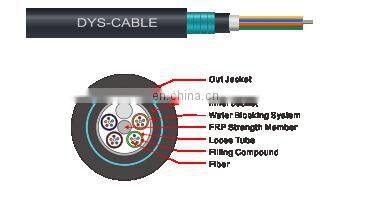

Fiber:
2-288 fiber
Multi-loose tube gel-filled
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP).
Outer Jacket:
Black UV Polyethylene(PE)
Features:
1. Up to 288 fibers.
2. Loose tube gel-filled construction for superior fiber protection.
3. Corrugated steel tape armor to protect cable from mechanical damage.
4. UV and waterproof design.
2. Loose tube gel-filled construction for superior fiber protection.
3. Corrugated steel tape armor to protect cable from mechanical damage.
4. UV and waterproof design.
Application:
1. Interbuilding voice or data communication backbone.
2. Installed in duct, underground conduit .
2. Installed in duct, underground conduit .
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | |||||||||
Short Term | Long Term | Short Term | Long Term | ||||||||||||
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 | |||||||
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 | |||||||
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 | |||||||
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 | |||||||
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 | |||||||
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 | |||||||
>144 | Available upon customer request | ||||||||||||||

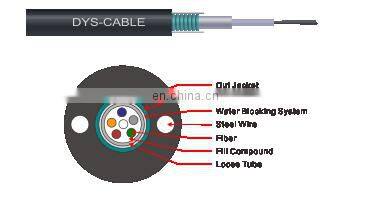

GYXTW Outdoor Cable

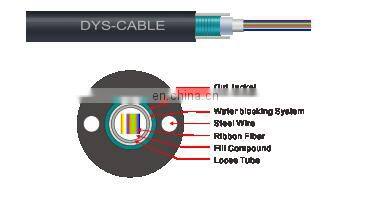

GYDXTW Outdoor Cable

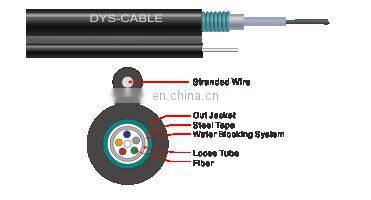

GYTC8S Outdoor Cable

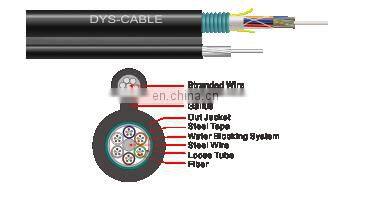

GYXTC8S Outdoor Cable

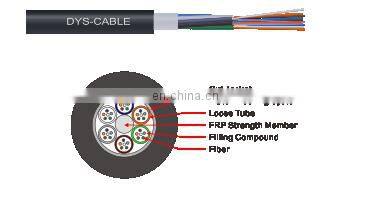

GYFTY Outdoor Cable
GYFTY53 Outdoor Cable

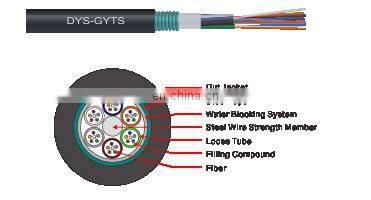

GYTS Outdoor Cable

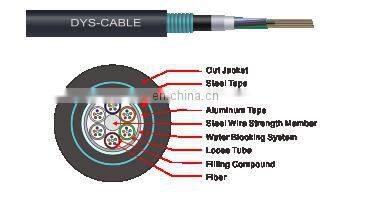

GYTA53 Outdoor Cable
