Home > Products > PLC Splitter > DYS Optical Anatel Certification Fiber Optic 1x8 PLC Splitter

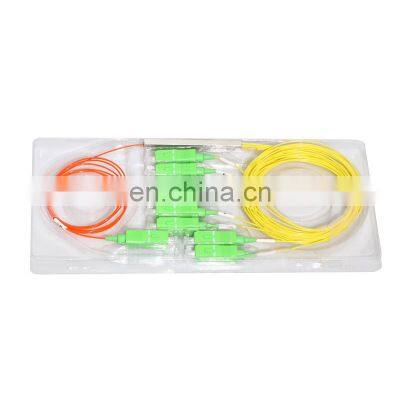

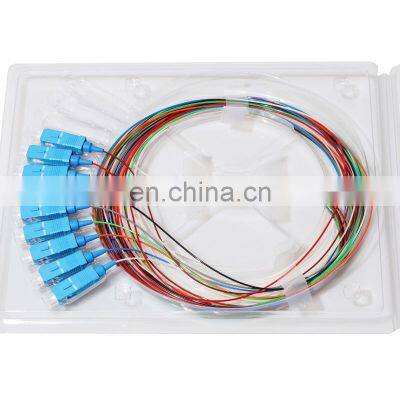

DYS Optical Anatel Certification Fiber Optic 1x8 PLC Splitter
- 1000 per Month
- T/T Credit Card
- Telecom FTTH 1x2 1x4 1x8 1x16 1x32 1x64 Optical Fiber PLC Splitter
- 1x2 1x4 1x8 1x16 1x32 1x64 Gpon Epon PLC fiber optic splitter
- FTTH Steel Tube Type 1X8 PLC Splitter Single Mode 1*8 Mini Fiber Optic Splitter
- 2 in 4 out fiber splitter/2 in 8 out plc splitter/optical splitter price
- 1:4,1:8,1:16 Mini steel tube type Fiber Optic PLC Splitter with SC connector
- 0.9mm SM SC LC FC ST 1X2 mini tube FBT fiber coupler/splitter,ratio 10/90 20/80 30/70 40/60 50/50 optical Coupler 1x2 for CATV
Product Description
APPLICATION
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector
LGX PLC splitter with SC APC connector
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) | |||||
Fiber | 9/125 um SMF-28e or customer appoint | ||||||||||
Operating Wavelength(nm) | 1260~1650(nm) | ||||||||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB | |||||
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB | |||||
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | |||||
Return Loss | UPC≥50dB APC≥60dB | ||||||||||
Directivity | ≥55dB | ||||||||||
Working Temperature(℃) | -40°C to +85°C |
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
INNOVATIVE TECHNOLOGY
We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.
OFC
Booth#: 4722 Date: 5-7 March Adds: San Diego, USA
COMMUNICASIA
Booth#: BT3-07
Date: 18-20 June
Adds: Marina Bay Sands Singapore
ECOC
Booth#: 339
Date: 24-26 September
Adds: Rome, Italy
COMMWORLD
Booth#: G16
Date: 16th-19th, August
Adds: SMX Convention Center Manila
Sample
Within 1-2 working days
Wholesale orders
3-7 working days according various quantities
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
