1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler

Shenzhen DYS Fiber Optic Technology Co., Ltd.
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler thumbnail-1
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler thumbnail-2
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler thumbnail-3
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler thumbnail-4
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler thumbnail-5
1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler photo-1

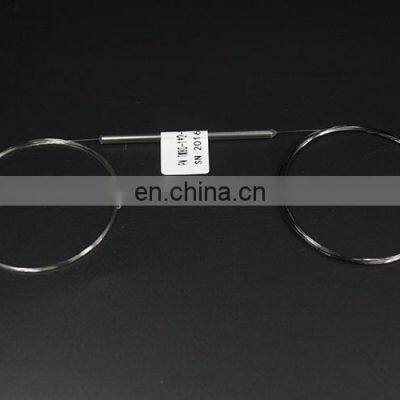

1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler photo-2

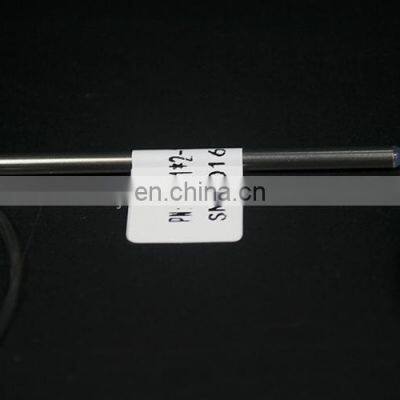

1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler photo-3

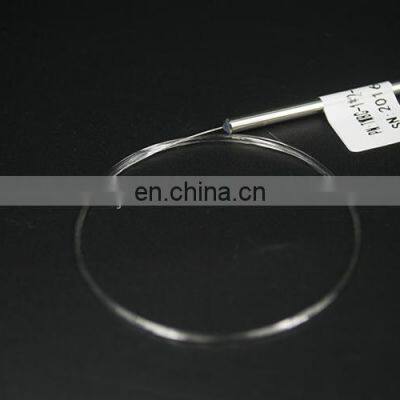

1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler photo-4

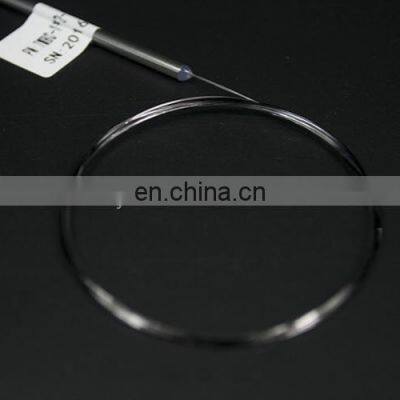

1x2 Fiber Optic Splitting Ratio :90/10 FBT Splitter/coupler photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

1x2 Fiber optic splitting ratio :90/10 FBT splitter/coupler

1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. 2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. 3.It provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE 4. It offers both tree and star type inline couplers/splitters with Rack mount box. 5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

Applications

1. FTTX Systems
2. PON Networks
3. CATV
4. Optical Signal Distribution

Features

1. Low Insertion loss and PDL
2. Compact Design
3. Good channel-to-channel uniformity
4. Wide Operating Wavelength: From 1260nm to 1650nm
5. High Reliability and Stability
Parameter
Specification
Channel Number
1×2 or 2×2
Operating Wavelength (nm)
1310,1550,1310/1550,1310/1550/1490
Operating Bandwidth (nm)
±40
Coupling Ratio
Coupling Ratio Insertion Loss(dB)
P Grade
A Grade
50/50
≤3.3
≤3.5
40/60
≤4.5/2.6
≤4.7/2.8
30/70
≤5.7/1.9
≤5.9/2.1
20/80
≤7.6/1.3
≤7.75/1.38
10/90
≤10.85/0.68
≤11.2/0.75
5/95
≤14.4/0.45
≤15.5 /0.48
2/98
≤18.5/0.6
≤19.8/0.38
1/99
≤21.8/0.28
≤22.8/0.35
PDL (dB)
≤0.15
≤0.2
Directivity(dB)
≥50
Return Loss(dB)
≥55
Parameter
Specification
Operating Wavelength
nm
Single Window1 Dual,Three Window2
(1×N)
N=3
N=4
N=5
N=8
N=16
N=24
N=32
N=64
Fiber Type
Corning SMF-28e
IL(MAX)
dB
5.41/5.62
7.01/7.22
7.81/8.02
10.01/10.42
13.51/13.92
15.01/15.42
17.31/17.52
21.01/21.52
Uniformity
dB
0.51/0.62
0.51/0.62
0.61/0.82
0.81/1.02
1.11/1.32
1.21/1.52
1.31/1.52
2.11/2.52
Return Loss
dB
≥55
Directivity
dB
≥55
PDL
dB
<0.20
<0.20
<0.30
<0.30
<0.40
<0.50
<0.50
<0.50
