Field Assembly Optical Fast Connector SC Connector For FTTH Drop Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC APC Fast ConnectorNegotiableMOQ: 1 -
Fast Connector Sc Om2 FTTH Fiber Optic Quick ConnectorNegotiableMOQ: 1
-
FC Fast Connector FC5501u Fiber Optic Fast Interface With Cheap PriceNegotiableMOQ: 1
-
Quick Field Assembly Fiber Optic FC Mechanical Fast Connector for FTTH CableNegotiableMOQ: 1
-
FTTH Fiber Optical Single Mode LC APC Fast ConnectorNegotiableMOQ: 1
Product Description

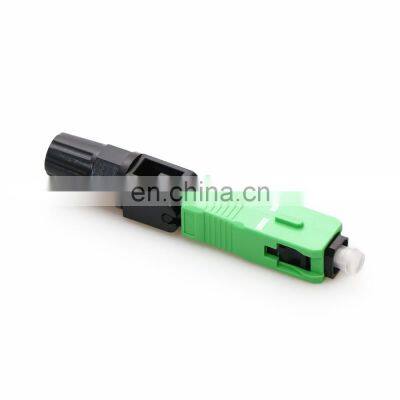

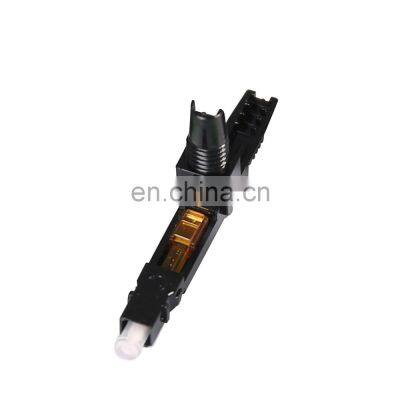

Field Assembly Optical Fast Connector SC Connector For FTTH Drop Cable

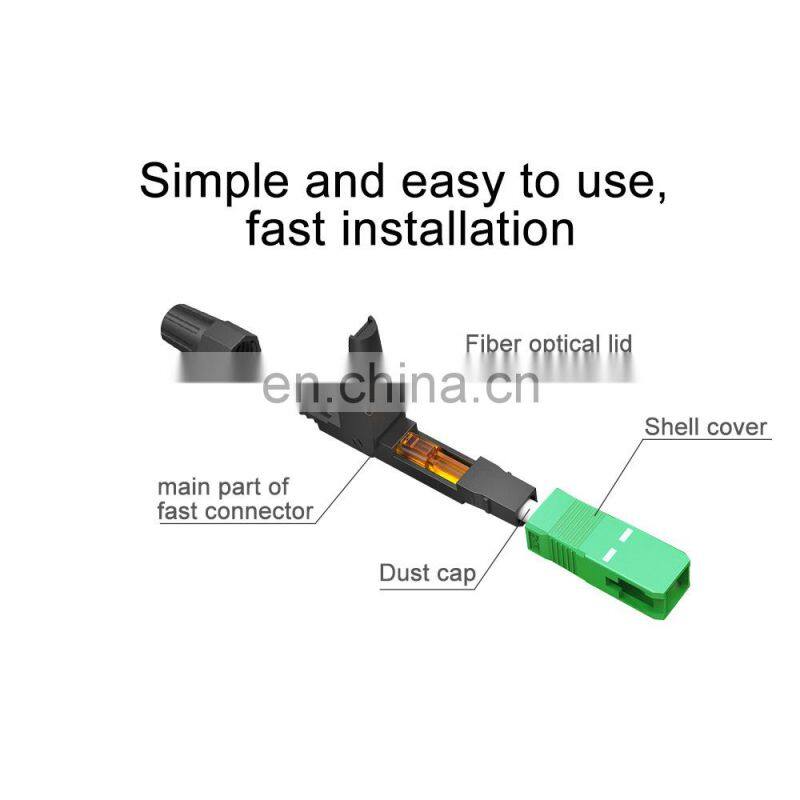

Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.
it was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With
transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.
Optic Fiber Fast Connector
1.Simple structure
2.Save time
3.Low insertion loss.
2.Save time
3.Low insertion loss.
Feature
1.Low insertion loss ,high return loss;
2.Reliable optical performance;
3.Good connection stability;
4.Convenient for field installation;
5.Installs fast,Operates easy ;
6.Low cost.
2.Reliable optical performance;
3.Good connection stability;
4.Convenient for field installation;
5.Installs fast,Operates easy ;
6.Low cost.
Item |
Parameter |
Cable Scope |
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
Size |
51*9*7.55mm |
Coating Diameter |
250μm |
Mode |
SM |
Operation Time |
about 15s(exclude fiber presetting) |
Insertion Loss |
≤ 0.3dB(1310nm & 1550nm) |
Return Loss |
≤ -50dB for UPC, ≤ 55dB for APC |
Success Rate |
>98% |
Reusable Times |
>5 times |
Tighten Strength of Naked Fiber |
>5 N |
Tensile Strength |
>30 N |
Temperature |
-40 ~ +85 C |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test |
IL ≤ 0.3dB |
Company Profile
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
End User
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
