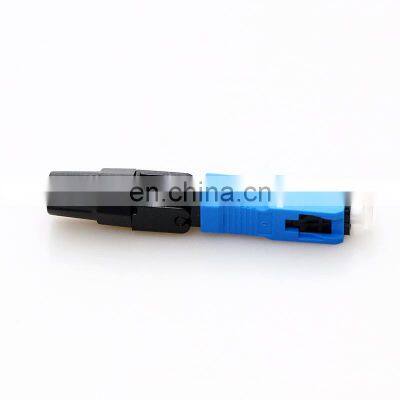

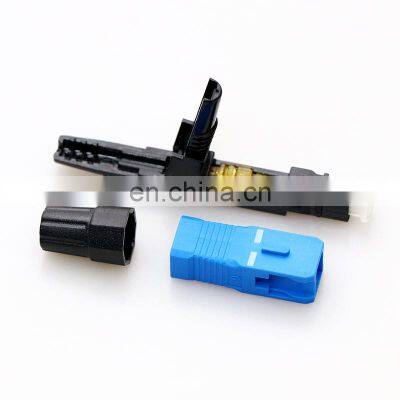

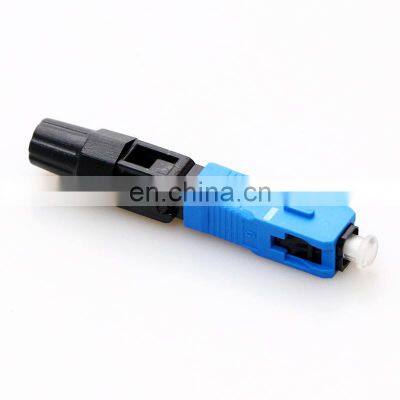

Pre-embedded FTTH Fiber Optic Drop Cable SC/UPC Fast Field Assembly Connector
- 1000 per Month
- T/T Credit Card
- Field Assembly Optical Fast Connector SC Connector For FTTH Drop Cable
- China Manufacturer FTTH Field Quick Assembly Fiber Optic SC APC Fast Connector
- Fast Connector Sc Om2 FTTH Fiber Optic Quick Connector
- FC Fast Connector FC5501u Fiber Optic Fast Interface with Cheap Price
- Quick Field Assembly Fiber Optic FC Mechanical Fast Connector for FTTH Cable
- FTTH Fiber Optical Single Mode LC APC Fast Connector
Product Description

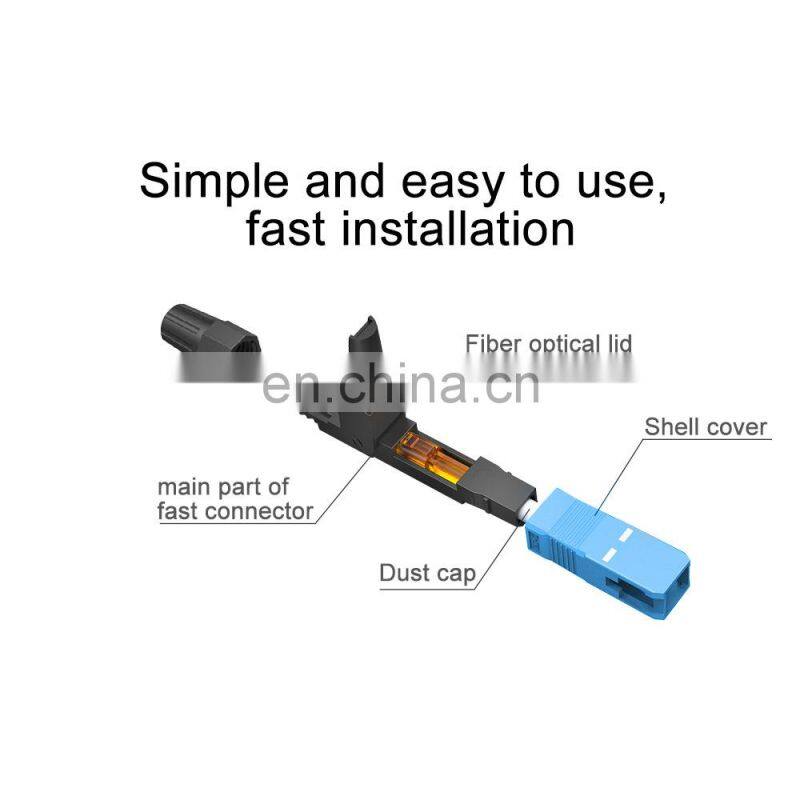

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry
APPLICATIONS
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
FEATURES
Single fiber, SC/LC/ST/FC-based connector
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm
PRODUCT PARAMETERS | ||||||||||||
Type | SM-UPC | SM-APC | MM-UPC | |||||||||
Typical | MAX | Typical | MAX | Typical | MAX | |||||||
Insertion loss | ≥45dB | ≤0.35dB | ≤0.15 | ≤0.35dB | ≤0.05 | ≤0.30dB | ||||||
Return loss | ≥45dB | ≥55dB | ≥30dB | |||||||||
Durability | 500 mating cycles | |||||||||||
Working temperature | -40 to + 85℃ |
