Fiber Optic Terminal Box 16 Core Desktop LC With Adapter Pigtail 8 Ports Fiber Optical Patch Panel OEM
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Patch Panel LC 8 Port Fiber Optic Industrial Grade Desktop Type Fully Equipped FTTHNegotiableMOQ: 1 -
8 Ports Fiber Optic Terminal Box With 6pcs Duplexadapters 12pcs LC/APC G652D Pigtails Andepcs Duplex Adapters LC/UPC PigtailNegotiableMOQ: 1
-
FTTH Box(ftth-005)/ Terminal Box Ftth 16core, Wall MountedNegotiableMOQ: 1
-
FTTH Fiber Terminal Box 2 Core With SC Shutter Adapter Optical Distribution BoxNegotiableMOQ: 1
-
Outdoor Ftth Waterproof Plastic Rack Mounted 16 Core Ports Fiber Optic Termination BoxNegotiableMOQ: 1
Product Description

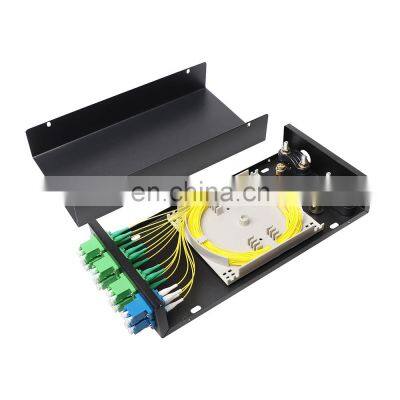

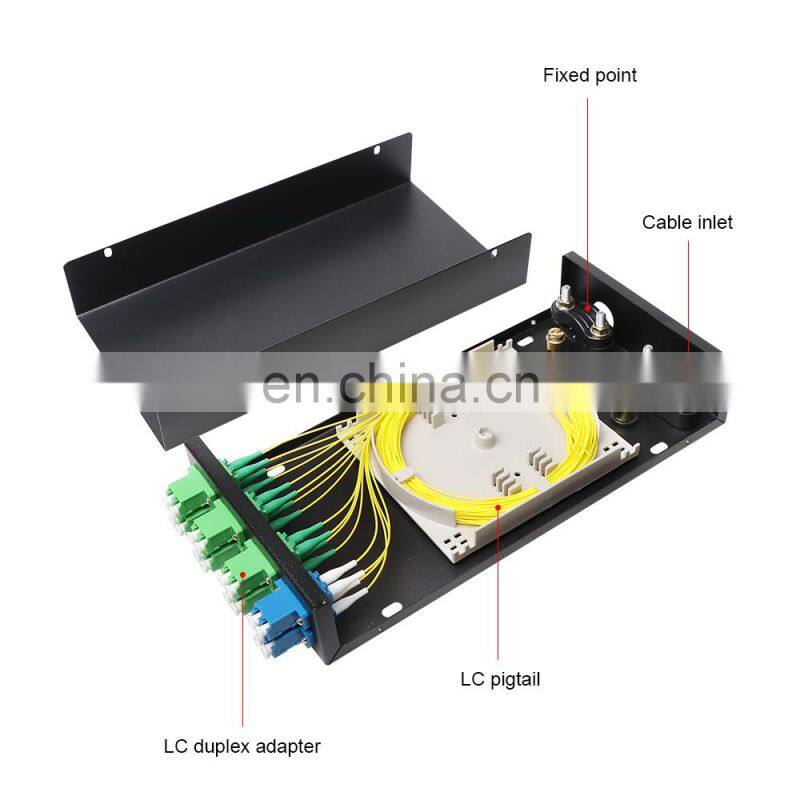

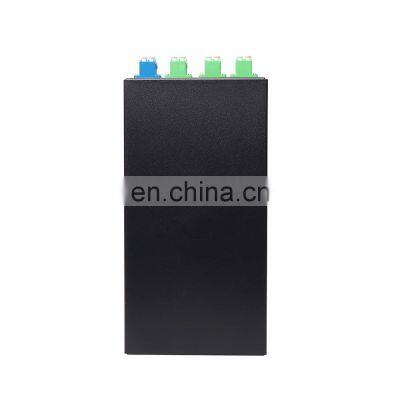

Fiber optic terminal box 16 core Desktop LC with adapter pigtail 8 Ports Fiber optical Patch Panel OEM
The Fiber opitcal Terminal Box is a kind of fiber optic managenment products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system.These units are available in sizes that fit the most common distribution requirements.
Application
1. The termination box applicable to indoor,outdoor fiber cable straight through or branch continuity.
2. Used for wire distribution and end connection of the optical fiber system.
3. Fit for wall mounted
2. Used for wire distribution and end connection of the optical fiber system.
3. Fit for wall mounted
Descriptions
1. Hight quality steel with cover by electrostatic painted
2. Standard 19" racks use or customized size
3. Height depends on capacity
4. Optional sdapter types:FC,SC,LC
2. Standard 19" racks use or customized size
3. Height depends on capacity
4. Optional sdapter types:FC,SC,LC
Basic parameters: |
||
Product name |
FTTH fiber optic termianl box ( distribution box) |
|
Brand name |
DYS or OEM |
|
Adapter (coupler) type |
LC-LC Duplex |
|
Adapter (coupler) number |
8 |
|
Fiber type of pigtail(patch cord) |
Single mode |
|
Connector type of pigtail(patch cord) |
LC/UPC, LC/APC |
|
Shell material |
CRS sheet( cold-roll steel sheet) with coating |
|
Shell thickness |
0.74mm |
|
Color |
Black |
|
Outer size |
155x95x30mm |
|
Net weight |
About 0.4kg |
|
Opening |
Screw fixation |
|
Installation |
Wall / desktop / floor mounting |
|
Optional adapter |
SC-SC simplex adapter (coupler) |
|
Optional fiber |
Multimode |
|
Company Profile
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
End User
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
