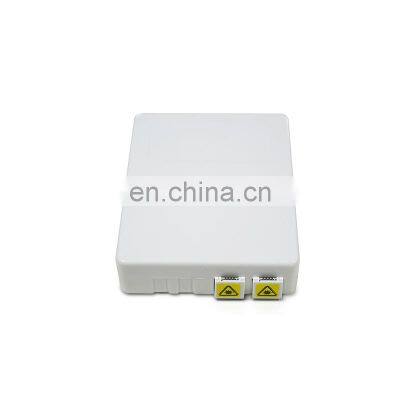

Help CenterOne Port Ftth With Shuttle SC Adapter 2 Port Fiber Optic Terminal Box
Related Products
-
Supply Patch Panel 48 Ports 2U Odf Rack Mount Slide 48 Port Fiber Optic Patch PanelNegotiableMOQ: 1 -
12 Port Indoor&outdoor Optic Terminal Box/ FTTH Distribution BoxNegotiableMOQ: 1
-
FTTH Terminal Box With Mini SC Waterproof ConnectorNegotiableMOQ: 1
-
Fiber Optic 2 Port Mini Terminal Ftth BoxNegotiableMOQ: 1
-
16 Core Fiber Optical Distribution Box 1x16 Splitter FTTH Terminal Box 16F CTO FDB BoxNegotiableMOQ: 1
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.
FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
Parameter |
Value |
Remark |
Model |
FTTH-016 |
|
Outside Dimension (mm) |
80*100*23 |
|
Material |
ABS |
|
Color |
White |
|
Storage of fibers |
G.657 |
|
Splice capacity |
2fiber |
|
Splice Method |
Fusion Splice |
1.0*40mm sleeve |
Adapter type and count |
2 SC/SX or 2 LC/DX |
|
Input cable |
3mm or figure 8 (2*3mm) |
From side or bottom |
APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks
FEATURES

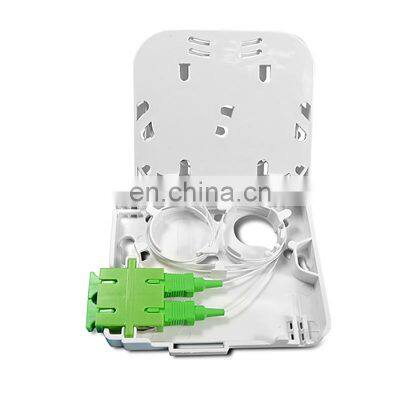

Small size and light weight for easy installation compact body.
Easy installations: Ready for wall mount – installation kits provided.
Lower layer for splicing .
Upper layer for cross-connecting and fiber distribution.
Fully stable adapter panel, no risk of movement.
Fiber can get in from bottom or side

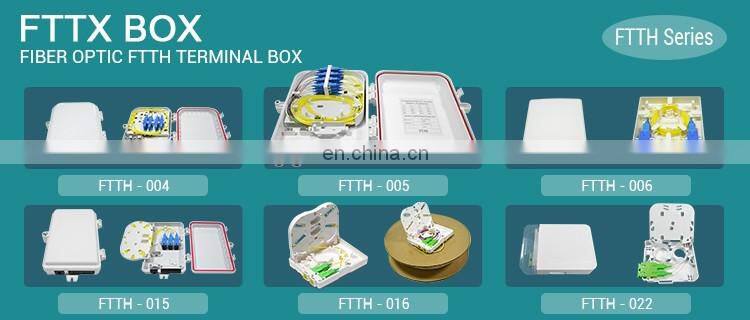

Type |
parameter |
Dimension (W*H*D) |
200mm(W)x215mm(H)x54mm(D) |
DYS Part Number |
FTTH - 004 / 8Core |
FTTH - 019 / 4Core
100mm(W)x83mm(H)x32mm(D)
FTTH - 015 / 6Core
210mm(W)x140mm(H)x40mm(D)
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
INNOVATIVE TECHNOLOGY
We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.
OFC 2019
Booth#: 4722 Date: 5-7 March Adds: San Diego, USA
COMMUNICASIA 2019
Booth#: BT3-07
Date: 18-20 June
Adds: Marina Bay Sands Singapore
ECOC 2018
Booth#: 339
Date: 24-26 September
Adds: Rome, Italy
COMMWORLD 2018
Booth#: G16
Date: 16th-19th, August
Adds: SMX Convention Center Manila
Sample
Within 1-2 working days
Wholesale orders
3-7 working days according various quantities
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
