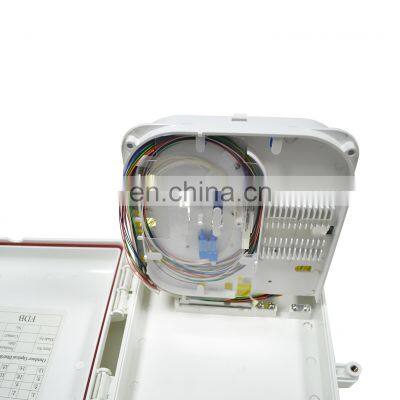

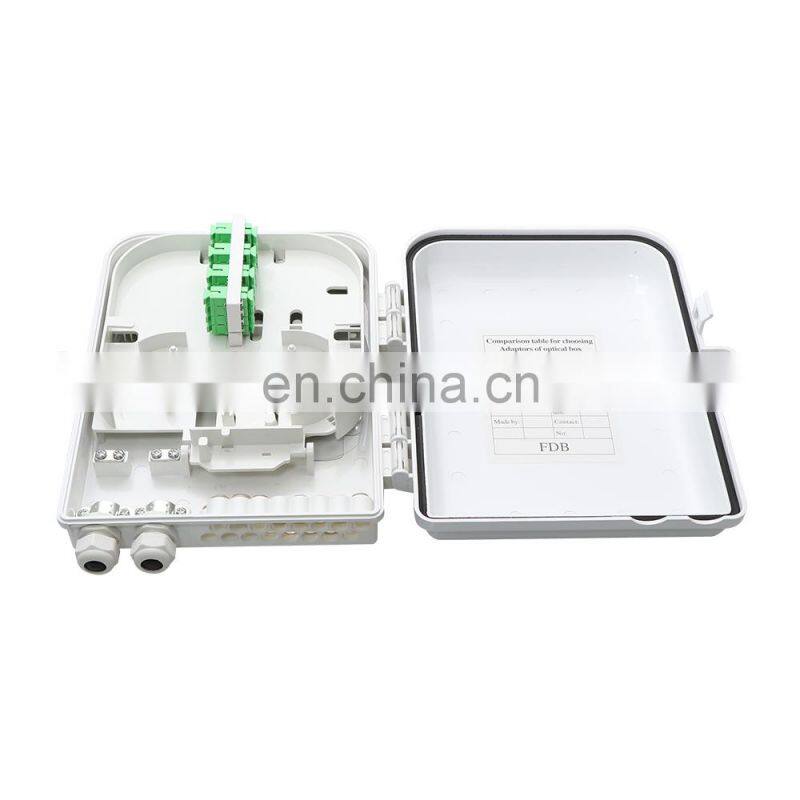

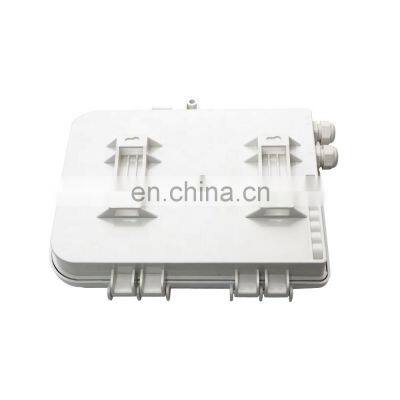

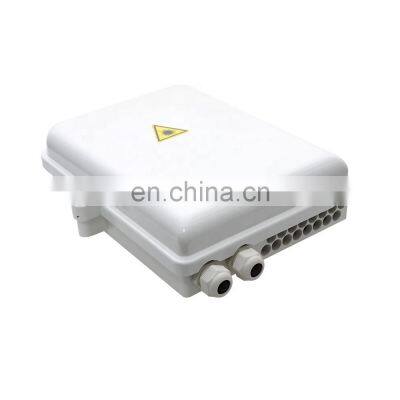

16 Core Fiber Optical Distribution Box 1x16 Splitter FTTH Terminal Box 16F CTO FDB Box
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FTTA Armored Waterproof Patch Cord With Multi Port (MTP/MPO/LC/SC) ODVA Terminal Junction BoxNegotiableMOQ: 1 -
Fiber Optic Wall Mounted 6 Ports SC Indoor Terminal BoxNegotiableMOQ: 1
-
FTTH-006 2port Fiber Optic Wall Mount Mini Ftth Termination BoxNegotiableMOQ: 1
-
8 Core Fiber Optical Terminal CTO/NAP Distribution Box With 1x8 PLC SplitterNegotiableMOQ: 1
-
16 Cores Fiber Distribution Box FDB PC/ABS FTTH Fiber Optic Terminal BoxNegotiableMOQ: 1
Product Description
Epon Gpon IP65 8,12,16,24 cores outdoor wall mount fiber optic terminal distribution splitter box
Features
1. Industry Standard User Interface, be made of high impact plastic.

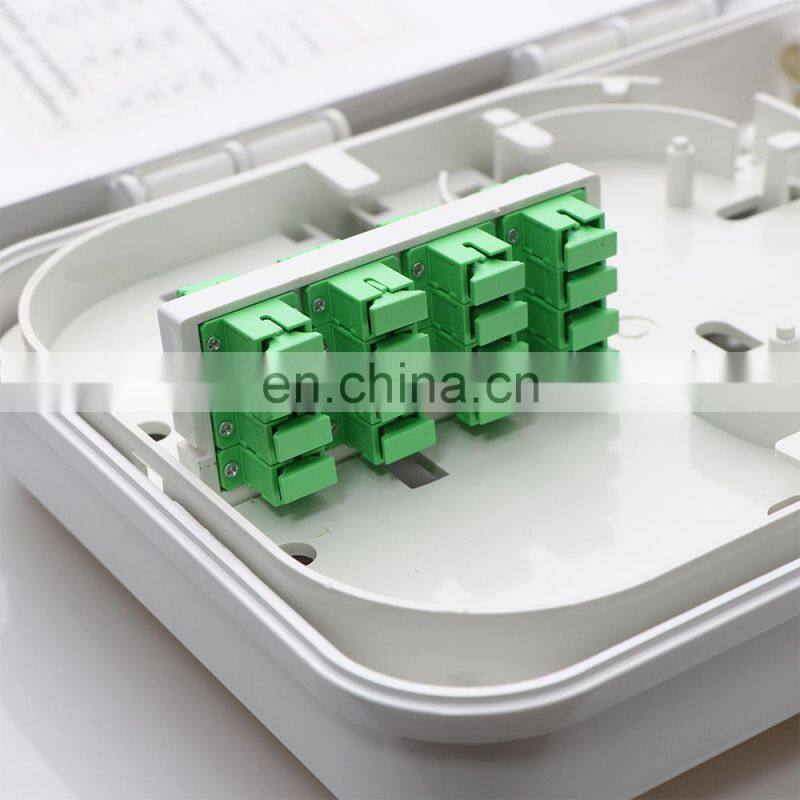

2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.

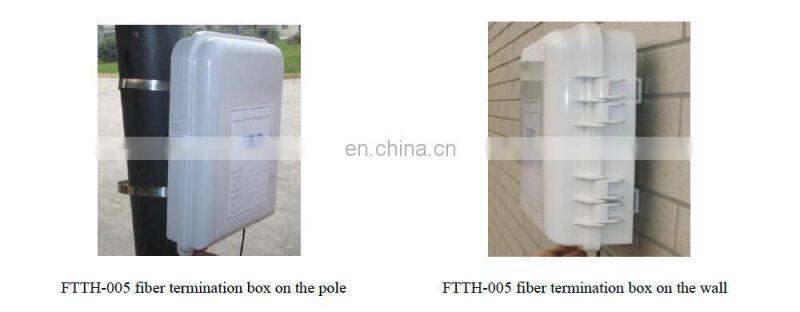

5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.
7. Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
8. Job stress: 70 kpa to 108 kpa;
9. Using the temperature:- 40 ~ + 60 ℃
10. Relative humidity: ≤95% (+ 40 ℃).
11. Protection grade: IP65.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.
7. Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
8. Job stress: 70 kpa to 108 kpa;
9. Using the temperature:- 40 ~ + 60 ℃
10. Relative humidity: ≤95% (+ 40 ℃).
11. Protection grade: IP65.
Application
1. widely used in FTTH access network.
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5. Local Area Networks
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5. Local Area Networks
Model |
Capacity |
Size |
FTTH-005 |
16 port |
260mm(W)x320mm(D)x90mm(D) |

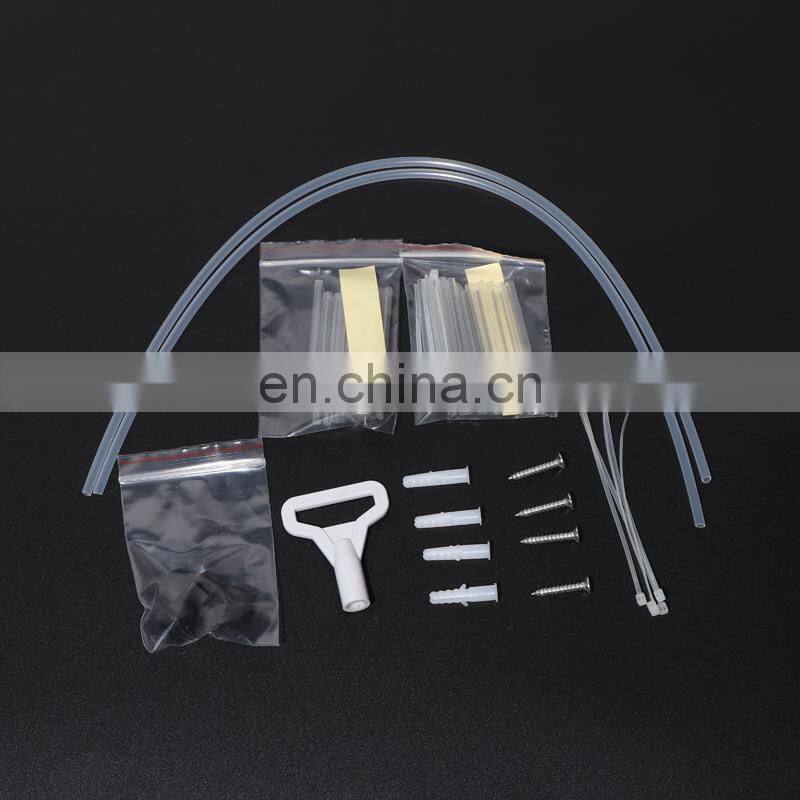

Product Name |
Specifications |
Quantity |
Box |
FTTH-005 |
1 PC |
Optical fiber heat shrinkable casing |
Ф1.2×40mm |
16PCS |
Nylon cable tie |
3×100mm |
8 PCS |
Expansion bolt |
M8×40mm |
4 EST |

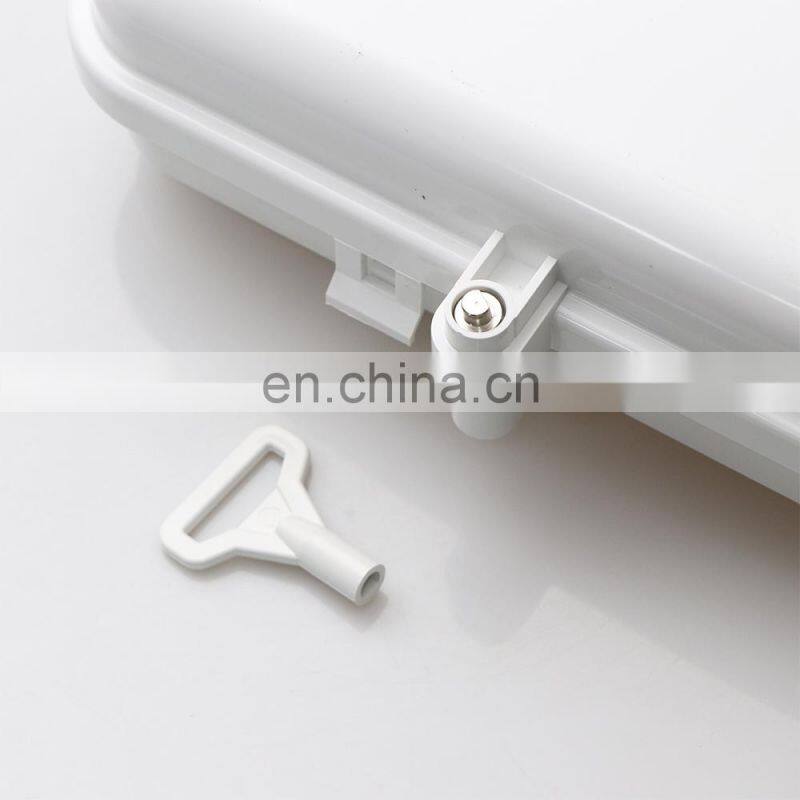

Key |
1 PC |

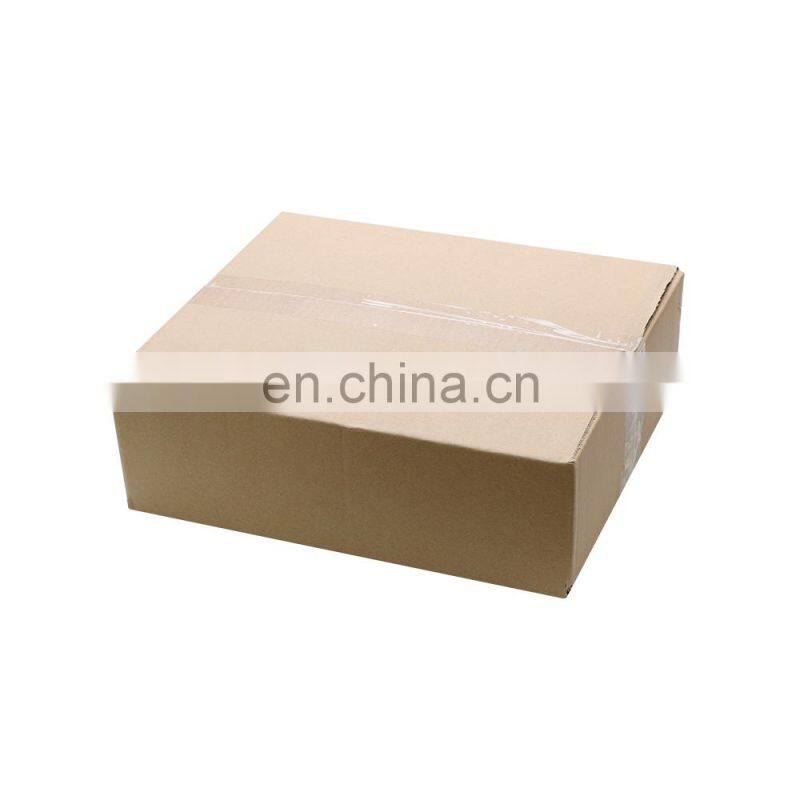

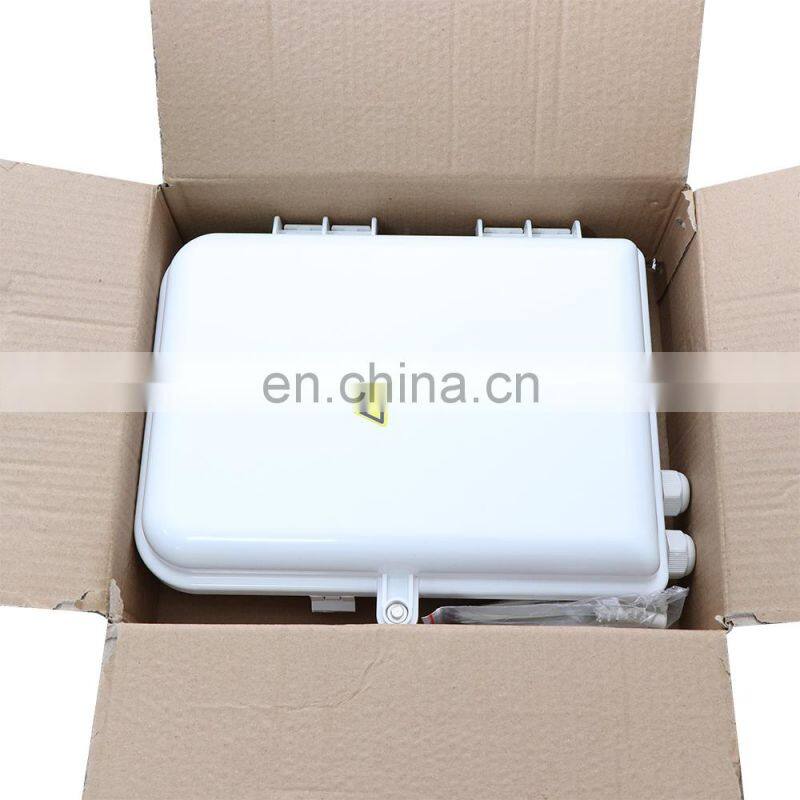

Model |
N.W (kg/pcs) |
Dimension of outer carton (mm) |
G.W of outer Carton (kg/carton) |
No of Products (pcs/carton) |
FTTH-005 |
1.15 |
550*340*560 |
14.1 |
10 |
Company Profile
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
End User
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
