Factory Price MPO(f) to MPO(f) 12f LSZH 3.0m Low Loss Fiber Optic Patch Cord Mpo Trunk Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Optic 12F MPO(female) - MPO(female ) OM4 Mpo Trunk Cable With Pulling EyeNegotiableMOQ: 1 -
Standard Insertion Lose MPO 24 Fiber G657A1 Trunk Cable Patch CordNegotiableMOQ: 1
-
OM3 OM4 12 24 48 Cores Fiber Optic MPO CableNegotiableMOQ: 1
-
Factory Price 8 12 24 Fibers Fiber Optic MTP MPO Patch CableNegotiableMOQ: 1
-
Fiber Optic MPO Breakout Fiber Cable Mpo to lcNegotiableMOQ: 1
Product Description

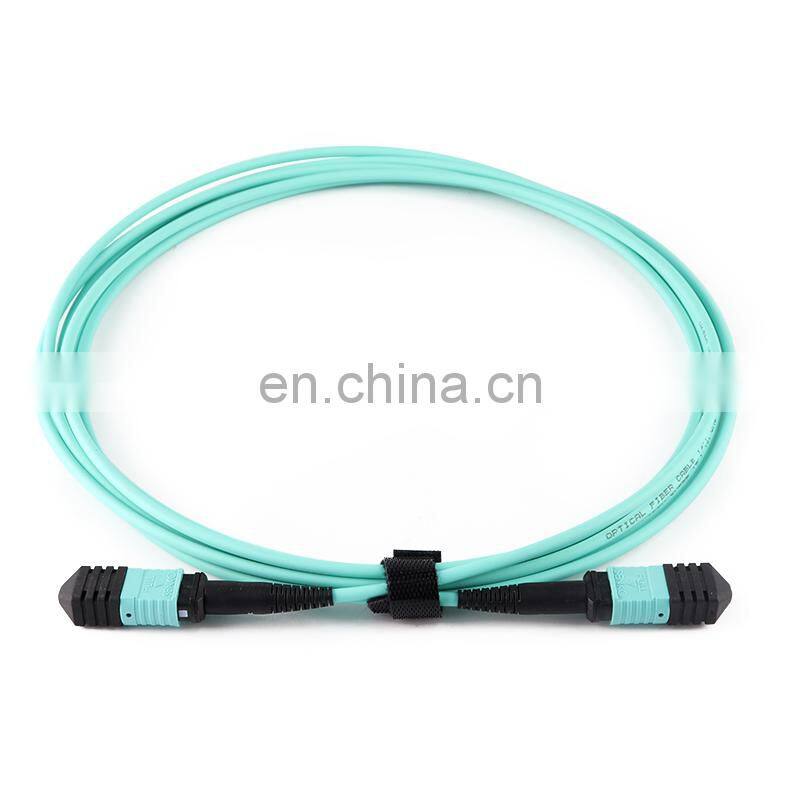

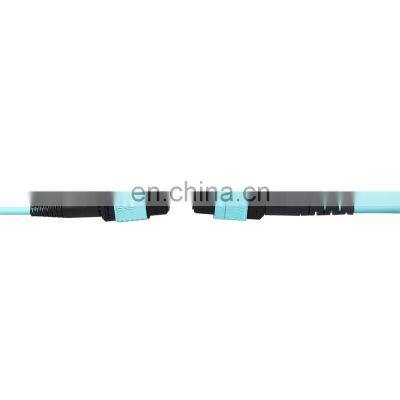

Factory Price MPO(f) to MPO(f) 12f LSZH 3.0m low loss Fiber Optic Patch Cord Mpo Trunk Cable
DYS MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Optical System Access network
Storage area networking fiber channel
High density architectures
FEATURES

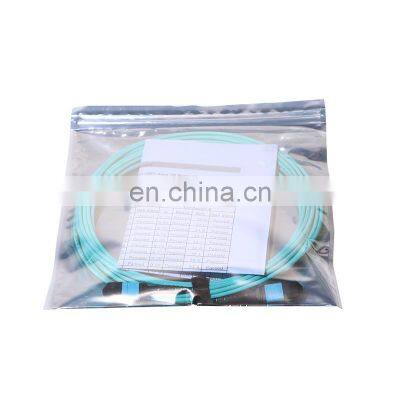

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Performance Level |
Standard |
Elite |
||||||||
Connector |
Mode |
Endface |
IL(max) (dB) |
RL(min) (dB) |
IL(max) (dB) |
RL(min) (dB) |
||||
MPO/MTP |
SM |
12F/APC |
≤0.70 |
≥60 |
≤0.35 |
≥60 |
||||
24F/APC |
≤0.75 |
≥60 |
≤0.35 |
≥60 |
||||||
48F/APC |
≤0.75 |
≥60 |
||||||||
MM |
12F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
|||||
24F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
||||||
48F/PC |
≤0.50 |
≥20 |
||||||||
