Fiber optic MPO breakout fiber cable mpo to lc
- 1000 per Month
- T/T Credit Card
- 12 Fiber Trunk Cable OM3 MTP to MTP Push Pull Tap Connector Patch Cord
- QSFP+ to SFP+ OS2 OM3 OM4 MPO MTP fiber optic fanout cable
- MPO to LC Breakout Harnesses Cable MPO to LC Cable Fanout MPO-LC Patch Cord
- MPO Trunk Cable, 12 Core MPO Patch Cord, OM3 MTP/ MPO Cable
- 12 24 Fiber Optical MTP/MPO Loopback tester
- data center mpo patch cable 8/12/24 core mpo/mtp
Product Description

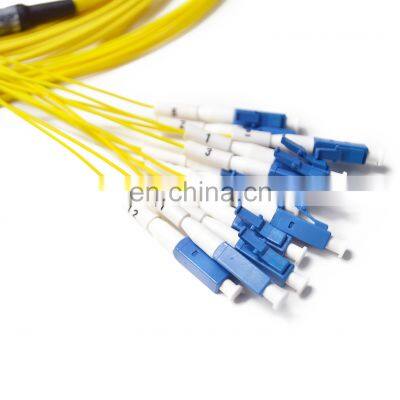

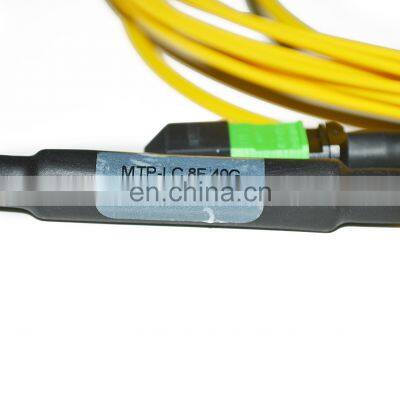

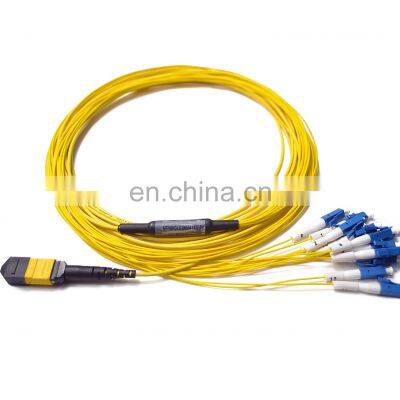

Fiber optic MPO breakout fiber cable mpo to lc
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Applications
1.Data communication network
2.Optical system access network
3.Storage area network fiber channel
4.High density architectures
Features and benefits
1.Utilize MPO/MTP connectors
2.Rapid deployment
3.Factory terminated
4.100% tested (test data supplied)
5.High-density cable
6.Optimized performance
7.Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
8.MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
Technical Parameter
Model | SM | MM | |
Connector A:MPO/MTP | |||
Connector Fiber Count | 8,12,24,48 Core | ||
Polish | PC,APC | PC | |
Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
Elite Low Loss | ≤0.35dB | ≤0.30dB | |
Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
Durability(500 Matings) | ≤0.2dB | ||
Test Wavelength | 1310/1550nm | 850/1300nm | |
Connector B:LC,LC Uniboot,SC,FC,ST | |||
Polish | PC,APC | PC | |
Insertion Loss | ≤0.2dB | ≤0.2dB | |
Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
Durability(500 Matings) | ≤0.2dB | ||
Test Wavelength | 1310/1550nm | 850/1300nm |
Fiber Color Code
Polarity
MPO/MTP Patch panel
MPO/MTP 12/24 Fiber Cassette
Fan-out MPO-LC cable for cassette
MPO/MTP Loopback
Waterproof MPO Cable assembly (IP67)
1PC / bag , 130PCS / Ctn , Size of Ctn : 44*44*38cm, Gross weight :12.5kg ( For 10M length)
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
