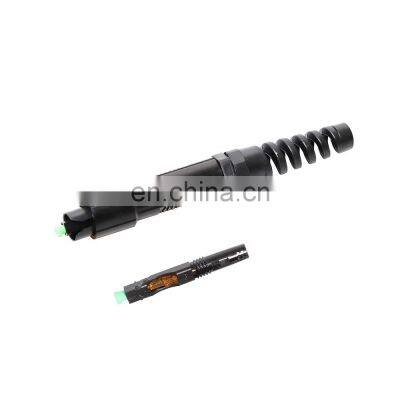

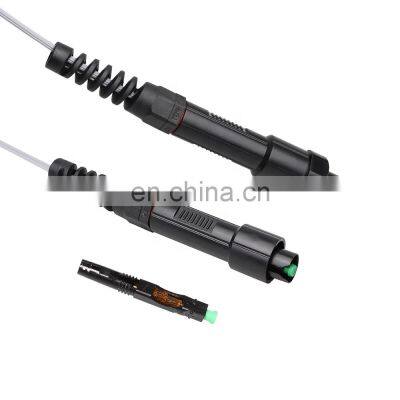

Outdoor Fiber Optic SC Connector Compatible Huawei Mini SC Jumper SC Mini Fast Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC/APC Outdoor Hardened Optical Adapter Mini SC Waterproof Fiber Optic Adapter For HuaweiNegotiableMOQ: 1 -
Waterproof Fiber Optic Adapter Outdoor IP68 SC Mini Type for Fibre Splice EnclosureNegotiableMOQ: 1
-
IP68 Outdoor Waterproof OptiTap Adaptador SC/APC Corning OptiTap AdapterNegotiableMOQ: 1
-
Outdoor Waterproof OptiTap Connector FTTH Fiber Optic Drop Cable Patch CordNegotiableMOQ: 1
-
FTTH SC Connector Drop Cable Dielectric/Tonable Ftth Ip68 Drop Cable AssembliesNegotiableMOQ: 1
Product Description
Outdoor Fiber Optic SC Connector Compatible Huawei Mini SC Jumper SC Mini Fast Connector
Applications
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.
Features
1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. IP68 water and dust protection.(1M,1 hour)
5. Spiral clamping mechanism ensures long-term reliable connection.
6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
7. Low operating temperature: - 10 ℃ ~ + 70 ℃
8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
Item |
Parameter |
Cable Scope |
Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters |
Size |
51*9*7.55mm |
Coating Diameter |
250μm |
Mode |
SM |
Operation Time |
about 15s(exclude fiber presetting) |
Insertion Loss |
≤ 0.3dB(1310nm & 1550nm) |
Return Loss |
≤ -50dB for UPC, ≤ 55dB for APC |
Success Rate |
>98% |
Reusable Times |
>5 times |
Tighten Strength of Naked Fiber |
>5 N |
Tensile Strength |
>30 N |
Temperature |
-40 ~ +85 C |
Drop Test |
IL ≤ 0.3dB |
