Product Description

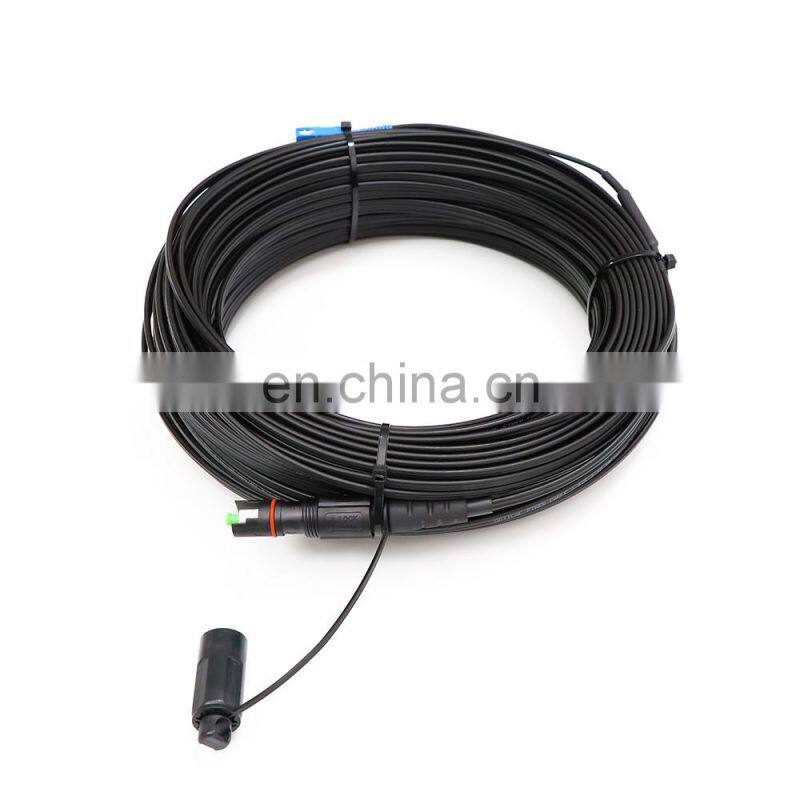

FTTH STAP Connector Drop Cable Dielectric/Tonable ftth ip68 drop Cable Assemblies
STAP cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. STAP cable assembly provides quick installation solutions and has good performance on mating with STAP adapter. Cable can be amored or non-amored. STAP connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.
Features
1. Provides moisture and dust protection for use in harsh industrial environments.
2. IP68 protection, salt-mist proof, humidity proof, dust proof.
3. Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
4. Utilize traditional field installation techniques for aerial, below ground and duct applications.
5. Reduce installation time by as much as 50 percent per network access point.
6. 100% optically tested to ensure quality performance assemblies.
7. Available in single mode and multimode styles to work with any common fiber type.
8. Broad temperature range (-40 to+ 85°C) is ideal for indoor or outdoor applications.
9. Mark on dust cap can help people who cannot distinguish between colors to operate.
Standards |
Comply to GR-3120, GR-3152, IEC 61753-1, |
Insertion Loss(STAP /SC&LC) |
Max.0.5dB, Mean 0.15dB(8° angled) |
Insertion Loss(STAP /MPO) |
Max.0.6dB, Mean 0.35dB(8° angled) |
Insertion Loss |
Min 60dB(8° angled) |
Return Loss |
Min 60dB(8° angled) |
Operation Temperature |
-40to 85°C |
Storage Temperature |
-40 to 85°C |
Cable Dimension |
5.0mm, 7.0mm or 4.5*7.0mm flat |
Dust Cap Max. Pulling Force |
100Ib |
Water Resistance |
IP68 |
