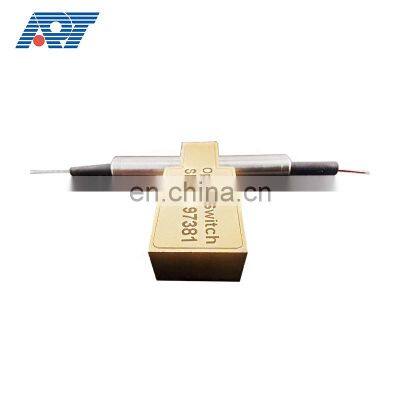

Help CenterLatching and Non-latching 1x2 Optical Fiber Switch
Related Products
-
Fusion Splicer Fttx ,Optical Fiber Fusion Splicing Machine AI-7NegotiableMOQ: 1 -
Fiber Cutting Tools 6C Fiber CleaverNegotiableMOQ: 1
-
Telecommunication Optic Cable Storage TrayNegotiableMOQ: 1
-
Stainless Steel Fastening HookNegotiableMOQ: 1
-
Ftth Fiber Optic Tool Kit With Power Meter Visual Fault Locator Fiber Cleaver Miller Cramper And FTTH StripperNegotiableMOQ: 1
Carrier grade network jumperLC-UPC duplex fibre optical patch cord color code
1.Features
♦Low Insertion Loss
♦Wide Wavelength Range
♦Low Crosstalk
♦High Stability, High Reliability
♦Epoxy-free on Optical Path
♦Latching and Non-latching
2.Applications
♦R&D in Laboratory
♦System Monitoring
♦OADM
♦MAN (Metropolitan Area Network)
3.Specifications:
| Parameters | Unit | GY-FSW-1*2 | |
| Wavelength Range | nm | 1260-1650 | |
| Test Wavelength | nm | 1310/1550 | |
| Insertion Loss 1,2 | dB | Type:0.6 | Max:0.8 |
| Return Loss 1,2 | dB | SM≥50 | |
| Crosstalk 1 | dB | SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Operating Voltage | V | 3.0 or 5.0 | |
| Durability | Cycles | ≥10 Million | |
| Switching Time | ms | ≤8 | |
| Optical Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Relative Humidity | % | 5~95 | |
| Weight | g | 14 | |
| Dimension | mm | (L)27.0*(W)12.0*(H)8.2±0.2 or Customer design | |
| Note: 1.Within operating temperature and SOP.2.Excluding Connectors | |||
4. Pin Configurations:
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
Welcome OEM&ODM
