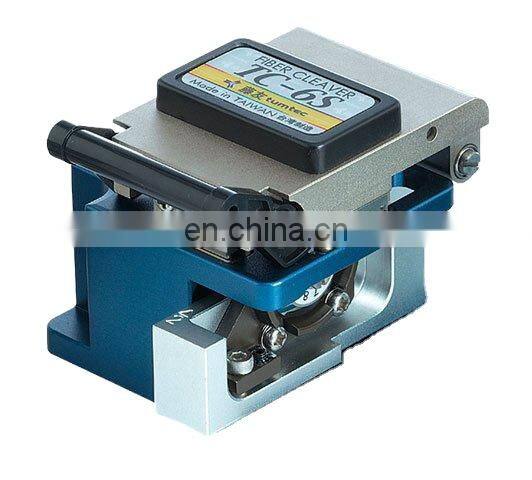

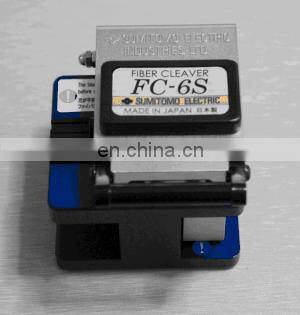

Fiber Cutting Tools 6C Fiber Cleaver
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Telecommunication Optic Cable Storage TrayNegotiableMOQ: 1 -
Stainless Steel Fastening HookNegotiableMOQ: 1
-
Ftth Fiber Optic Tool Kit With Power Meter Visual Fault Locator Fiber Cleaver Miller Cramper And FTTH StripperNegotiableMOQ: 1
-
FTTH Fiber Optical Node Optical ReceiverNegotiableMOQ: 1
-
CATV GEPON 8 16 32 64 Ports WDM EDFA Wdm for CatvNegotiableMOQ: 1
1.Features:
Small size, lightweight, and easy handling Applicable up to 12-fibre ribbon cleaving Fibre collector equipped as standard 2-action operation including fibre scrap collection
2.Operation:
Push back blade -> Set fibre -> Close body Blade speed and anvil speed are mechanically controlled Blade is common to 6C series cleavers 16 rotating positions, 3 height positions Blade life is same as 6C series cleavers, 48,000 cleaving
3.Data sheet
|
Applicable fibers |
Silica optical fiber |
|
Bare fiber diameter |
125µm |
|
Cleaving angle |
0.5 degrees at single fiber |
|
Blade positions |
3 height and 16 rotating positions |
|
Blade life |
48,000 fibers (1,000 fibers x 3 height x 16 positions) |
|
Dimensions |
102W × 82D × 46H (mm) |
|
Weight |
180g |
