FTTH Fiber Optical Node Optical Receiver
- 1000 per Month
- T/T Credit Card
Product Description
OR19 Series Optical Receiver Instructions
I.Applications
The OR19 optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (Fiber to the Home) network optical fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. Among them OR19 is based on WDM as the main push product, and it is a home-based equipment tailored to realize triple play.
II.the performance characteristics
- RF channel full GaAs low noise amplifier circuit. Digital signal can satisfy -18dBm reception, analog signal minimum meet -10dBm reception;
- With light input AGC (AGC range can be customized according to the user);
- Anti-high frequency surge device protection, GaAs amplification chip;
- Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the power supply. The overall power consumption is less than 2W, with a light detection circuit;
- FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface (customizable according to customer requirements);
- Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, to ensure the safe operation of the equipment;
- It can realize the power supply mode of output feed.
III.Technical indicators
CATV Working wavelength |
1200~1600nm&1550nm |
Carrier to noise ratio |
≥51dB |
Input optical power |
0dBm~-10dBm(Analog signal) |
CTB
|
≥65dB |
0dBm~-18dBm(Digital signal) |
CSO |
≥62dB |
|
Light reflection loss |
>45 dB |
Host voltage |
DC5V |
Optical connector form |
FC/APC or SC/APCor FC/PC or SC/PC |
Infeed voltage |
DC5V |
Frequency Range |
40~862MHz |
Adapter voltage |
AC90V~145V or AC145V~265V |
In-band flatness |
±1dB@45~862MHz |
Power consumption |
<2W |
RF output reflection |
≥16dB@ 47~550MHz;≥14dB@550~862MHz |
Operating temperature |
-20℃ ~+45℃ |
Output level |
(78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm) |
Package Size |
315*242*110mm(10pcs) |
RF output impedance |
75Ω |
FCL product weight |
1.78kg(10pcs) |
AGC range |
(0~-9)dBm(default)/(-3~-12)dBm/(-6~-15)dBm |
|
|
Note: Test conditions: 59 PAL-D analog TV channel signals in the 550 MHz frequency range and digital modulation signals in the 550 MHz to 862 MHz frequency range (8 MHz) under specified link loss conditions Within the bandwidth, the carrier level of the analog signal is 10 dB lower, and the optical receiver input optical power is 0 dBm, measuring C/N, CTB, and CSO.

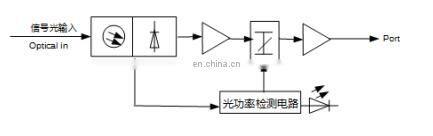

IV.the principle diagram

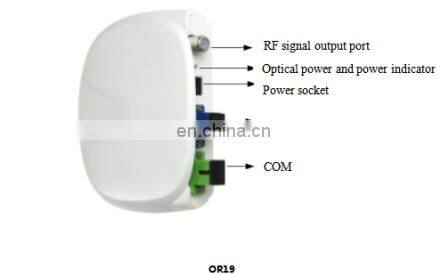

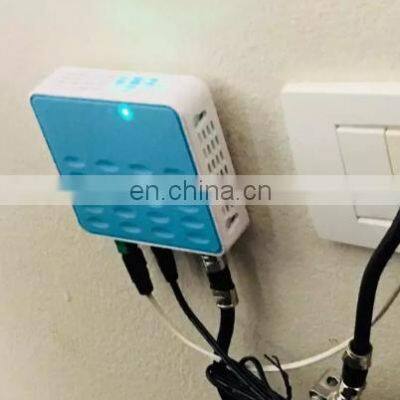

V. Product Description
VI. model description

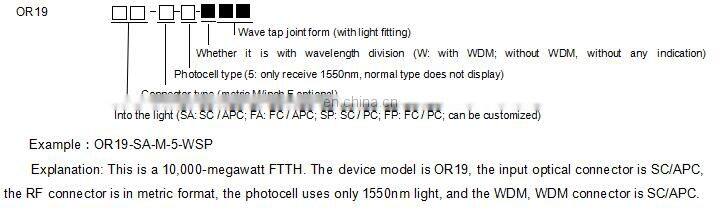

FTTH-OR19 series light receiving product nomenclature: RF single output of this product, PIN tube only with pigtail style, add WDM.
OR19-Optical Connectors - RF Connectors - Photocell Types - Wavelength - Wave Taps (black boxes are not written when order is not required)
VII. product maintenance
The warranty period for our company's equipment is one year. The company is responsible for the maintenance of the product for life. The equipment outside the warranty period will be charged with certain materials, maintenance and transportation costs.
The company does not assume any legal liability for any direct or indirect damage to the device or any consequential liability arising from improper use of the product by the user or the ability to make changes or force majeure on the product itself.
