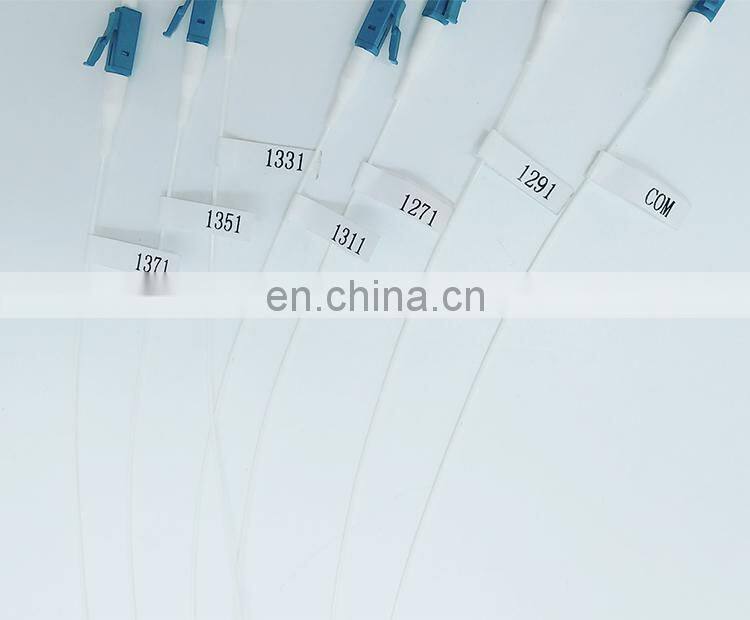

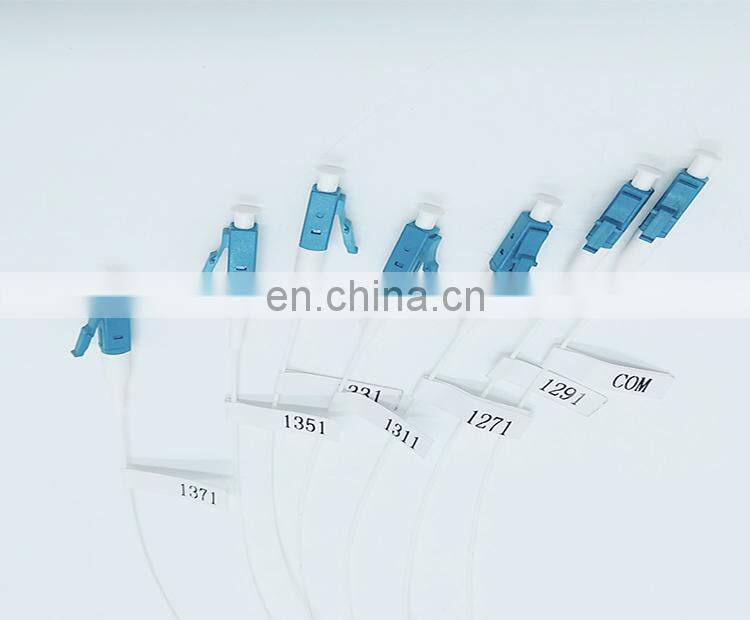

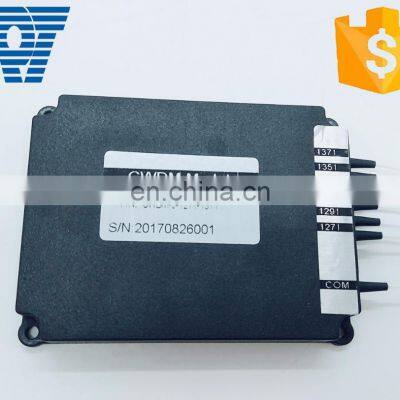

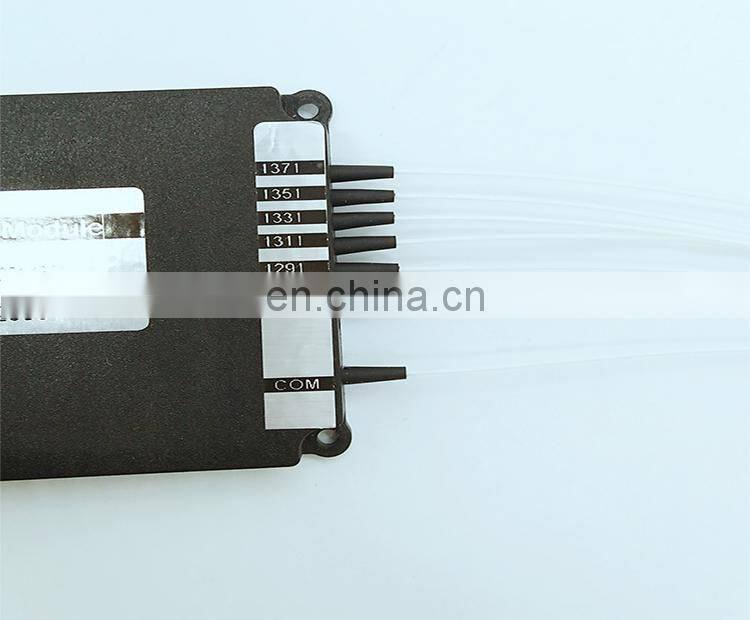

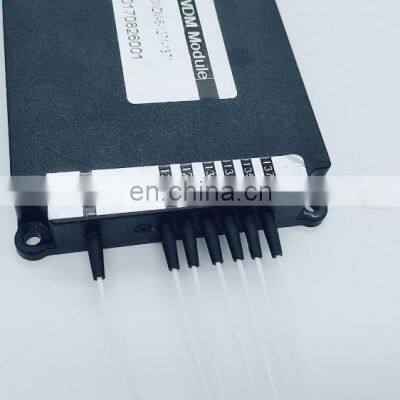

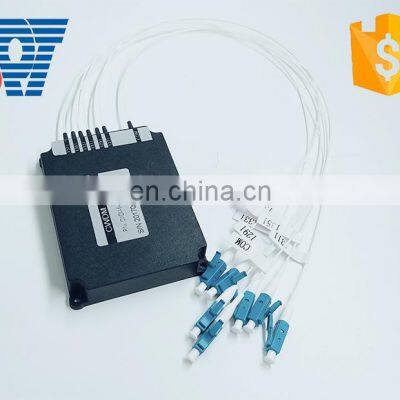

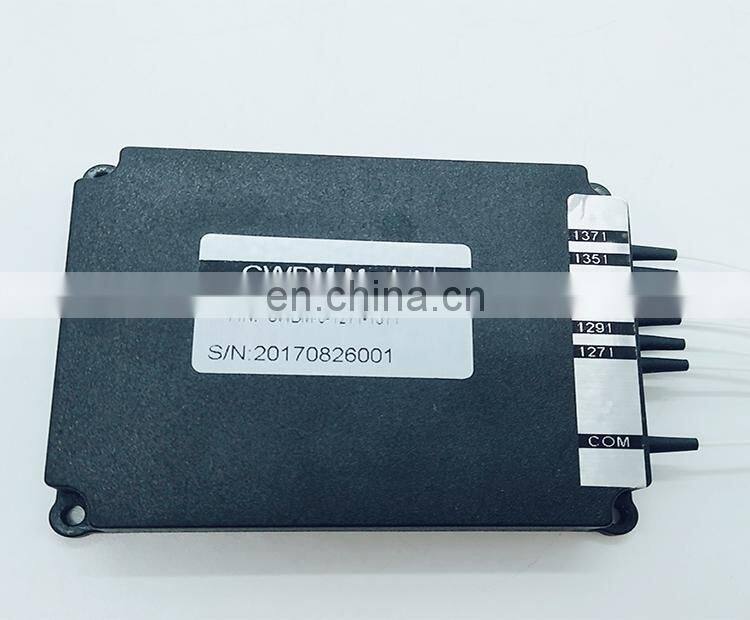

Help CenterFiber Optic CWDM 6CH CWDM Mux/Demux Module With 6 LC SC /UPC APC Adapter/connector
Related Products
-
Max,DMux CWDM 8ch,WDM/FWDM/CWDM With Manufacture Price, ABS Box lc Upc Connector,NegotiableMOQ: 1 -
FWDM 1310/1490 1550nm/High Isolation/PON WDMNegotiableMOQ: 1
-
Mux Demux Frame Type WDM/CWDM/FWDM With Lc/upc ConnectorsNegotiableMOQ: 1
-
2020 Efficient Good Price WITH SC/upc-apc 1310-1610nm Cwdm Fwdm 8 Abs Mux DwdmNegotiableMOQ: 1
-
High Performance Good Price Fiber Optic Equipment Wdm Cwdm DwdmNegotiableMOQ: 1
sc upc apc gpon fiber optic plc splitter with manufacture price
Welcome OEM & ODM
1.Specifications
| Parameter | Value | ||
| CWDM Channels Number | 4 | 8 | |
| Operation Wavelength (nm) | 1470~1610 OR 1471~1611 | ||
| Center wavelength accuracy (nm) | ± 0.5 | ||
| Channel Spacing (nm) | 20 | ||
| Passband (@-0.5dB bandwidth)(nm) | ±7 & ±6.5 | ||
| Insertion Loss(dB) | 1.5 | 2.5 | |
| Pass band Flatness(dB) | 0.3 | ||
| Isolation(dB) | Adjacent Channel | 30 | |
| Non-adjacent Channel | 45 | ||
| Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
| Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
| PDL (dB) | <0.10 | ||
| PMD (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | 0 ~ +65 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L100×W80×H10 | ||
- Ordering:
| SCWDM | |
| Channels Number | 4=4 Channels, 8=8 Channels |
| Application Type | M=Mux, D=DeMux |
| Central Wavelength | 510=1510nm |
| 530=1530nm | |
| 550=1550nm | |
| 570=1570nm | |
| …… | |
| Fiber diameter | 1=bare fiber, 2=900um loose tube |
| Fiber Length | 1=1 Meter, 2=2 Meter |
| Connector | 0=None, 1=FC/APC, 2=FC/PC, 3=SC/APC |
| 4=SC/PC, 5=ST, 6=LC |
2.Features
- Low insertion loss
- Broadband transmission
- High isolation
- High stability and reliability
- Epoxy glue
3.Applications:
-
- Metro/Access networks
- WDM system
- Fiber optical amplifier
- CATV system
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 12 years experience in this field. We are the prefessional supplier that you can trust.
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
