High performance good price Fiber Optic Equipment wdm cwdm dwdm
- 1000 per Month
- T/T Credit Card
-
Fiber Optic Equipment 1310/1490/1550 wdm dwdm
-
cwdm 1310/1490/1550nm optical filter cwdm 12 CH MUX
-
fiber optic communication equipment optical fiber WDM isolator hybrid filters 1650nm optic fiber wdm
-
sc/apc/upc cwdm dwdw wdm fiber optic multiplexer
-
Fwdm 1310/1490/1550nm fiber optic wdm fwdm cwdm mux demux cwdm 1550
-

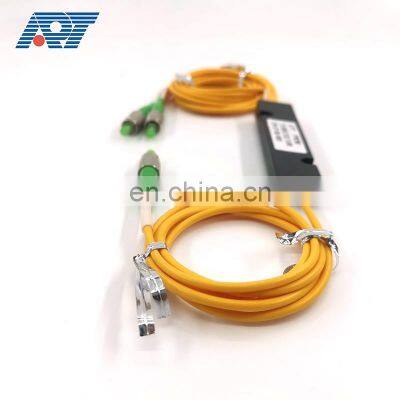

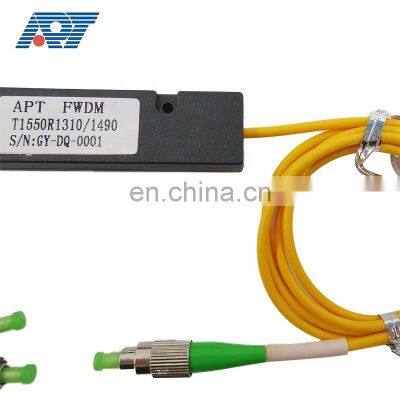

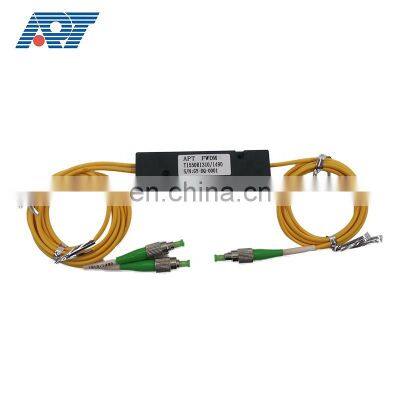

CHINA Top manufacturer T1550R 1310/1490 ABS BOX FWDM
Product Description
High performance good price WITH SC/upc-apc 1310-1610nm cwdm fwdm 8 abs mux dwdm
1.Product Introduction
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.
2.Features
♦Low Insertion Loss
♦High Channel Isolation
♦Optical path epoxy free
♦Excellent thermal stability and reliability
♦Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
3.Application
♦DWDM Network
♦Add/Drop System
♦CATV Fiberoptic System
♦Metro/Access Network
♦Fiber Optical Amplifier
4.Technical Specifications:
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||||||
| Channel Wavelength(nm) | 1270~1610 | ||||||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||||||
| Channel Spacing(nm) | 20 | ||||||||||
| Channel Pass band(@-0.5dB bandwidth (nm) | >14 | ||||||||||
| Insertion Loss(dB) | ≤1.4 | ≤2.6 | ≤5.0 | ||||||||
| Channel Uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||
| Channel Ripple (dB) | 0.3 | ||||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||||||
| Polarization Mode Dispersion (PS) | <0.1 | ||||||||||
| Directivity (dB) | >50 | ||||||||||
| Return Loss(dB) | >45 | ||||||||||
| Maximum Power Handling(mW) | 500 | ||||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||||
| Storage Temperature (℃) | -40~85 | ||||||||||
| Package dimension(mm) | 1.L100 x W80 x H10 ( 2 CH~8CH Module) | ||||||||||
| 2.L120xW800xH18 (9 CH~18CH Module) | |||||||||||
Remark: Above is without connectors,if with connectors,add more 0.2dB.
5.Order Information:
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimensio(mm) | Connector |
| M=Mux D=Demux |
04=4 Channel 08=8 Channel 16=16 Channel
N=N Channel |
27=1270nm 47=1470nm 49=1490nm … 61=1610nm SS=special… |
0=250um 1=900um 2=2.0mm |
1=1m 2=1.5m 3=others |
1=L100 x W80 xH10 2=L120xW80xH18 3=19 1U Rack |
0=None 5=other |
Welcome OEM&ODM
