Product Description

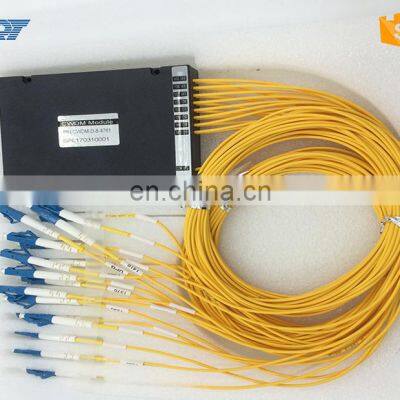

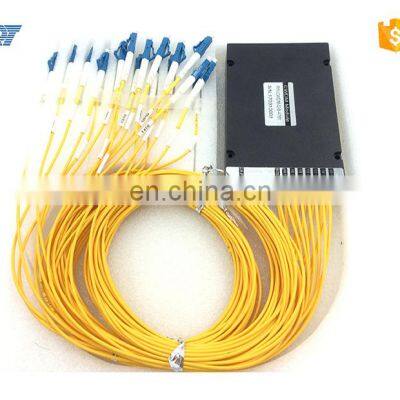

Filters 8CH 16CH CWDM , 1x16 CWDM Multiplexer ,wdm splitter
Welcome OEM & ODM
Product Description
QINGDAOAPT offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.
QINGDAO's Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
Our CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.
Features
♦ Low Insertion loss
♦ Wide Wavelength Range
♦ Low Crosstalk
♦ High Stability, High Reliability
♦ Epoxy-free on Optical Path
♦ Latching and Non-latching
Applications
♦ Line Monitoring
♦ WDM Network
♦ Telecommunication
♦ Cellular Application
♦ Fiber Optical amplifier
♦ Acess Network
Technical Specifications
Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||||
Mux | Demux | Mux | Demux | Mux | Demux | ||||||
Channel Wavelength(nm) | 1270~1610 | ||||||||||
Center wavelength Accuracy(nm) | ±0.5 | ||||||||||
Channel Spacing(nm) | 20 | ||||||||||
Channel Pass band(@-0.5dB bandwidth (nm) | >14 | ||||||||||
Insertion Loss(dB) | ≤1.4 | ≤2.6 | ≤5.0 | ||||||||
Channel Uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||
Channel Ripple (dB) | 0.3 | ||||||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||
Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||||||
Polarization Mode Dispersion (PS) | <0.1 | ||||||||||
Directivity (dB) | >50 | ||||||||||
Return Loss(dB) | >45 | ||||||||||
Maximum Power Handling(mW) | 500 | ||||||||||
Operating Temperature(℃) | -5~+75 | ||||||||||
Storage Temperature (℃) | -40~85 | ||||||||||
Package dimension(mm) | 1. L100 x W80 x H10 ( 2 CH~8CH Module) | ||||||||||
2. L120xW800xH18 (9 CH~18CH Module) |
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 12 years experience in this field. We are the prefessional supplier that you can trust.
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
