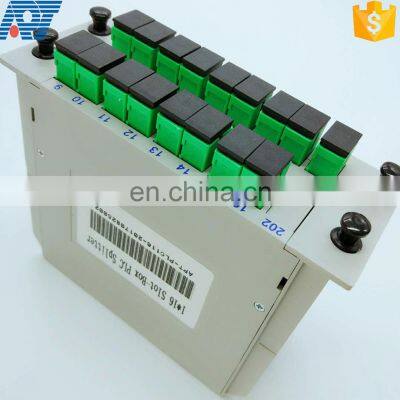

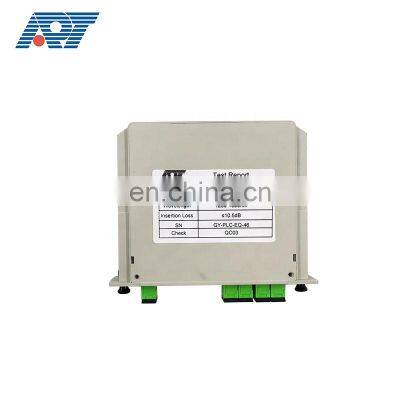

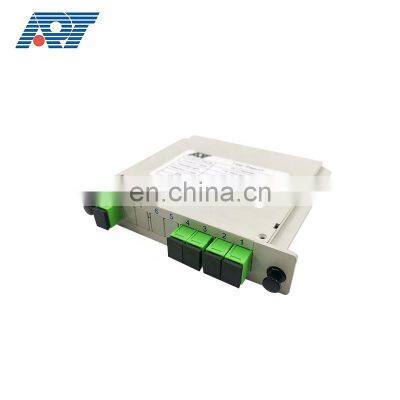

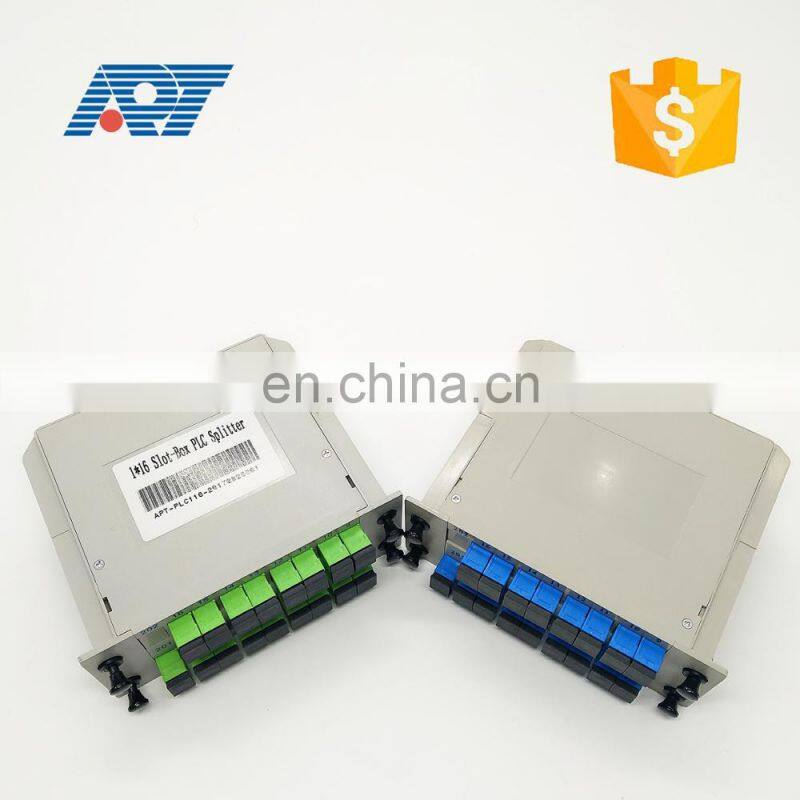

Hot Sale 1/2/4/8/16/32/64 PLC Splitter factory with low price
1. Product Information
PLC splitter is a kind of Quartz Substrate-based integrated waveguide optical power output distribution component. It is one of the most important passive optic devices in optic fiber link. Our PLC Splitters are featured with small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. They are widely used in PON networks to realize optical signal power splitting. We offer 1*N & 2*N splitters that are tailored for specific applications. FC/ SC/APC/UPC are available, and others could be customized. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
2.Technical Data
| Parameter | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | ||
| 1 | Working bandwidth(nm) | 1260-1650 | |||||
| 2 | Insertion Loss (dB) | Maximum | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
| 3 | Polarization Dependent Loss (dB) | Maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| 4 | Return Loss (dB) | Minimum | 45(PC) ;50(UPC); 55( APC) | ||||
| 5 | Spectral Uniformity (dB) | Maximum | 0.7 | 0.8 | 1.0 | 1.5 | 2.0 |
| 6 | Directivity(dB) | Minimum | 55 | 55 | 55 | 55 | 55 |

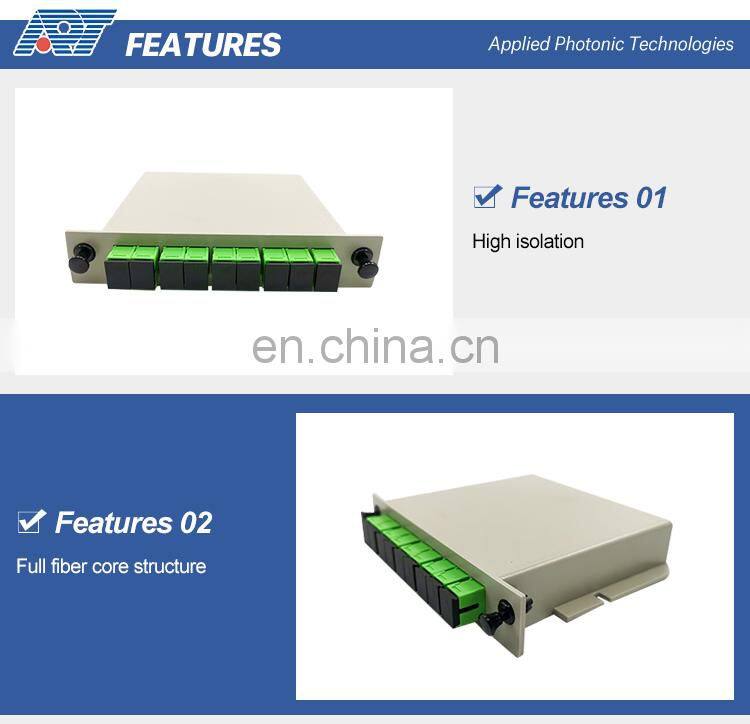

3. Features:
1.Various types.1*N& 2*N are available
2.Can be continuously covered with different fibers;
3.Full fiber core structure
4. Can be resued
5.Low additional loss
6.Low insertional loss
7.Wide operating wavelength
8. High reliability and Stability
4. Application:
1. Optical signal distribution
2 .Data communication
3. LAN and CATV system
4. FTTX Deployment
5. FTTH Network
6. Passive Optical Network(PON)
7. Measuring system and Laser system
8. DWDM and CWDM systems
Our Services:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 18 years experience in this field. We are the prefessional supplier that you can trust.
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q4: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
Welcome OEM & ODM
