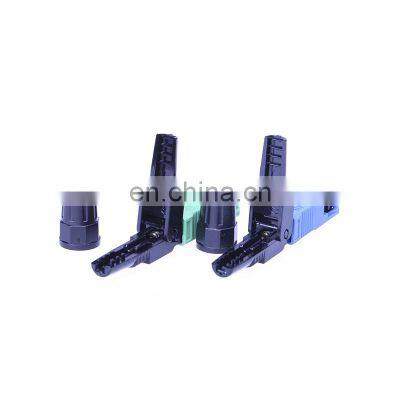

high quality fast connector SC/ APC SC/UPC
1.Description
Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
2.Features
♦Factory-installed fiber stub
♦No epoxy or polishing required
♦Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage
♦Eliminates cable excess length and pigtail splicestorage
♦Cost effective
♦Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
3.Specifications:
| Fast Connector Specification | |||
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
Welcome OEM&ODM
