Home > Products > Fiber Optic Flange > FTTH Blue Fiber Optic Fast Quick Connector SC UPC Single Mode Fiber Optical SC Fast Connector

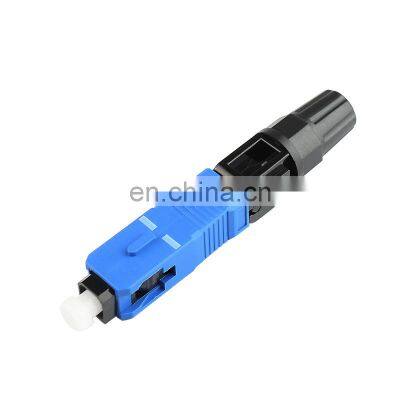

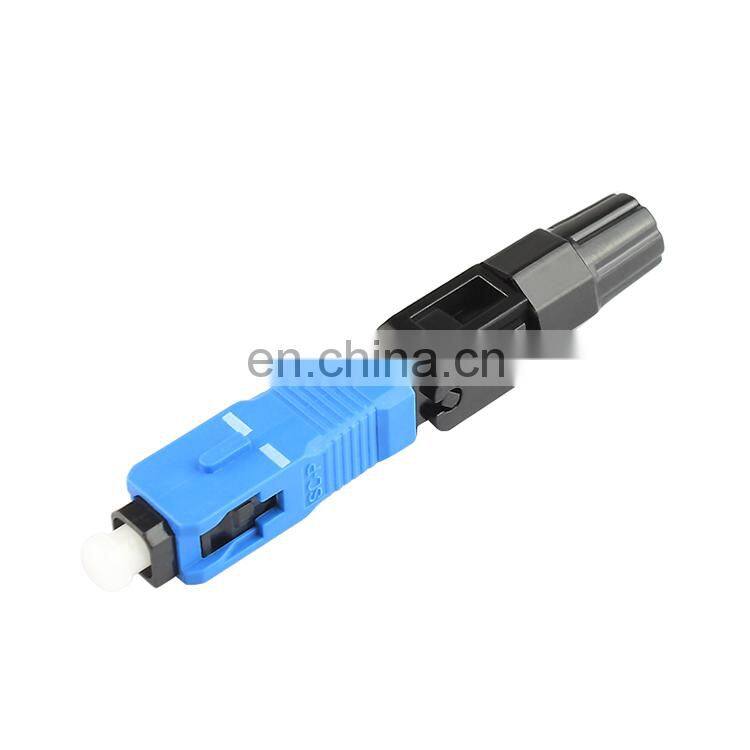

FTTH Blue Fiber Optic Fast Quick Connector SC UPC Single Mode Fiber Optical SC Fast Connector
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
FTTH Single Mode Fiber Optic SC APC Quick Connector Fiber Optic SC APC Fast Connector
-
Cheap Price New Type SC UPC APC FTTH Optic Fiber Fast Connector
-
LC-FC Flange Coupler Fiber Adapter LC/UPC Female to FC/UPC Male Fiber Optic Hybrid Adapter
-
SC to LC Fiber Optic Adapter SC-LC Hybrid Fiber Optical Adapter
-
FTTH SC APC Single Mode Fiber Optic SC APC Quick Connector SC APC Fiber Optic Fast Connector
-
Tanghu Single Mode Fiber Optic Flange Coupler Simplex ST -FC Optical Fiber Adapter
Product Description
Product Description
Parameters | Specifications | ||
Connector Type | SC/LC/FC/ST | ||
Dimension | 60mm | ||
Cable Diameters | 0.9/2.0/3.0mm | ||
Fiber Mode | SM/MM | ||
Grinding end-face | UPC/APC | ||
Insertion Loss | UPC | APC | |
≤0.3dB | ≤0.3dB | ||
Return Loss | UPC | APC | |
≥45dB | ≥50dB | ||
Tension Test | ≥100N | ||
Operating Temperature | -40℃~+75℃ | ||
Product Features
1 Alignment in the inner bore of the ceramic ferrule - high precision alignment
2.C-shaped groove takes the palce of V-shaped groove.
3.Ceramic has low thermal coefficient of expansion - working temperature is ranging from -40 ℃ to +85 ℃
4.Ceramic has high rigidity - connection point without deformation
5. Ceramic has good property—long lifetime
6. Easy assembly and high one-time assembly success rate
7.High lifetime, easy assembly, high reliability and high return loss
8. The quick assembly fiber connector can be assembled and disassembled for many times.
9.Super high one-time assembly success rate

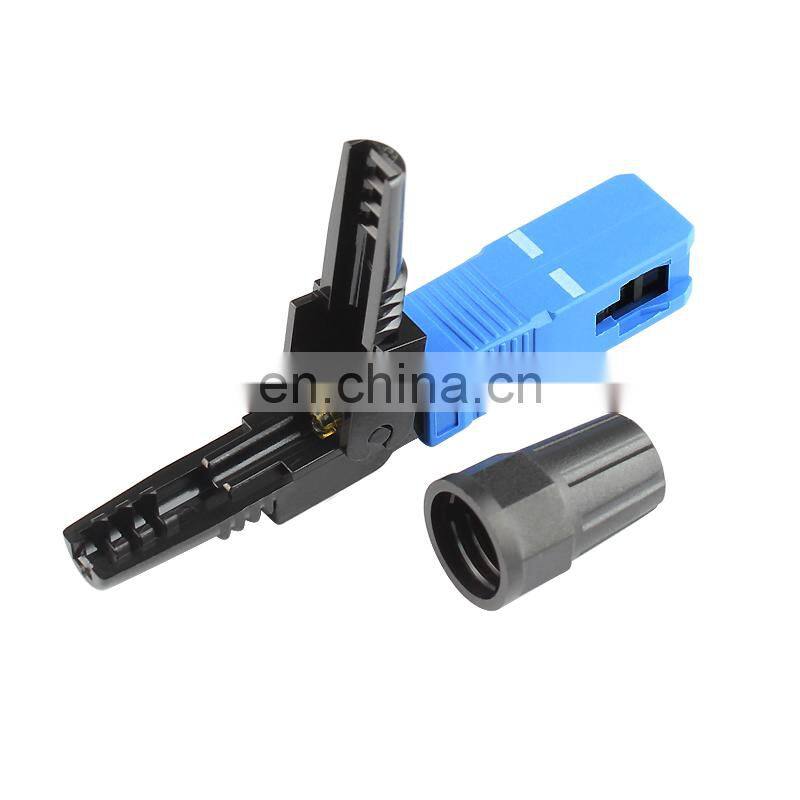

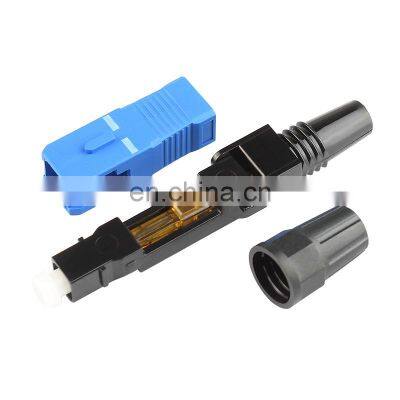

10. The SC fast connector is made of special material. Fibers alignment is done in the inner bore of the ceramic ferrule and
fibers are locked by the locker.
Application
1.CATV
2.Active device termination
3. Telecommunication networks
4.Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9.Wide Area Networks(WANs)
1 Alignment in the inner bore of the ceramic ferrule - high precision alignment
2.C-shaped groove takes the palce of V-shaped groove.
3.Ceramic has low thermal coefficient of expansion - working temperature is ranging from -40 ℃ to +85 ℃
4.Ceramic has high rigidity - connection point without deformation
5. Ceramic has good property—long lifetime
6. Easy assembly and high one-time assembly success rate
7.High lifetime, easy assembly, high reliability and high return loss
8. The quick assembly fiber connector can be assembled and disassembled for many times.
9.Super high one-time assembly success rate
10. The SC fast connector is made of special material. Fibers alignment is done in the inner bore of the ceramic ferrule and
fibers are locked by the locker.
Application
1.CATV
2.Active device termination
3. Telecommunication networks
4.Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9.Wide Area Networks(WANs)
Related Products
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000m2, with more than 500 employees and annual sales of more than 300 million RMB.Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000m2, with more than 500 employees and annual sales of more than 300 million RMB.Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery serivce. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
