TTX-2411K100 Small Package X-Ray Machine Inspection System For Small Packaged Small Package X-Ray Machine
TONEDO Small Package X-Ray Machine Description
Application:
It is suitable for the detection of small package products such as biscuits, potato chips, baby food, medicines, etc.
Main function:
Data can be exported: The system can export the production information as a spreadsheet and connect it with the SPC system. To
Animation live broadcast: The system supports FEMA connection. The animation completely simulates the actual performance in the form of animation, which is convenient for tracking any abnormal activities. To
Auto-save: The system will automatically save the detected pictures for easy comparison.
Comprehensive Software: The system has advanced shielding function, optimizing the inspection sensitivity, and inspecting quality defects in products.
Features:
Safe and Reliable: X-ray leakage is less than 1µSv/hour which is complying America FDA Standards and Europe CE Standards. The X-ray radiation is much less than 1Gy that is extremely safe for people.
Designed Complete Shielded Structure: It can prevent leakage accident caused by users’ wrong operation.
Friendly Operation Interface: The X-ray inspection system is with 17inches full colour touch screen, easy to use.
Automatically Save Detecting Parameters: Users do not need to set data by themselves. The images will be stored automatically, in order to ensure product safety and quality control.
Easy Cleaning And Maintenance: Detachable structure makes cleaning easy.
IP Rate: IP66 for detecting tunnel, IP54 for rest of the body for harsh washdown environments.
Strong Environmental Adaptability: The X-ray inspection system is equipped with industrial air conditioner, which is capable of operating temperature from 0℃ to 40℃ suitable for tough environment.
Full-airtight Case: Sealing system to avoid water and dust, equipped with high performance dehumidifier device, which can endure high humidity up to 90%.
Top Grade Components, Class-leading Stability: All parts are from world famous suppliers, ensuring high performance and long life.

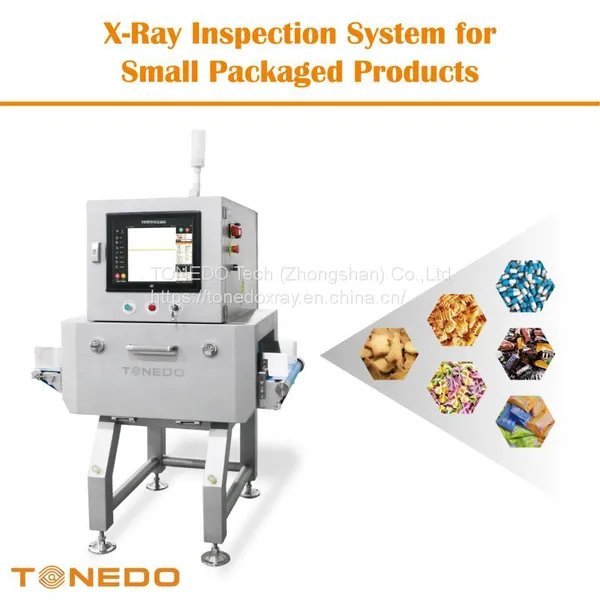

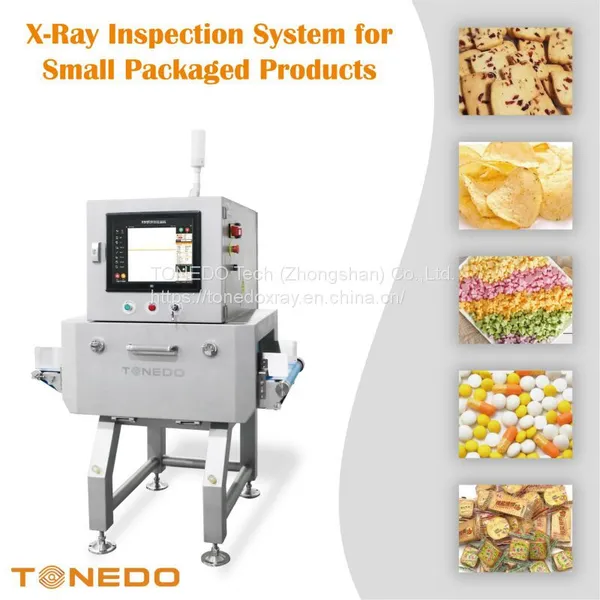

TTX-2411K100
X-Ray Inspection System for small packaged products
Technical Parameters
Model |
TTX-2411K100 |
X-Ray Generator |
150W 40-100Kv (Adjustable) |
Inspection Width |
240mm |
Inspection Height |
110mm |
Non-load Inspection Sensitivity |
Stainless steel ball Φ0.3mm Stainless steel wire Φ0.2*2mm Ceramic ball Φ1.0mm Glass ball Φ1.0mm |
Conveyor Speed |
10-70m/min. |
Display Screen |
17”full color touch screen |
Interface |
LAN Port, USB Port |
Working Environment |
Temperature: 0℃-40℃ (Cooling method: Industrial air conditioner) Humidity: 30%-90%, Preventing Dew (Dehumidification method: dehumidifier device) |
X-ray Leakage |
＜1μSv/hour |
Protection Mode |
Protective curtains (Detachable) |
Alarming System |
Alarm and machine stops (Rejecter is optional) |
Power Supply |
AC220V ±10% 50/60Hz, 1.5kVA Max |
IP Rate |
IP66 |
Main Material |
SUS304 |
Application |
Packaged and products in bulk |
Loading Capacity |
Standard: ≤5kg (On the whole conveying belt) |
