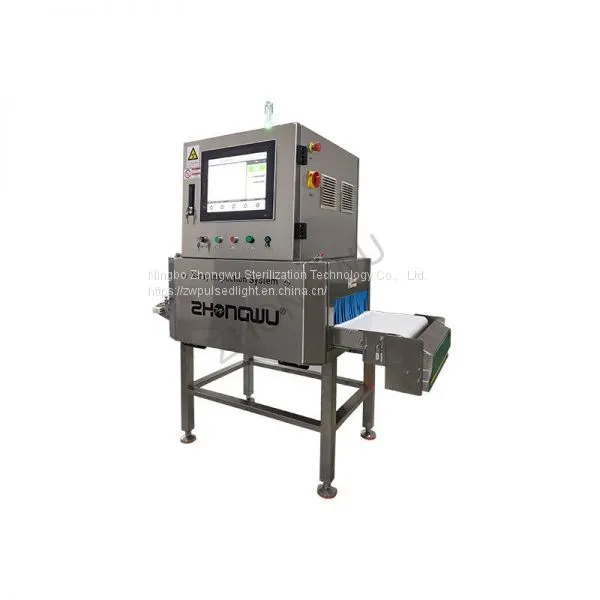

X-ray Inspection System
JNX series foreign object detection equipment is a single lane X-ray solution designed for the inspection of a wide range of contaminants (such as metal, plastic, glass, ceramics) in packaged or non-packaged products.
TECHNICAL DATA
Providing Customized Services
Equipment size (W×H×D, mm) | 1504×1462×545 Excluding tower lights |
Equipment weight (KG) | ≈260 |
Power supply | 220VAC, 50HZ Standby 0.3KW Normal 2KW |
Conventional bare machine metal detection sensitivity (mm) | SUS440C ball≥0.5mm; SUS304 line (length 2mm)≥0.3mm; Aluminum ball ≥ 1.5mm; Ceramic ball≥1.5mm |
Monitor | 15-inch color TFT LCD display, resistive touch screen |
Belt speed (m / min) | 10-30 |
Conveyor line height (mm) | 750±50 Other heights can be customized |
Level of Protection | IP30/IP54/IP65 |
X-ray leakage | ＜1μSv/h |
Relative humidity | ≤85% |
Environment temperature (℃) | 0-45 |
The whole series product is customizable to meet customer requirements.
x ray food inspection systems Working principle
The higher the relative density of the detected object and foreign matter, the easier it is to detect.
We are x ray food inspection systems manufacturer.
