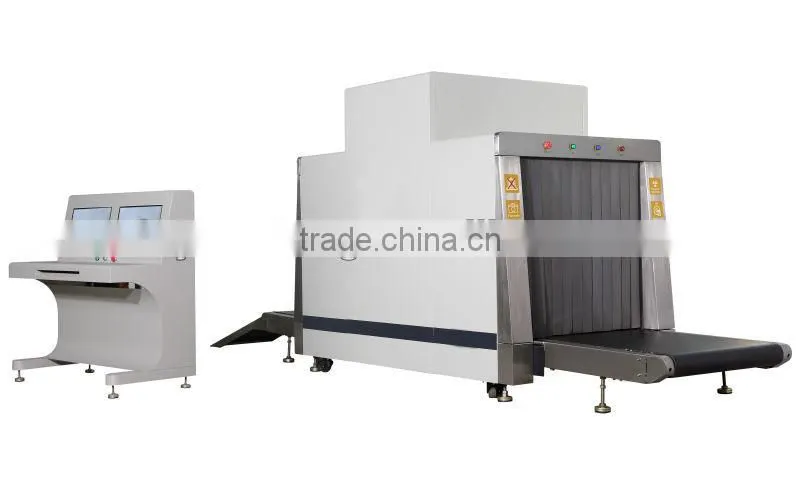

X ray Inspection Equipment,X-ray Machine (XJ100100)
Technical Specifications
Tunnel Size : 1000(W)×1000(H)mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption:1.0KW (Max)
Noise level:<58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 250 kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 38mm
Single inspection dosage: < 1.6μGy
Leakage radiation: <0.2µGy/h
Film Safety: Guarantee ISO1600 Film
X-Ray Generator Specifications
Voltage: 70-160kV (Adjustable)
Tube Current: 0.4 ~1.0mA (Adjustable)
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward
Beam Angle: 60°
Detector: L-shaped Array
Image Display
2* 19 Inch High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification:
Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, support multi-terminal check at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One key shutdown control: safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function
Environment Specifications:
Operating temperature/humidity: 0°C ~ 45°C/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20°C ~ 60°C/20% ~ 95% (Non-condensing)
(More details,please feel free to contact us on-line)
