5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable thumbnail-1
5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable thumbnail-2
5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable thumbnail-3
5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable thumbnail-4
5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable thumbnail-5
5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable photo-1

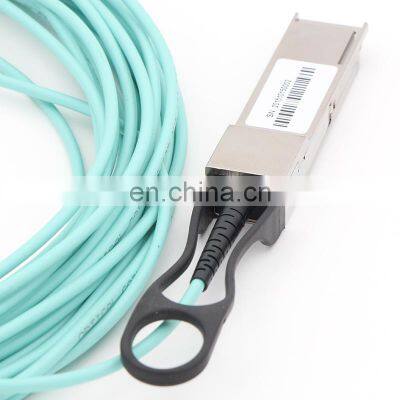

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable photo-2

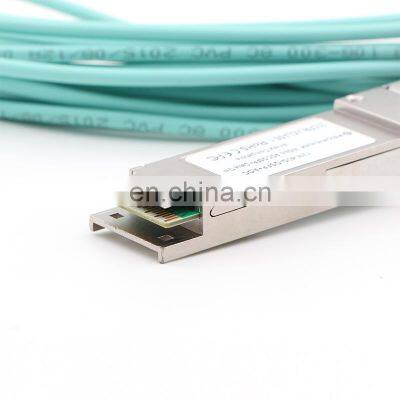

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable photo-3

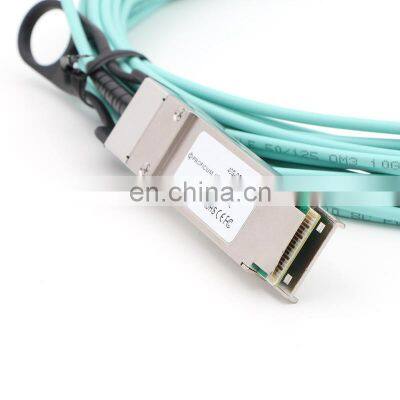

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable photo-4

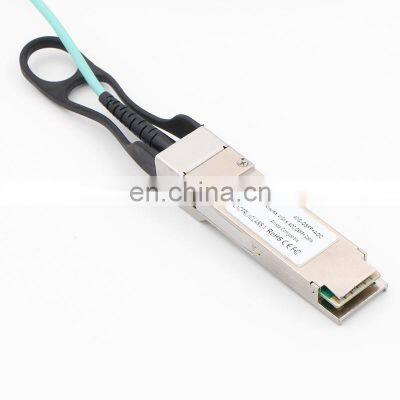

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Specification
 Electrical interface compliant to SFF-8431
 850nm VCSEL laser and PIN photo-detector
 Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
 Digital diagnostics functions are available via the I2C interface
 Operating case temperature Commercial: 0°C to +70 °C
 +3.3V single power supply
 Power consumption less than 1W
 RoHS compliant
 Password protection for A0h and A2h
Product Paramenters
25GBASE-SR Ethernet
Servers, switches, storage and host card adapters
Parameter
Symbol
Unit
Min
Typ
Max
Notes
Optical transmitter Characteristics
Bit Rate
BR
Gbps
8.5
25.78125
-
Center Wavelength Range
λc
nm
820
850
880
Average Launch powerTx_off
Poff
dBm
-
-
-45
Launch Optical Power
P0
dBm
-6.0
2.4
1
Extinction Ratio
ER
dB
2
-
-
Spectral Width(RMS)
RMS
nm
-
-
0.65
Optical Receiver Characteristics
Bit Rate
BR
Gbps
8.5
25.78125
Bit Error Rate
BER
-
-
E-12
Damage threshold
DT
dBm
3.4
-
-
Overload Input OpticalPower
PIN
dBm
2.4
-
-
2
Center Wavelength Range
λc
nm
820
-
880
Receiver Sensitivity inAverage Power
Sen
dBm
-
-
-5.2
3
Los Assert
LosA
dBm
-30
-
-
Los De-Assert
LosD
dBm
-
-
-13
Los Hysteresis
LosH
dB
0.5
Ordering information
P/N
Parameters
RSFP28-25G-AOC1M
SFP28-25G AOC-1m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC3M
SFP28-25G AOC-3m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC5M
SFP28-25G AOC-5m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC7M
SFP28-25G AOC-7m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC10M
SFP28-25G AOC-10m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC20M
SFP28-25G AOC-20m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOC30M
SFP28-25G AOC-30m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC
RSFP28-25G-AOCxxM
SFP28-25G AOC-xxm;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC, cable length custom
