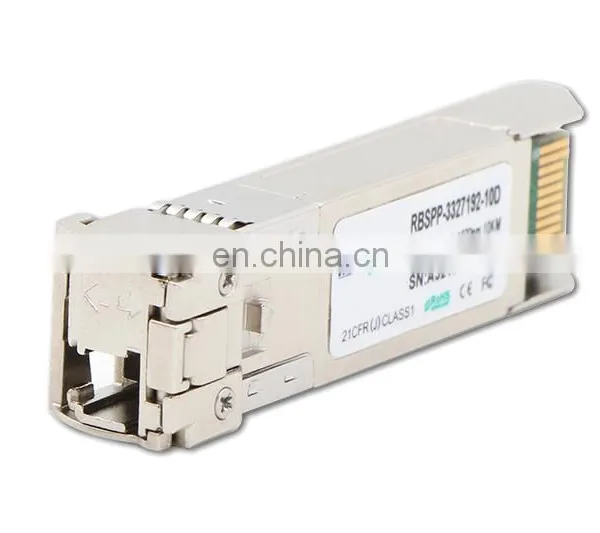

Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km Simplex LC Optic Transceiver Module photo-4

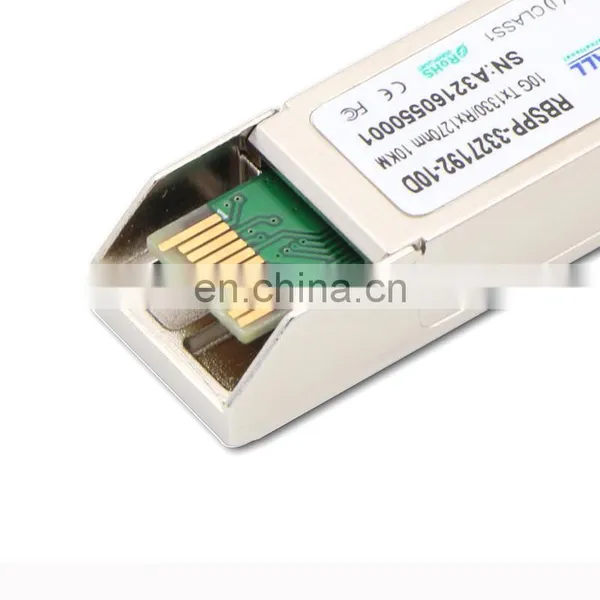

Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km Simplex LC Optic Transceiver Module photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us



 10G SFP+ BiDi 1270/1330nm, 1330/1270nm SMF simplex LC 10km dom module





1.Description

  • The bidi sfp+ module (RBSFPP-XXXX192-X0R series) single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
  • The RBSFPP-XXXX192-X0R module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
  • The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

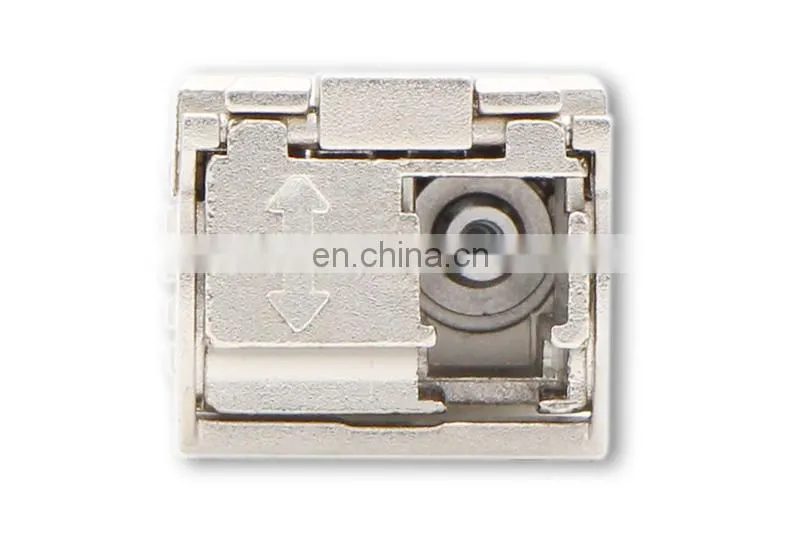

Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module

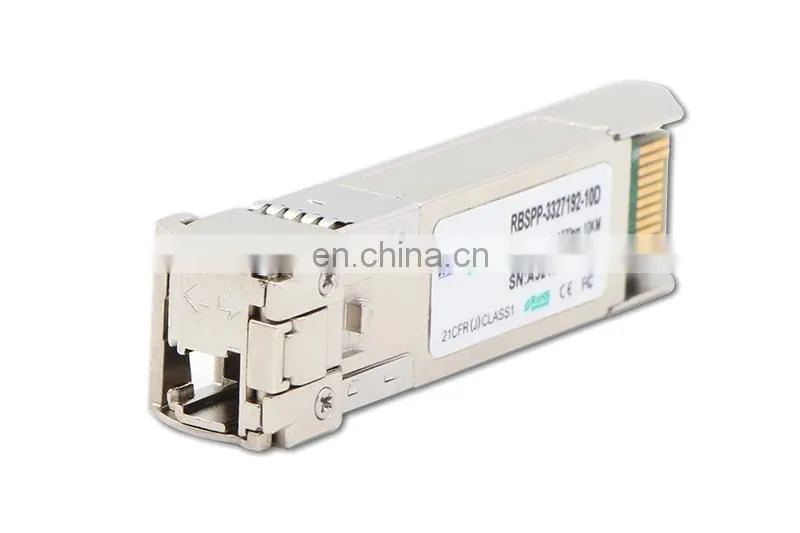

Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module

 2.Applications

  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other Optical Links
  • For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
  • For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
  • 1G/2G/4G/ 8G/10G Fiber Channel applications.

3.Features

  • Up to 10.3Gb/s data rates
  • 1G/2G/4G/ 8G/10G Fiber Channel applications.
  • Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
  • Single 3.3V Supply
  • Up to 10km on 9/125um SMF
  •         A:1270nm DFB Laser transmitter,1330nm receiver
  •         B:1330nm DFB Laser transmitter,1270nm receiver
  • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
  • SFP+ MSA SFF-8431 Compliant
  • Digital Diagnostic SFF-8472 Compliant
  • RoHS compliant and Lead Free
  • Operating case temperature:  Commercial 0°C to 70°C  / Industrial -40℃~+85℃
  • For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
  • For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.



 4. Order list

Part Number

Product Description

RBSFPP-2733192-10R

1270nm/1330nm, 10Gbps, 10km, 0ºC ~ +70ºC

RBSFPP-3327192-10R

1330nm/1270nm, 10Gbps, 10km, 0ºC ~ +70ºC

RBSFPP-2733192-20R

1270nm/1330nm, 10Gbps, 20km, 0ºC ~ +70ºC

RBSFPP-3327192-20R

1330nm/1270nm, 10Gbps, 20km, 0ºC ~ +70ºC

RBSFPP-2733192-40R

1270nm/1330nm, 10Gbps, 40km, 0ºC ~ +70ºC

RBSFPP-3327192-40R

1330nm/1270nm, 10Gbps, 40km, 0ºC ~ +70ºC

RBSFPP-2733192-60R

1270nm/1330nm, 10Gbps, 60km, 0ºC ~ +70ºC

RBSFPP-3327192-60R

1330nm/1270nm, 10Gbps, 60km, 0ºC ~ +70ºC

RBSFPP-2733192-80R

1270nm/1330nm, 10Gbps, 80km, 0ºC ~ +70ºC

RBSFPP-3327192-80R

1330nm/1270nm, 10Gbps, 80km, 0ºC ~ +70ºC





 5. Normal 10G Product list

Part Number

Data Rate

Wavelength

Distance

Package

Temp.

Source

XFP (10G)

RXFP-85192-SRD

10G

850

300M

XFP

0~70

VSCEL+PIN

RXFP-31192-LRD

10G

1310

10KM

XFP

0~70

EML+PIN

RXFP-55192-ERD

10G

1550

40KM

XFP

0~70

EML+PIN

RXFP-55192-ZRD

10G

1550

80KM

XFP

0~70

EML+APD

BIDI SFP+ (10G)

RBSFPP-2733192-10D

10G

1270Tx/1330RX

10KM

SFP+

0~70

DFB+PIN

RBSFPP-3327192-10D

10G

1330Tx/1270RX

10KM

SFP+

0~70

DFB+PIN

RBSFPP-2733192-40D

10G

1270Tx/1330RX

40KM

SFP+

0~70

DFB+PIN

RBSFPP-3327192-40D

10G

1330Tx/1270RX

40KM

 SFP+

0~70

DFB+PIN

SFP+ (10G)

RSFPP-85192-SRD

10G

850

300M

SFP+

0~70

VSCEL+PIN

RSFPP-31192-LRD

10G

1310

10KM

SFP+

0~70

DFB+PIN

RSFPP-55192-ERD

10G

1550

40KM

SFP+

0~70

EML+PIN

 RSFPP-55192-ZRD

 10G

 1550

 80KM

 SFP+

0~70



DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm…

RDXFP-XX192-40D

10G

XXXX.XX

40KM

DWDM XFP

0~70

DFB+PIN

RDXFP-XX192-80D

10G

XXXX.XX

80KM

DWDM XFP

0~70

DFB+PIN

CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCXFP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM XFP

0~70

DFB+PIN

RCXFP-XX192-40D

10G

(1470-1610nm)

40KM

CWDM XFP

0~70

EML+PIN

CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCSFPP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM SFP+

0~70

DFB+PIN

RCSFPP-XX192-40D

10G

(1270-1330nm)

40KM

CWDM SFP+

0~70

DFB+PIN







 Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver moduleBrand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module



 Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module

Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module





Packaging & Shipping

 Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module





payment

 Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km simplex LC optic transceiver module


Why Is Rollball ?
  1. Quality system of ISO900,CE,FCC,ROHS registration
  2. Manufacture system
  3. R&D system
  4. Purchasing system
  5. Prompt delivery and remarkable services
  6. Reasonable prices
  7. Accept orders according to customer's demands
  8. Rich experience of OEM & ODM co-operation
  9. Shipment,payment and delivery
