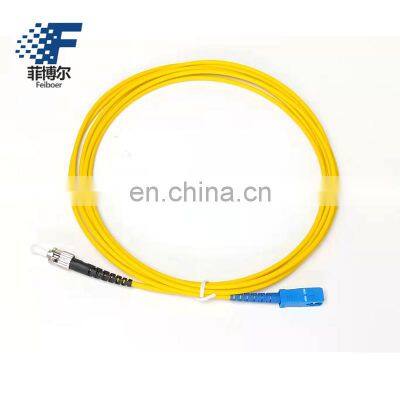

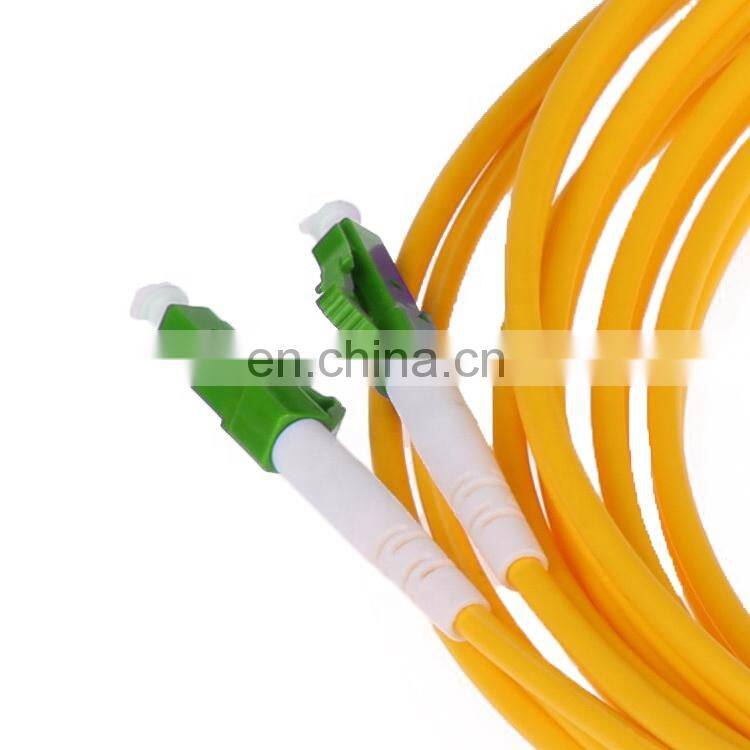

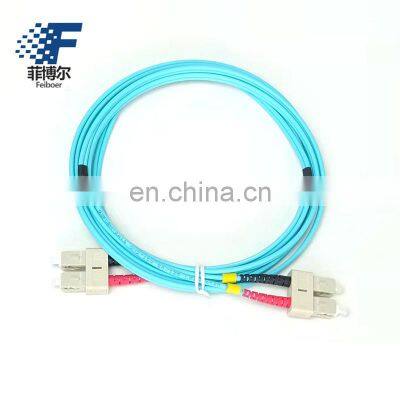

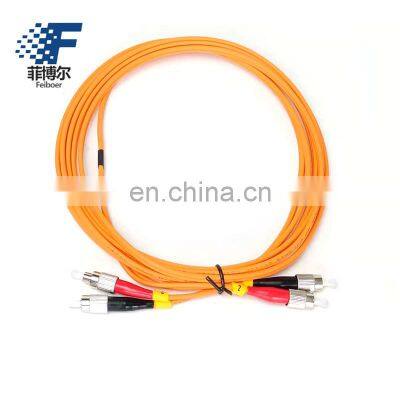

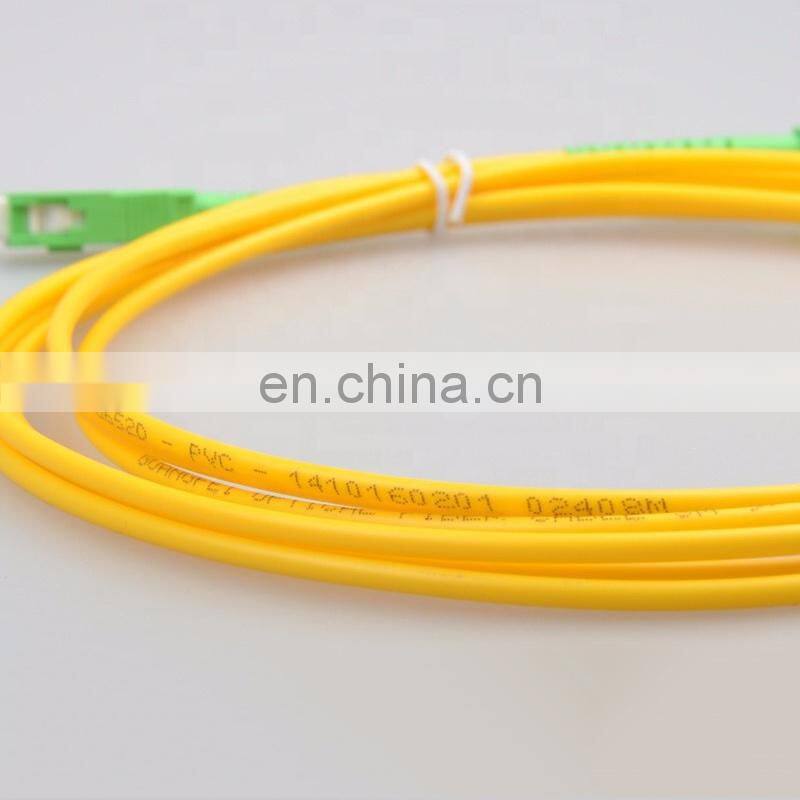

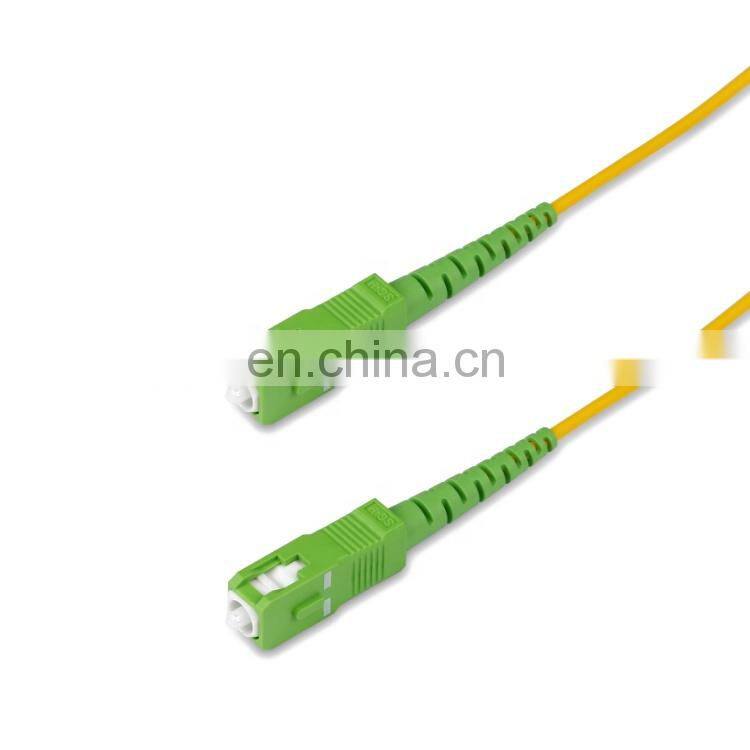

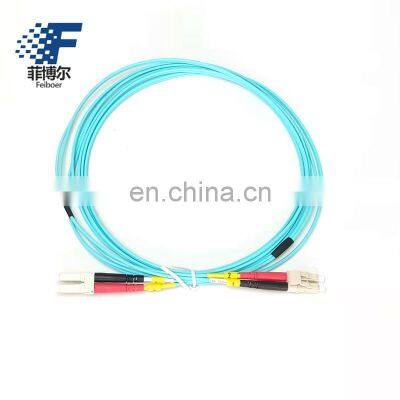

LC/APC LC/UPC SC/UPC optic fiber patch cord
Optical cable Pigtail fibers and Jumper wires
We can provide a full range of optical fiber connectors according to customer needs, From single-fiber optical connectors to high-density multi-fiber optical connections, All products of the company meet or exceed all industry standards in insertion loss and return loss. The optical cable can provide simplex, duplex, and mini-dual parallel, and the connector can provide SC / FC / LC / ST / MU / MT-RJ / E2000 / FSMA and so on.
Product Characteristics
• Low insertion loss and high return loss
• Three face grinding methods: PC, UPC, A PC
• Mechanical durability 500 times
• Outer sheath material: PVC, LSZH, etc.
• Optical cable materials meet OFNR, OFNP flame retardant grades
• Meet Rosh standards
Structural Parameter
|
Fiber Optic Connector Type |
SC/FC/LC/ST/MU/MT-RJ/E2000/FSMA |
|
|
optical fiber |
Single mode |
Multimode |
|
Insertion loss(dB) |
Typical value 0.20,Max value 0.30 |
Typical value 0.20,Max value 0.30 |
|
Return loss(dB) |
PC≥45,UPC≥55,A PC≥60 |
NA |
|
working environment (℃ ) |
-40 ~ +75 |
-40~ +75 |
|
Environmental protection |
RoHS Compliant |
RoHS Compliant |
Click here for More Information
