Hot selling GDTA GDTS hybrid optical electrical cable with g652d optic fiber for Access Network cable wire electrical 2.5mm
Product Description

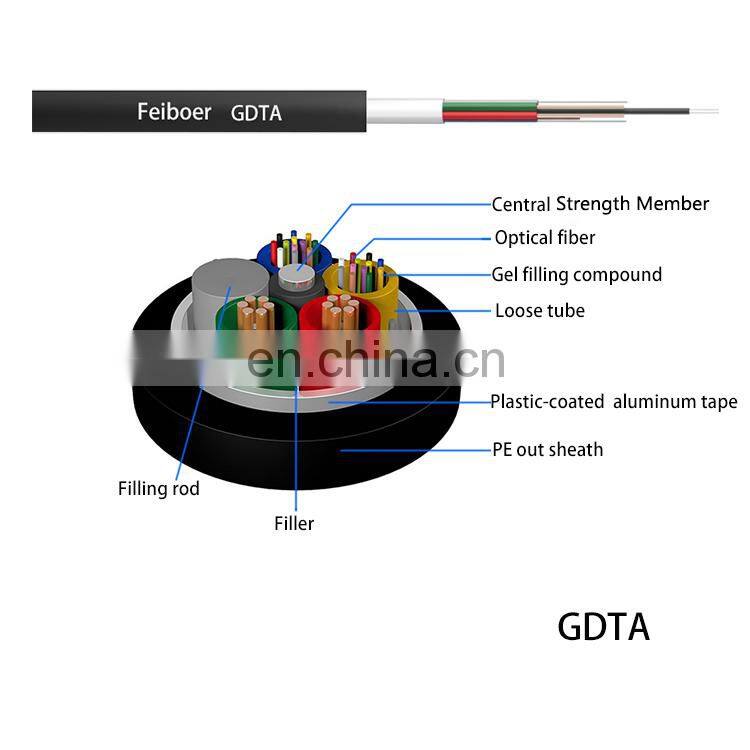

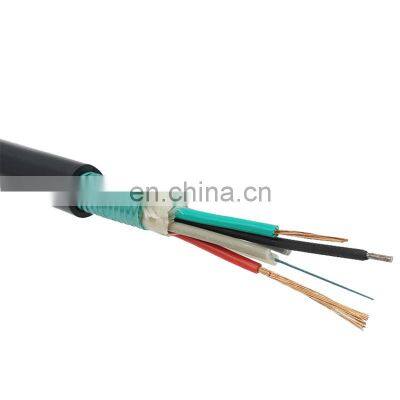

Insert single-mode or multi-mode optical fiber into a loose tube made of high-modulus polyester material, loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. Loose tube and insulated copper wire are twisted around the center strangth member to form a compact round cable. The gap in the cable core is filled with a water blocking filler. Plastic coated aluminium tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Product Characteristics
• Photoelectric integration, solve the problem of equipment power and signal transmission, provide centralized monitoring and maintenance of equipment power
• Improve power manageability and reduce power supply coordination and maintenance
• Reduce procurement costs and save construction costs
•The precision control of the fiber length ensures that the fiber has good tensile performance and temperature characteristics
•It is mainly used in DC remote power supply system of distributed base stations to connect BBU and RRU
•Applicable to duct and aerial installations
Optical Fibre Performance
|
Type |
Attenuation(+20℃) |
Bandwidth |
Numerical aperture |
||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
|
G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
--- |
|
G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
--- |
|
50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
0.200±0.015 NA |
|
62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
0.275±0.015 NA |
Technical Performance
|
Type |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |
Structure |
|
GDTA-02-24Xn+2×1.5 |
11.2 |
132 |
600/1500 |
300/1000 |
Structure I |
|
GDTA-02-24Xn+2×2.5 |
12.3 |
164 |
600/1500 |
300/1000 |
Structure I |
|
GDTA-02-24Xn+2×4.0 |
14.4 |
212 |
600/1500 |
300/1000 |
Structure II |
|
GDTA-02-24Xn+2×5.0 |
14.6 |
258 |
600/1500 |
300/1000 |
Structure II |
|
GDTA-02-24Xn+2×6.0 |
15.4 |
287 |
600/1500 |
300/1000 |
Structure II |
|
GDTA-02-24Xn+2×8.0 |
16.5 |
350 |
600/1500 |
300/1000 |
Structure II |
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
Application
• Piping or Overhead laying
