Uni-tube Opgw Single Mode Overhead Ground Wire G652d Communication 24 core Fiber Optic Cable

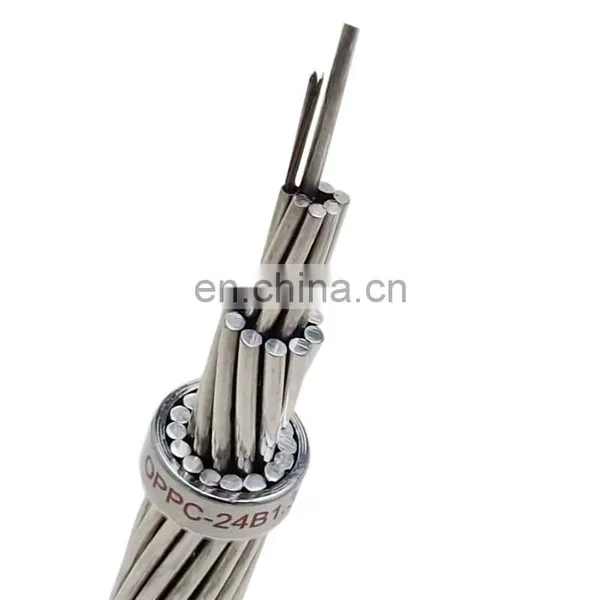

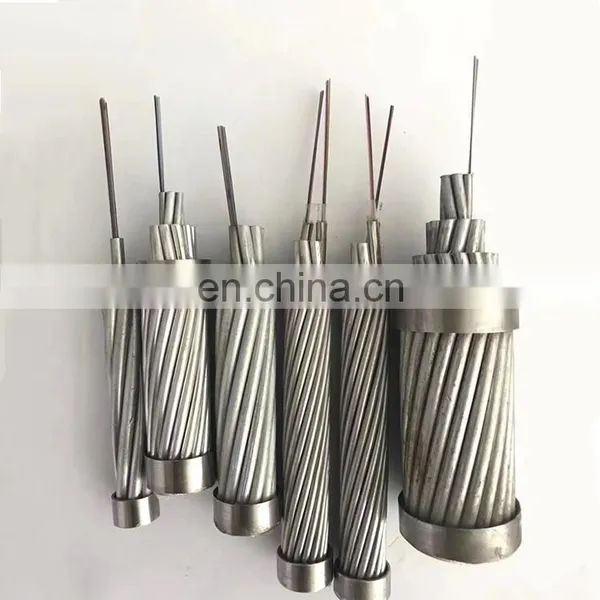

Optical Fiber Composite Overhead Ground Wire Uni-tube OPGW
Product Description
Optical fibre composite overhead ground wire (OPGW) is an overhead ground wire containing optical fibre. It has multiple functions such as overhead ground wire and optical communication. It is mainly used for communication lines of 110KV, 220KV, 500KV, 750KV and new overhead high-voltage transmission system. It can also be used to replace the existing ground lines of the old overhead high voltage transmission system, add the optical communication line, transmit short time current and provide anti lightning protection. Other structures can be customized on request.
Product Characteristics
• Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres
• Good tensile performance
• Small diameter, light weight, low additional load to the tower
• Appropriate fibre excess length of optical unit easliy to make

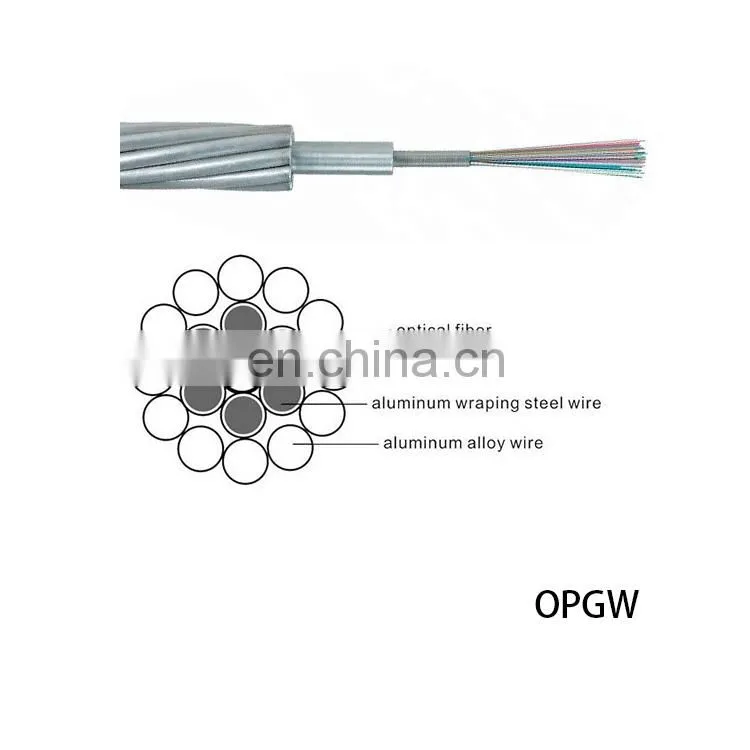

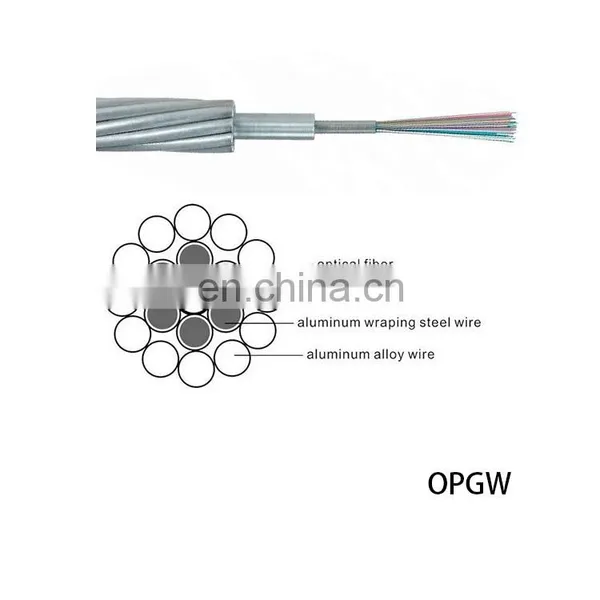

Constructions and Performance
|
|
Classification |
Material |
Value |
|
Construction |
Optical Fibre |
G652D/G655 etc. |
2 - 48 |
|
Protection Tube |
Stainless steel tube |
1.5 - 6mm |
|
|
Stranded Line |
AS wire/AA wire/Al Rod |
1.5 - 6mm |
|
|
Max. Diameter |
18mm |
||
|
Max. Cross Section |
200mm2 |
||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 |
||
|
Max. Tensile Strength (RTS ) (kN) |
280 |
||
|
Max. Crush Strength(N/100mm) |
2200 |
||
|
Max. Short Current Capacity (40℃-200℃)(kA2s) |
100 |
||
|
Min. Bending Radius (Dynamic) |
20D |
||
|
Min. Bending Radius (Static) |
15D |
||
|
Environment Performance |
Installation (℃) |
-10 to +50 |
|
|
Transportation and Operation (℃) |
-40 to +65 |
||
Optical Fibre Characteristics
|
|
Attenuation |
Bandwidth |
Polarization Mode Dispersion |
|||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
Individual Fibre |
Design Link Value (M=20, Q=0.01%) |
|
|
G652D |
— |
— |
≤0.35dB/km |
≤0.21dB/km |
— |
— |
≤0.20ps/ km |
≤0.1ps/ km |
|
G655 |
— |
— |
— |
≤0.22dB/km |
— |
— |
≤0.20ps/ km |
≤0.1ps/ km |
|
50/125μm |
≤3.0dB/km |
≤1.0dB/km |
— |
— |
≥600MHz.km |
≥1200MHz.km |
— |
— |
|
62.5/125μm |
≤3.5dB/km |
≤1.0dB/km |
— |
— |
≥200MHz.km |
≥600MHz.km |
— |
— |
Specific Type and Technical Data
Environmental Characteristics
• Transport/storage temperature: -40℃ to +65℃

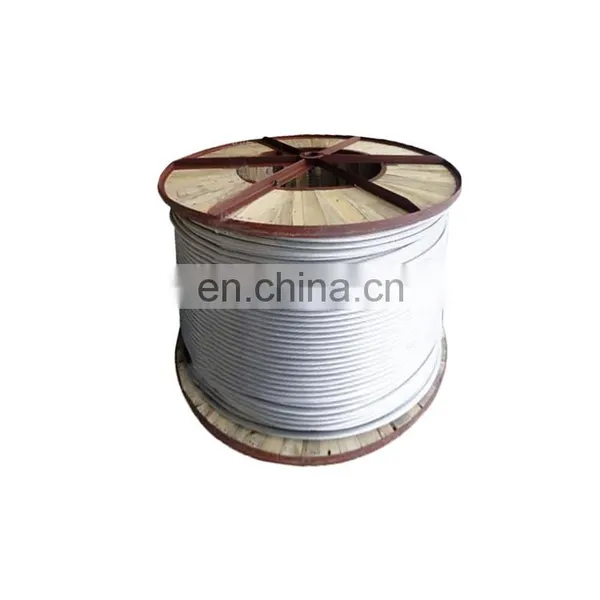

Packaging and Drum
• Standard Cable Drum
• Standard reel length: 2/3km/reel, other length is also available
