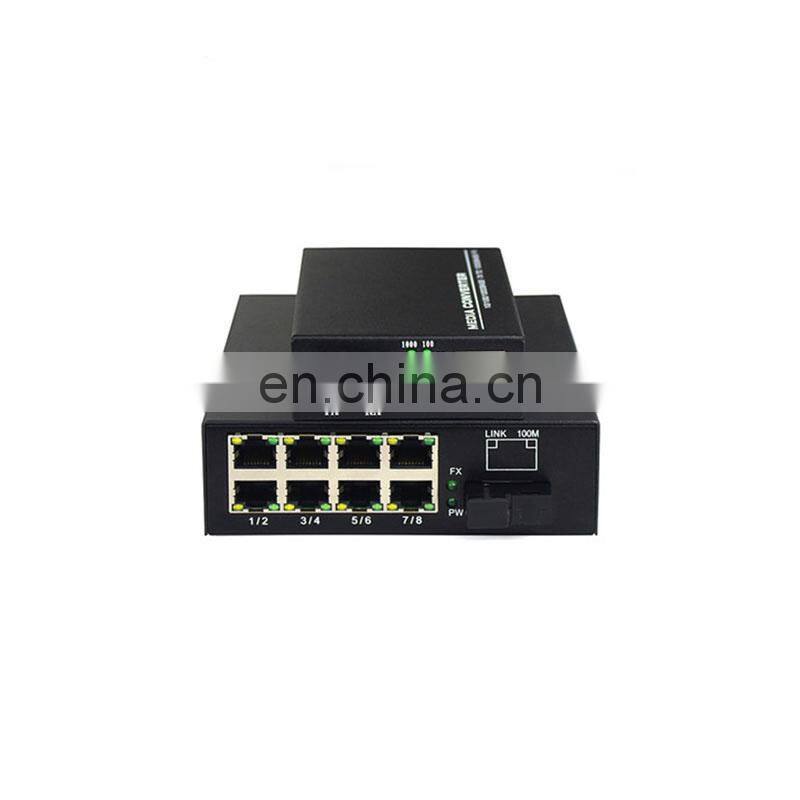

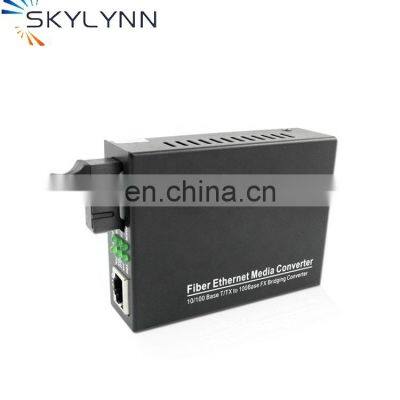

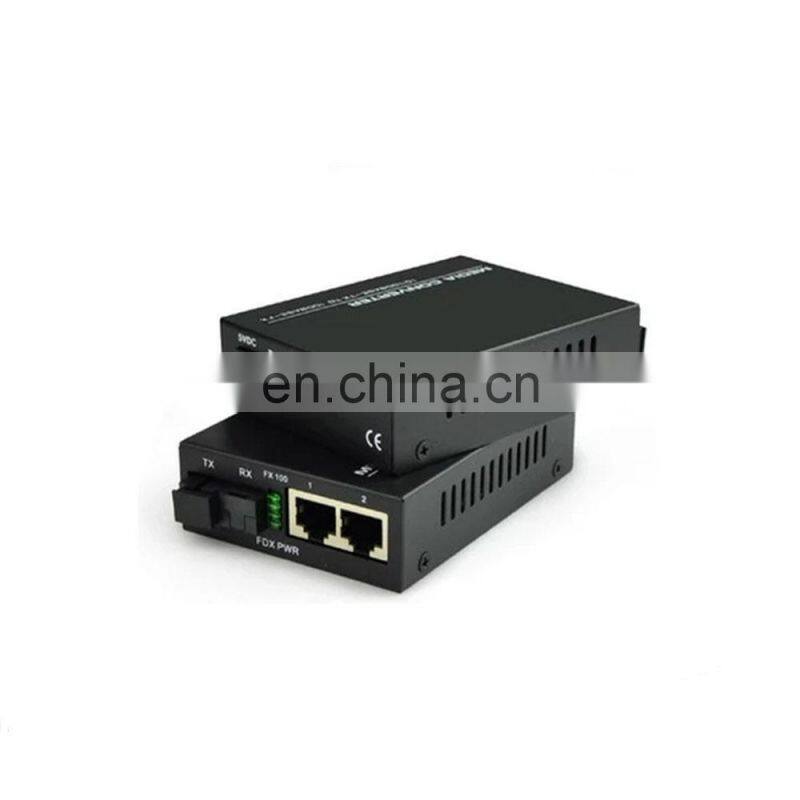

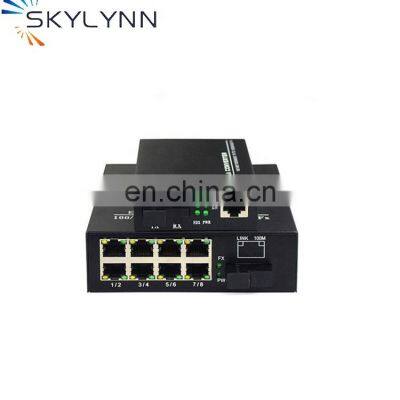

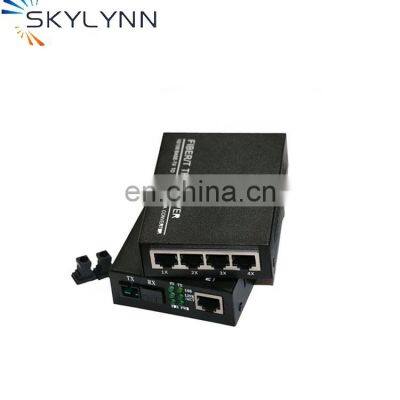

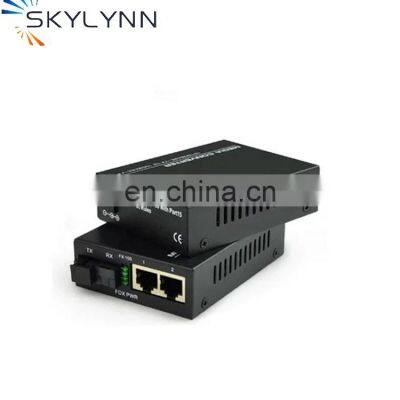

Fiber Optic To Rj45 Ethernet Media Converter Price
Key Feature:
-10/100/1000Mbps Ethernet
-10/100/1000 BASE-T/TX electrical port
-1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 2km for Multi mode;Up to 120km for Single mode
-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
-No in-field optical adjustments required
Parameters |
Specifications |
Optic Wavelength |
NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm |
Transmission Distance |
Multimode: 2km Single mode:10km~120km |
Port |
One RJ45 port, Single fiber port (SC/ST/FC Optional) |
MDI/MDI-X |
Auto selection |
Forward / Filter Rate |
10M: 14,880/14,880pps |
Power Supply |

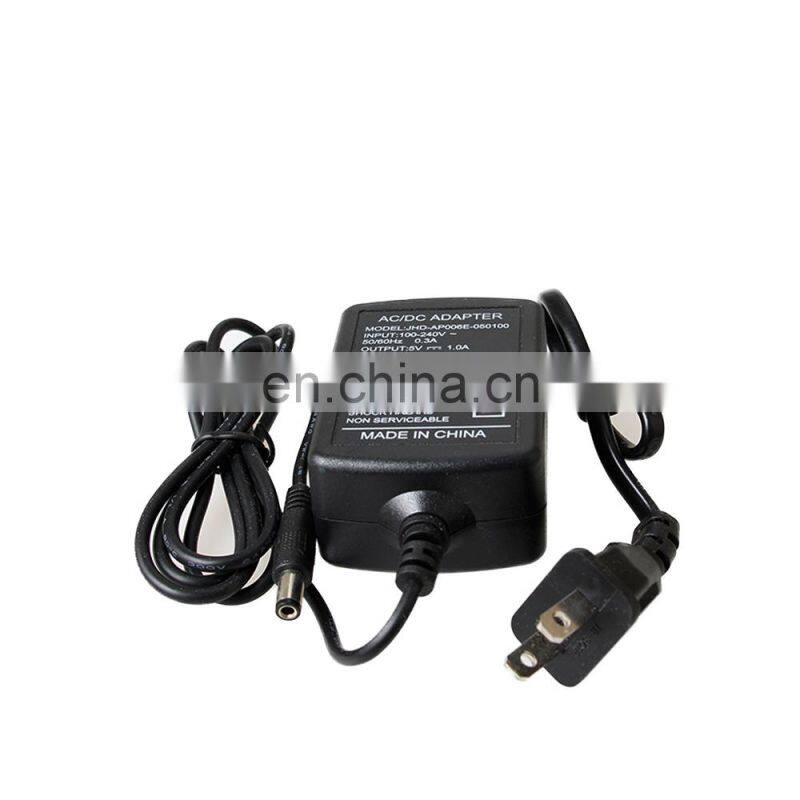

External : 5V DC 2A Power Consumption : ≤5W |
Operating Temperature |
0 °C to +70 °C |
Storage Temperature |
-20 °C to +80 °C |
Relative Humidity |
5% to 90% (non-condensing) |
Emissions |
FCC , Class A, RoHS, CE Mark |
Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
