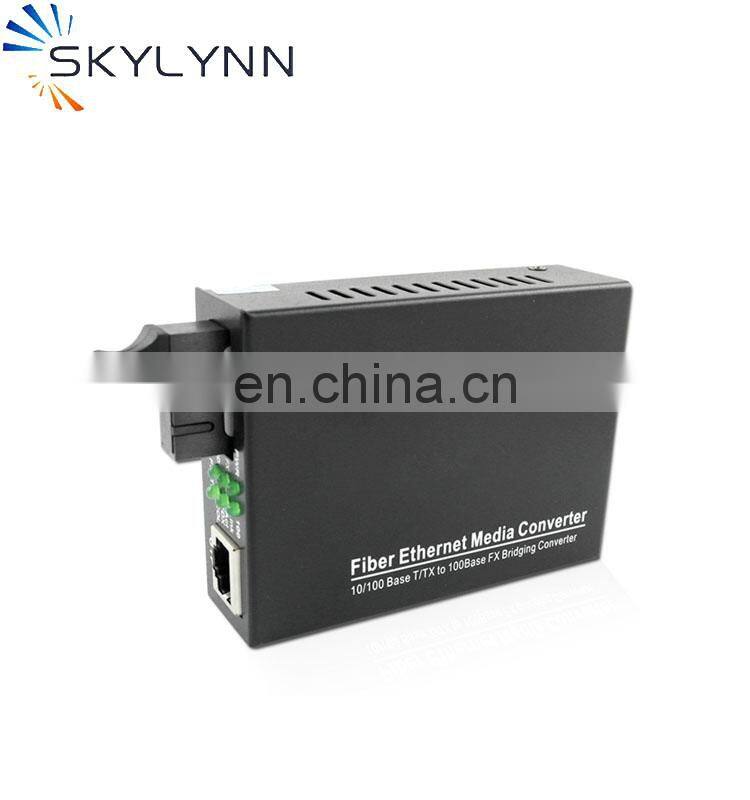

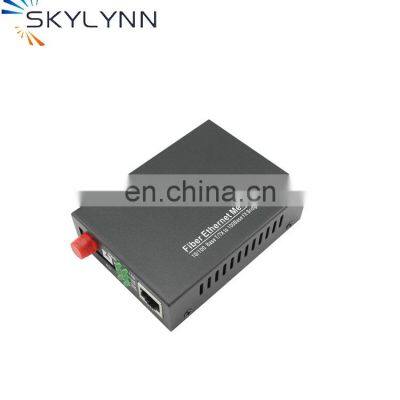

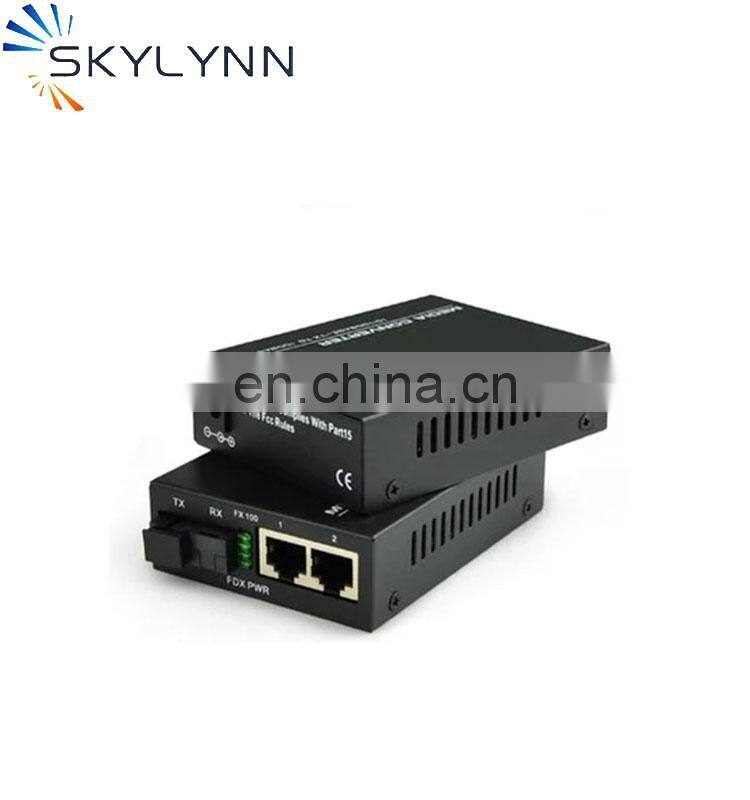

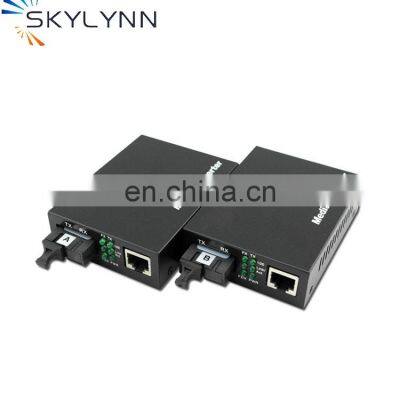

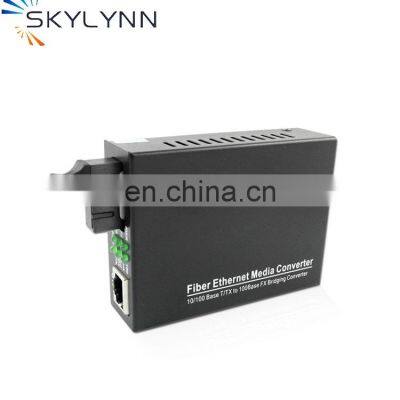

Help CenterFactory Supply OEM 10/100/1000MB Fiber Media Converter
Related Products
-
Optical Single Mode 1310nm 1550 10g 1.25 15KM 20KM Gpon Ont Copper Sfp Onu Transceiver Sfo ModuleNegotiableMOQ: 1 -
Optical Gpon Olt Ont Bidi 4 8 Ports Dual Mode Fiber Transceiver 10g 80km Switch Media Converter Dwdm Module SfpNegotiableMOQ: 1
-
Optical DWDM SFP Price GPON 1.25g 10g lr Sr-s 40km 80km SFP Transceiver ModuleNegotiableMOQ: 1
-
FTTH 1g 10g Single Fiber Dual Mode Rj45 Router OLT CWDM SC Switch Dwdm Sfp Module PriceNegotiableMOQ: 1
-
EPON Poe Recerse 1310nm Transceiver Singlemode RJ45 Media Converter Network Adapter 12dbm Bidi Sfp Module OpticalNegotiableMOQ: 1
Parameters |
Specifications |
Optic Wavelength |
NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm |
Transmission Distance |
Multimode: 2km Single mode:10km~120km |
Port |
One RJ45 port, Single fiber port (SC/ST/FC Optional) |
MDI/MDI-X |
Auto selection |
Forward / Filter Rate |
10M: 14,880/14,880pps |
Power Supply |
External : 5V DC 2A Power Consumption : ≤5W |
Operating Temperature |
0 °C to +70 °C |
Storage Temperature |
-20 °C to +80 °C |
Relative Humidity |
5% to 90% (non-condensing) |
Emissions |
FCC , Class A, RoHS, CE Mark |
-10/100/1000Mbps Ethernet
-10/100/1000 BASE-T/TX electrical port
-1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 2km for Multi mode;Up to 120km for Single mode
-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
-No in-field optical adjustments required
