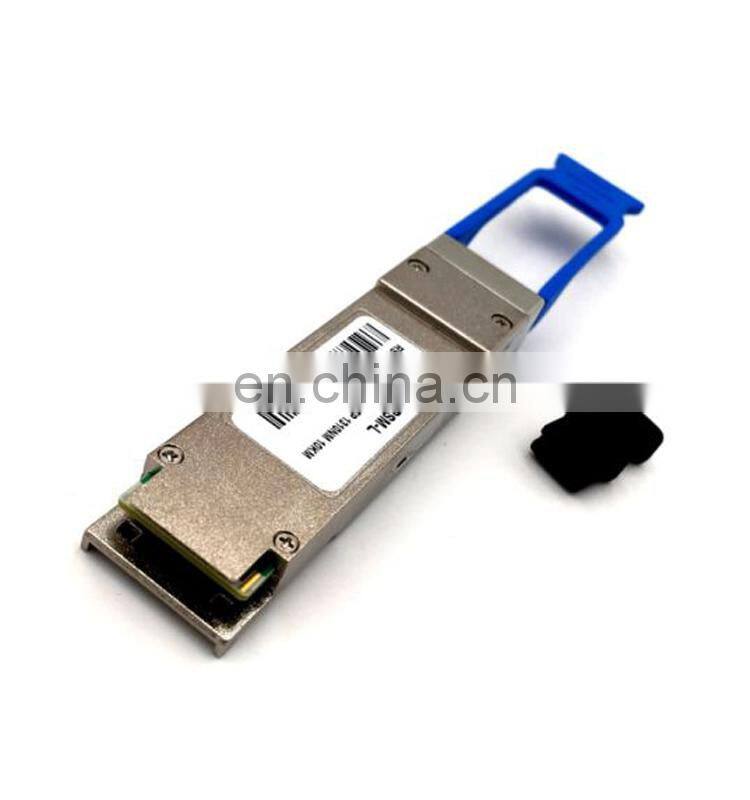

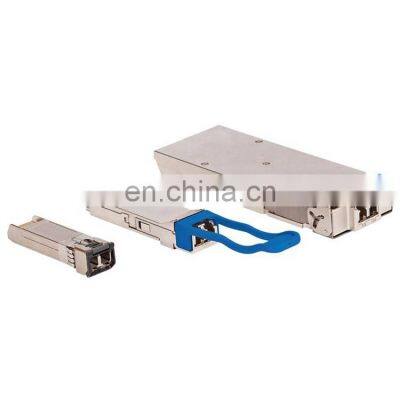

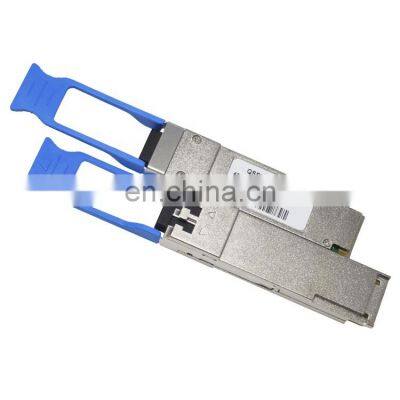

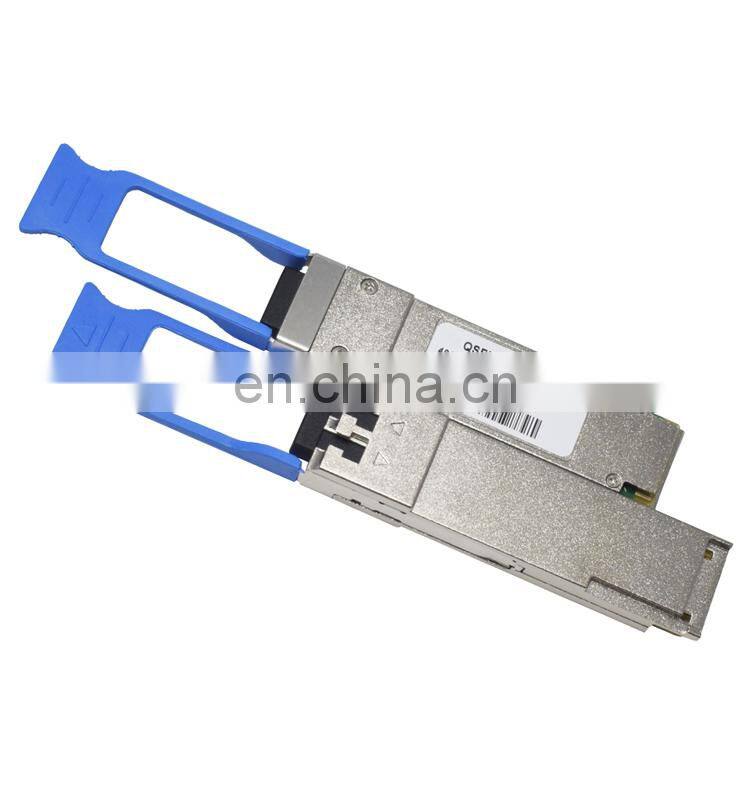

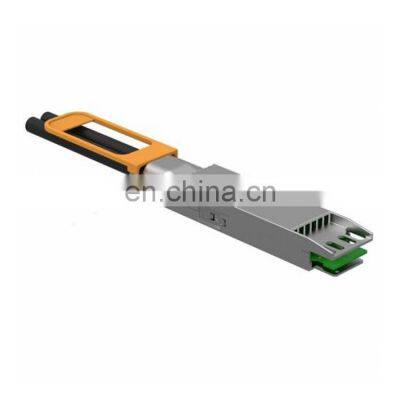

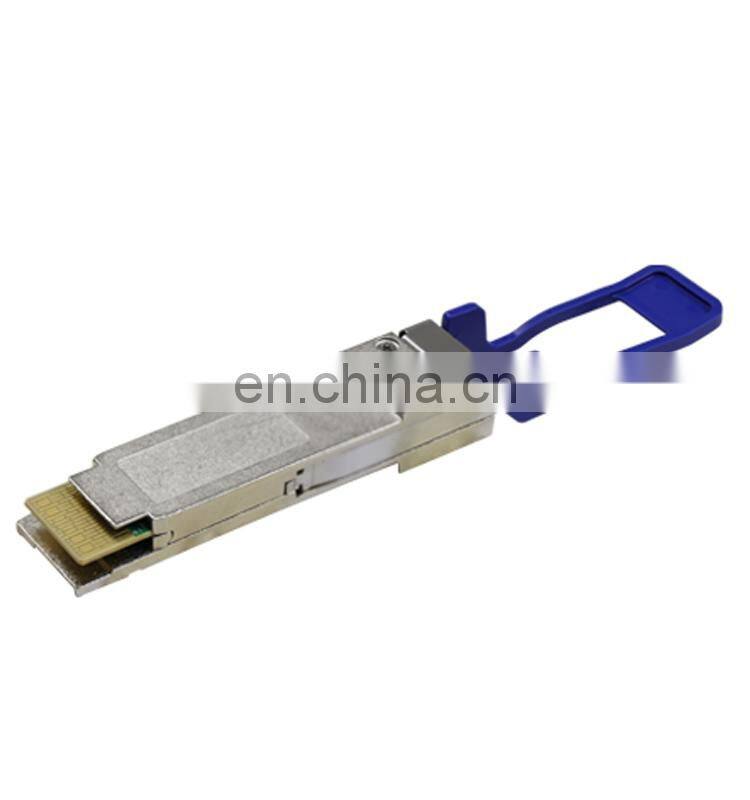

High Qualtity QSFP 40G SFP 40km Router Fiber Optical Module Transceiver QSFP
SFP module Transceiver is designed to transmit and receive optical data over 10km single mode optical fiber(SMF) with a BOSA including 1330nm DFP Laser and 1270nm PIN receiver. The transceiver comply with SFP+ (Small Form-factor Pluggable Plus) SFF-8431 MSA, and can support Multi-rate from 1Gbps to 11Gbps for 10G Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) application. Digital diagnostics functions are available via I2C which is Compliant with SFF-8472.
Features:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.3 Gb/s bitrates
Power dissipation < 1W
Commercial temperature rang 0C to 70C
Single 3.3Vpower supply
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
10g sfp+ reach 300m to 80Km(SR LR ER ZR)
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Application:
10GBASE-SR/SW 10G Ethernet
Performance Specifications
Absolute maximum rating
Exceeding the limits below may damage the transceiver module permanently.
|
Item |
Description |
|---|---|
|
Transceiver form factor |
SFP+ |
|
Transmission speed |
10GE |
|
Center wavelength (nm) |
1550 |
|
Standards compliance |
10GBASE-ZR |
|
Connector type |
LC Dual |
|
Applicable cable distance |
Single-mode fiber: 80 km |
|
Transmit power (dBm) |
0 to 4.0 |
|
Maximum receiver sensitivity (dBm) |
-24.0 |
|
Overload power (dBm) |
-7.0 |
|
Extinction ratio (dB) |
9 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
