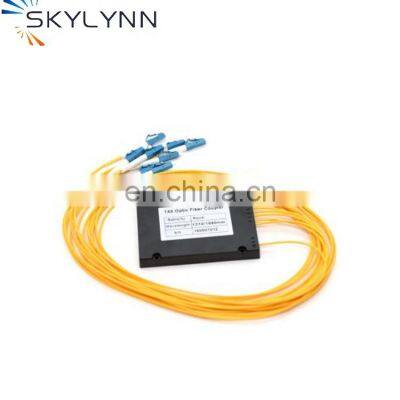

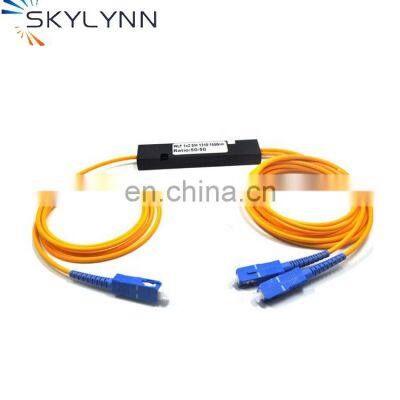

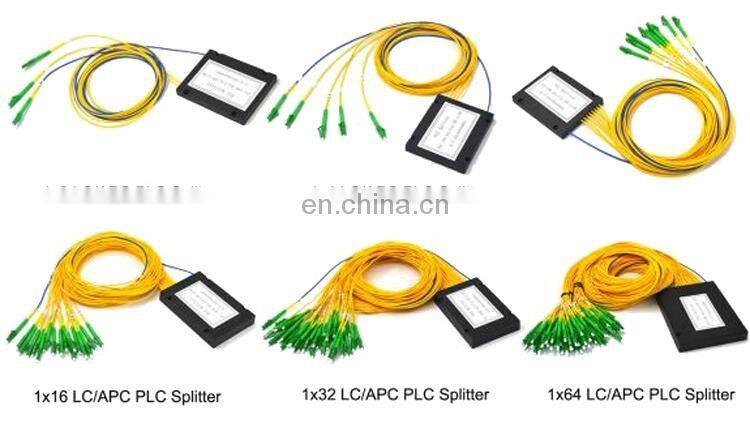

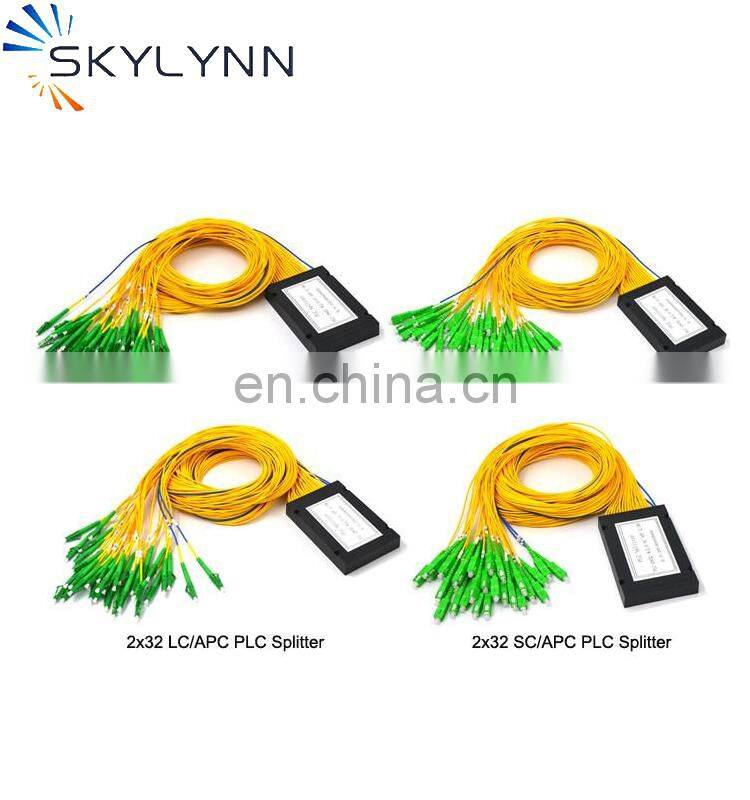

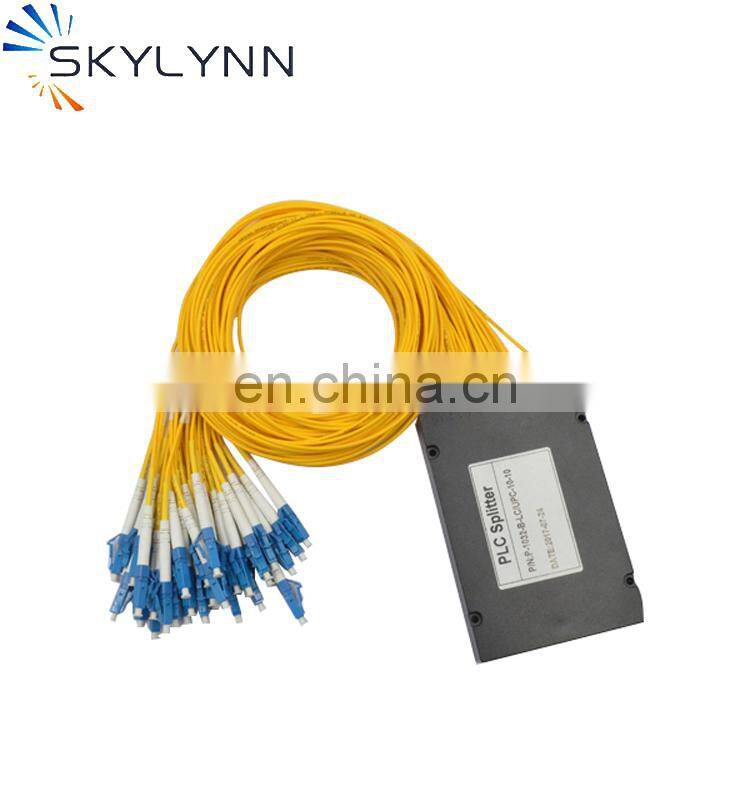

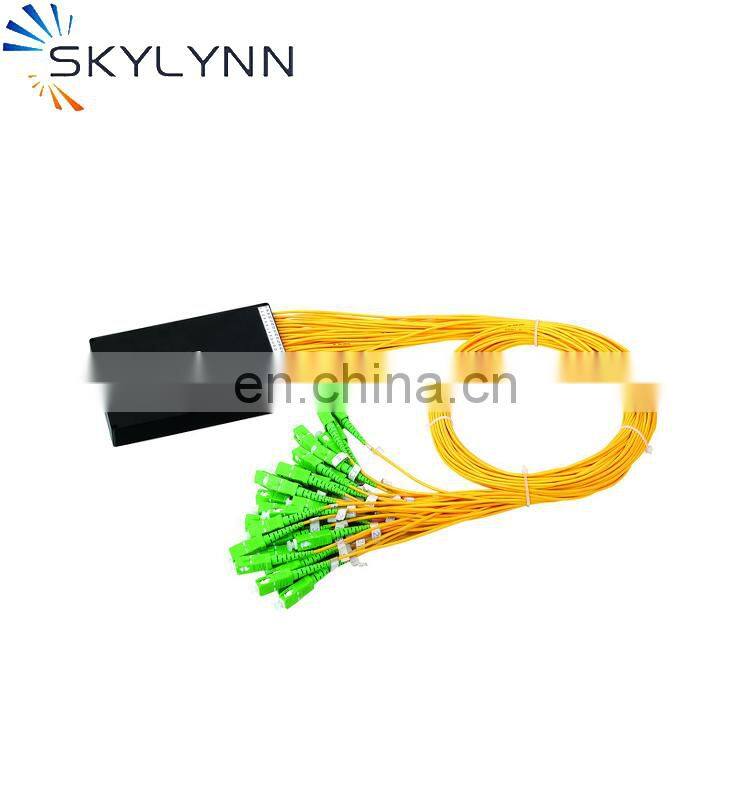

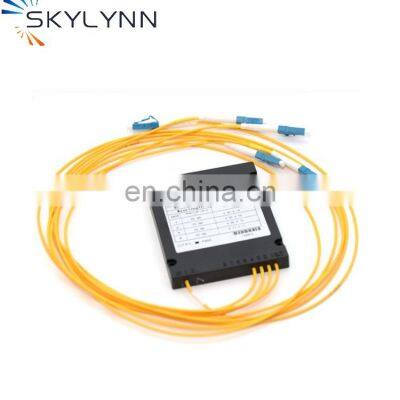

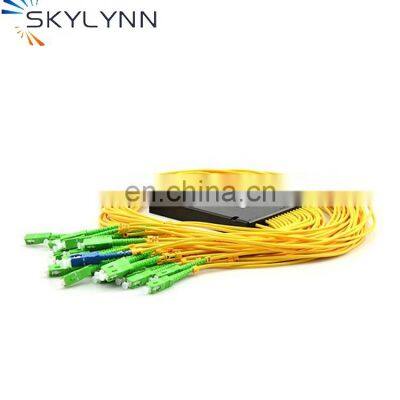

ftth gpon 1x2 1x8 1x4 1x16 1x128 fiber optic PLC splitter
PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
|
Wavelength(nm) |
1260-1650 |
||||||||
|
Parameters |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Insertion Loss(with connector)(dB) |
≤7.4 |
≤10.7 |
≤13.7 |
≤16.9 |
≤21 |
≤7.8 |
≤11.5 |
≤14.5 |
≤17.7 |
|
Insertion Loss(W/O connector)(dB) |
≤7.7 |
≤11.2 |
≤14.2 |
≤17.5 |
≤21.5 |
≤8.3 |
≤12 |
≤15 |
≤18.2 |
|
Uniformity (dB) |
≤0.8 |
≤1.0 |
≤1.4 |
≤1.9 |
≤2.7 |
≤1.7 |
≤1.7 |
≤2.2 |
≤2.7 |
|
PDL(dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.2 |
≤0.4 |
≤0.4 |
≤0.4 |
|
Return Loss(dB) |
>50 |
||||||||
|
Product Categories (Please click on more information) |
|||
| Optical Cable | Fiber Optic Pigtail | FTTH Solutions | MPO Solutions |
| FTTH Drop Cable | Fiber Optic Accessories | Networking Cable | Active Components |
| Optical Patch cord | Fiber Management System | Networking Patch cords | Fiber Tools & Toolkits |
>>>>>>Contact Us
Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
