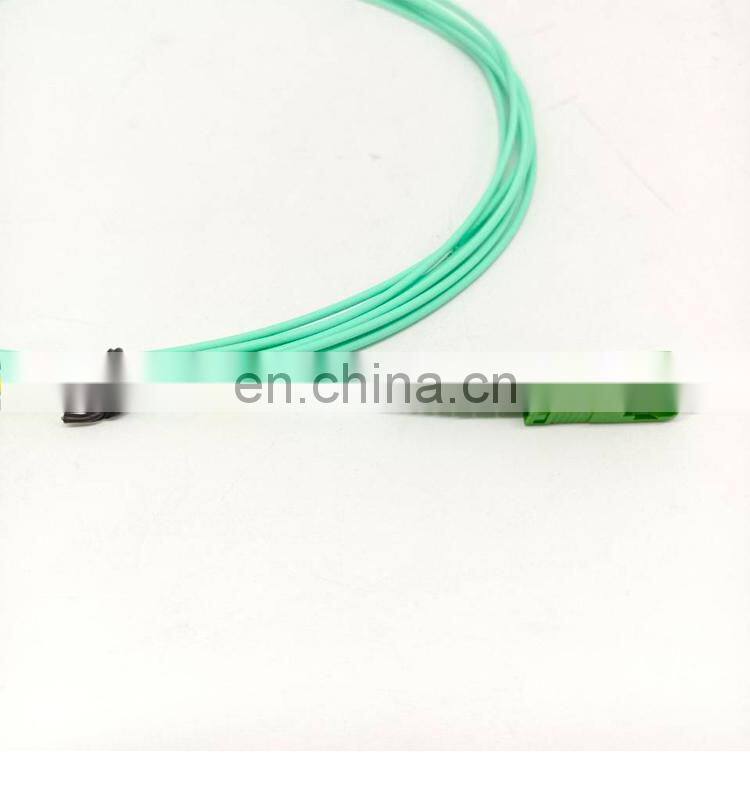

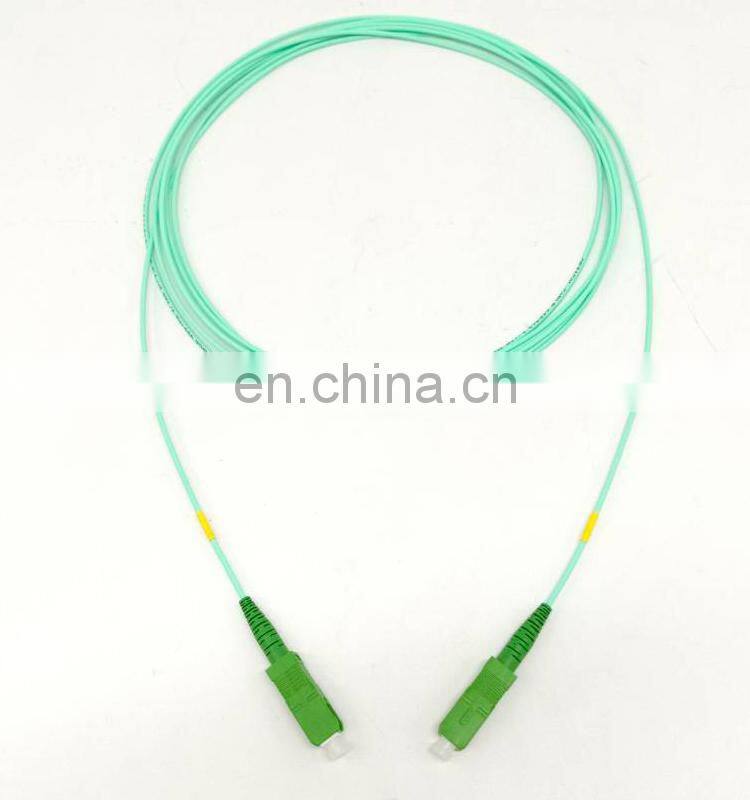

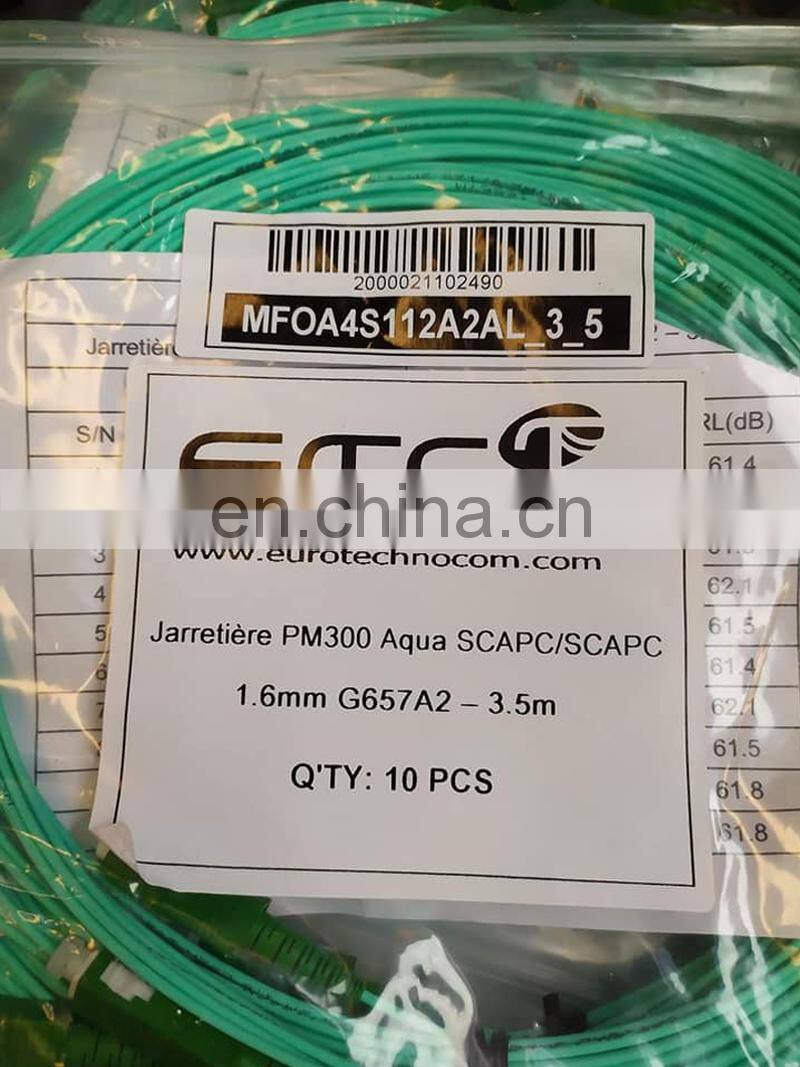

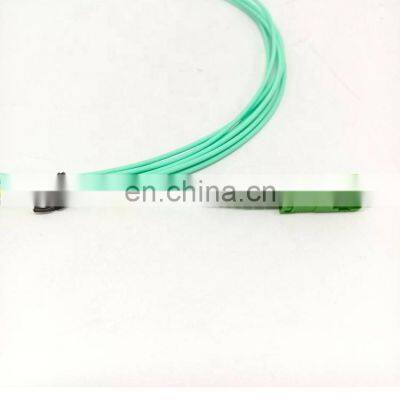

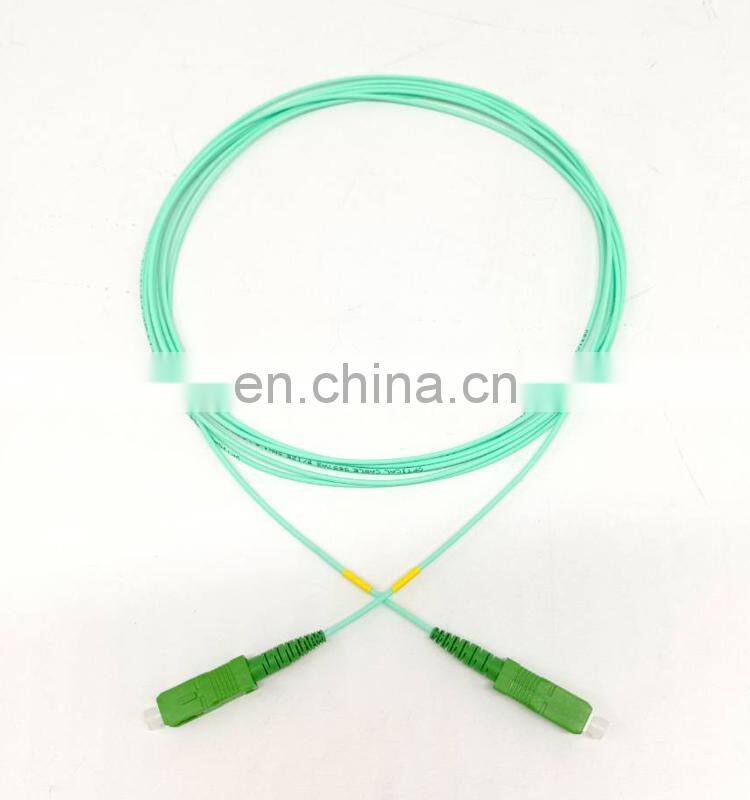

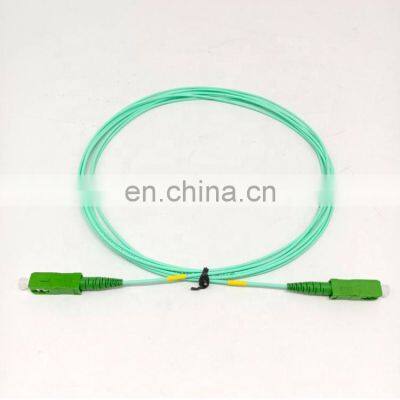

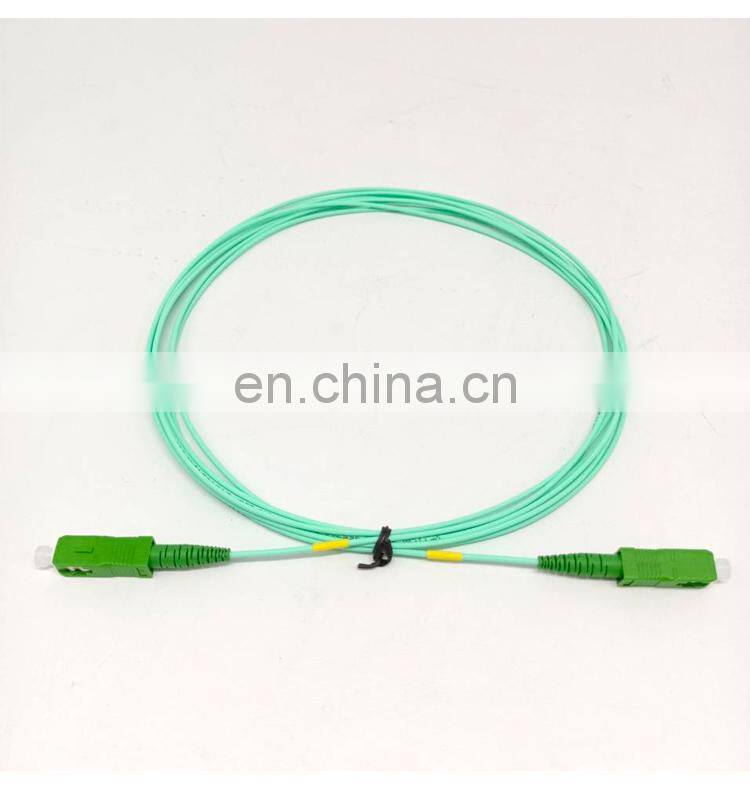

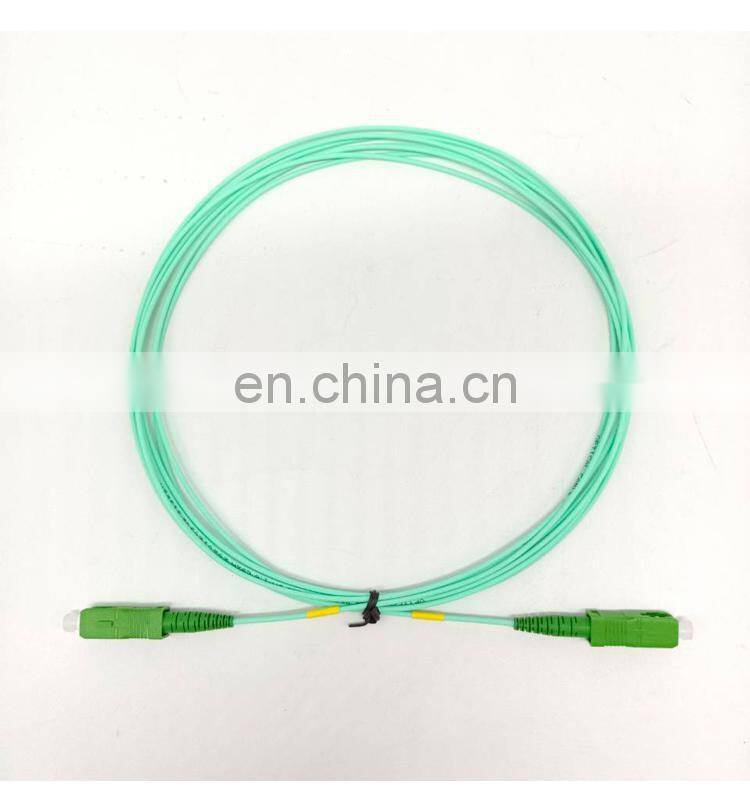

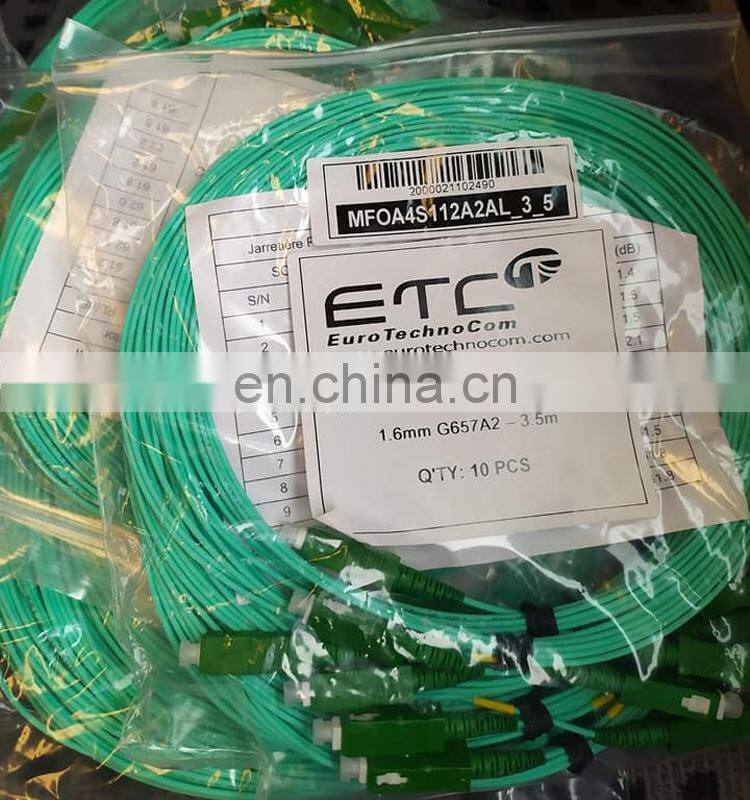

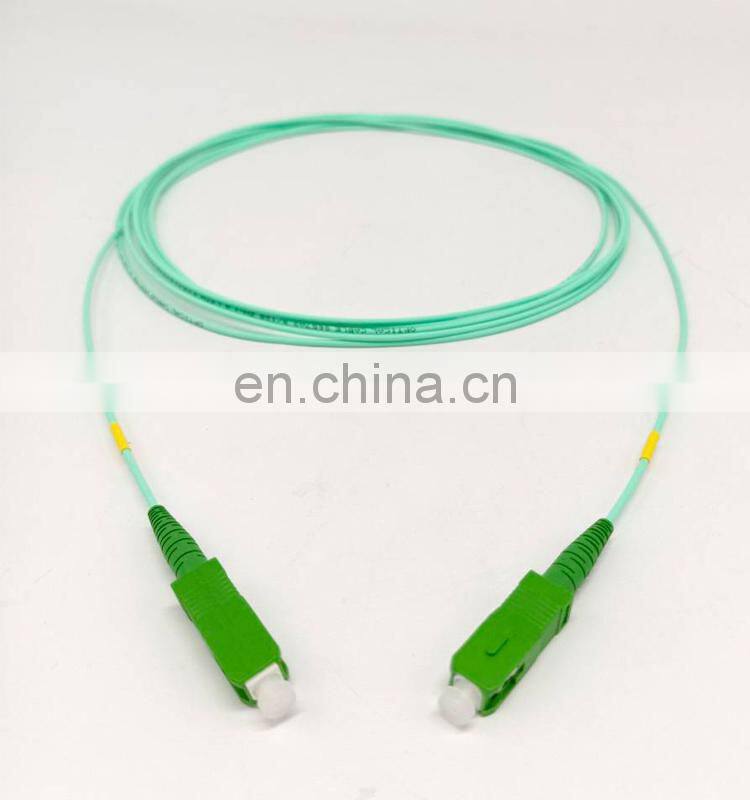

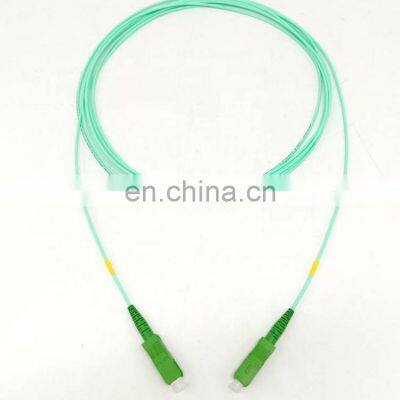

1.6mm 2.0mm sm aqua patch cable 9/125 sc/apc to sc/apc 1.5m 3.5m white simplex optical fiber patch cord

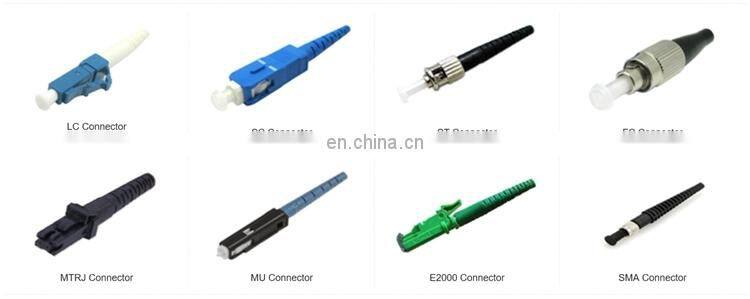

A ptachcords can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. The range of high performance SC, FC, ST, LC, MTRJ, MU, fiber optic cables come in any combination, including angled (angle polished) SCA, MUA, FCA, STA, LCA, MPO Angled. We offer a range of Flammability options, PVC and LSZH. Features include, low insertion loss and outstanding return loss performance.
Optical Feature:
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance | IL(dB) | 1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature | +85℃,168H | 0.2 | |||
| Temperature cycle | -40~+75℃,21cycle,168H | 0.2 | ||||
| Humidity thermal(Fixed) | 5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle | 10~+65℃,95%R.H.,21 cycle,168H | 0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping | 1.5 height, 8 times | 0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 | ||||
| Product Categories (Please click on more information) | ||
| Fiber Optic Cables | Fiber Optic Components | FTTH Solutions |
| Fiber Optic Management | Fiber Optic Equipment | Networking Products |
>>>>>>>>>>Contact Us
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
