Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber Optic Tools Kit Optical With FC-6s FTTH Fiber Cleaver Protection Tube Power Meter Kit Tool
Fiber Optic Tools Kit Optical With FC-6s FTTH Fiber Cleaver Protection Tube Power Meter Kit Tool
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fusionadora AI-7C Fiber Splicer Fusion Splicing Machine Maquina Fusion Splicing Fusionadora Fibra PticaNegotiableMOQ: 1 -
Fiber Optic Splicing Machine Fusion Splicer AI-8C Fiber Machine Fusion Splicer Optic Splicing Fusionadora de Fibra OpticaNegotiableMOQ: 1
-
Coaxial Cable Stripper Optic Fiber Buffer Tube StripperNegotiableMOQ: 1
-
2.5mm FC ST SC 1.25MM LC MU Fiber Optic Connector Oneclick Cleaner Pen /Fiber Cleaning PenNegotiableMOQ: 1
-
12-144 Fiber Optic Communication Fiber Closure In Line Fiber Joint ClosureNegotiableMOQ: 1
Product Description
Product Name |
Fiber Optic Tools Kits |
Material |
PVC |
Function |
Fiber Tools |
Package |
Paper box |
Product performance description

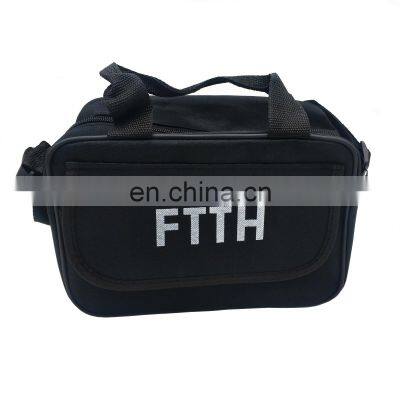

1 x Fiber Tool Kits Bag
1 x FC-6S Fiber Optical Cleaver
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Optic Kevlar Cutter
1 x Alcohol Bottle
1 x Screwdriver
1 x Cotton Swab
20pcs x Protection Tube
1 x FC-6S Fiber Optical Cleaver
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Optic Kevlar Cutter
1 x Alcohol Bottle
1 x Screwdriver
1 x Cotton Swab
20pcs x Protection Tube
Details Images
FC-6S
Model: FC-6S
Applicable fibers Singlemode or Multimode Use
Fiber Diameter 125um
Coating Diameter 250um ~ 900um
Typical Cleave Angle 0.5 Degrees
Cleave Length 9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time 36,000 cleaves (3,000 per blade position)
Cleaver Dimensions 63 x 65 x 63mm
Weight 500g
Applicable fibers Singlemode or Multimode Use
Fiber Diameter 125um
Coating Diameter 250um ~ 900um
Typical Cleave Angle 0.5 Degrees
Cleave Length 9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time 36,000 cleaves (3,000 per blade position)
Cleaver Dimensions 63 x 65 x 63mm
Weight 500g

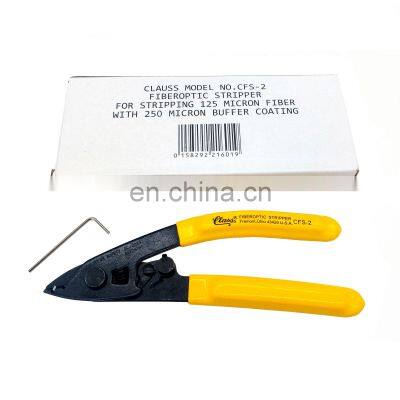

CFS-2
1.0mm diameter stripping hole at the tip of tool that can be used to strip the fiber jacket
140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
Lock to hold tool closed when it is not in use
Will not scratch or nick glass fiber
Pre-set at the factory-no adjustments needed
Comfort grip, ergonomic handles
140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
Lock to hold tool closed when it is not in use
Will not scratch or nick glass fiber
Pre-set at the factory-no adjustments needed
Comfort grip, ergonomic handles
FTTH Drop Cable Stripper
- Tool for FTTH flat drop optical cable
- Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
- Simple jacket removing without fiber damaging
- Made of zinc alloy steel with PVC non-slip handle.
- Improve cable splicing, more efficient and easy to use.
- Lightweight and compact.
- Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
- Simple jacket removing without fiber damaging
- Made of zinc alloy steel with PVC non-slip handle.
- Improve cable splicing, more efficient and easy to use.
- Lightweight and compact.

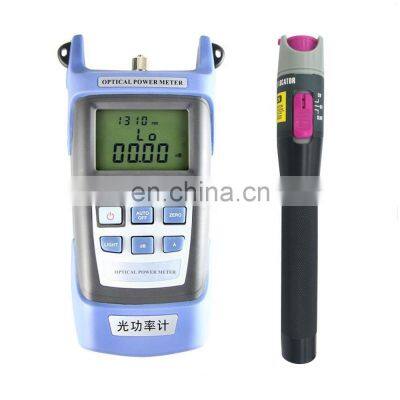

Fiber Optical Power Meter
Calibration Wavelength (nm):850,1300, 1310,1490,1550,1625
Measurement Range(dBm):-70~+3
Resolution (dB):0.01
Uncertainty (dB):±0.5
Linearity (dB):±0.1
Frequency Identification Range:<10K
Connector:FC/SC/ST
Wavelength (nm):1310/1550(optional others)/1490
Operating Temperature(℃):-10+60
Storage Temperature(℃):-25~+70
Power supply:3 double-A 1.5V dry batteries
Measurement Range(dBm):-70~+3
Resolution (dB):0.01
Uncertainty (dB):±0.5
Linearity (dB):±0.1
Frequency Identification Range:<10K
Connector:FC/SC/ST
Wavelength (nm):1310/1550(optional others)/1490
Operating Temperature(℃):-10+60
Storage Temperature(℃):-25~+70
Power supply:3 double-A 1.5V dry batteries
