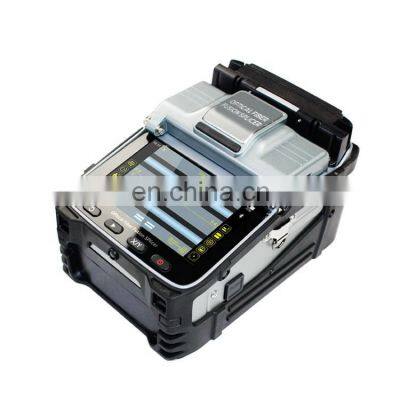

Fusionadora AI-7C Fiber Splicer Fusion Splicing Machine Maquina Fusion Splicing Fusionadora Fibra Ptica
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Optic Splicing Machine Fusion Splicer AI-8C Fiber Machine Fusion Splicer Optic Splicing Fusionadora de Fibra OpticaNegotiableMOQ: 1 -
Coaxial Cable Stripper Optic Fiber Buffer Tube StripperNegotiableMOQ: 1
-
2.5mm FC ST SC 1.25MM LC MU Fiber Optic Connector Oneclick Cleaner Pen /Fiber Cleaning PenNegotiableMOQ: 1
-
12-144 Fiber Optic Communication Fiber Closure In Line Fiber Joint ClosureNegotiableMOQ: 1
-
24 Cores FTTH Dome Fiber Joint Closure Fiber Optic Dome Fiber Optic Splice ClosureNegotiableMOQ: 1
Product Description
Fiber alignment |
Core/cladding alignment 1 Manual alignment |
Splicing time |
8S |
Heating time 18S |
18S |
Heating mode |
Automatic heating ( Preheating ) |
Focus mode |
Six motors Auto focus |
Applicable Fibers |
SM(G 652&G.657)、MM (G.651)、DS(G.657)、NZDS (G.655) |
Splice Loss |
0.025dB (SM)、0.01dB (MM) 0.04dB ( DSINZDS ) |
Control technology |
Real-time control and calibration of fusion ARC |
Return loss |
Better than 60DB |
Fiber diameter |
Cladding Diameter: 80-150um Coating Diameter: 100-1000μm |
Fiber Cleave Length |
Coating less than 250um; 8-16mm Coating less than 250- 1000um:16mm |
Language Setting |
10 languages to switch freely |
Tension Test |
Standard 2N |
Fiber holders |
3 in 1 fiber holder, SM, MM, bare flber, pigtail, rubber _insulated, multi fber cable |
Magnification |
300forXorYview,150forXorYview |
Screen |
5 inch TFT color display |
Splicing Mode |
Nomal 1 high precision splicing |
Splicing record storage |
Synchronize to the phone, the server to cloud storage unlimited |
Built-in battery |
7800 mA high-capacity lithium battery, charging time s 3.5 hours, continuous splicing and heating about 240 times |
Power supply |
Input AC100-240V 50 / 60HZ, output DC13.5V1 4.8A, the current power mode can be identified, real-time detection of battery power |
Operating Condfitions |
Temperature -15 ~ +50 C, humidity:＜95% RH(no condensation) Working altitude: 0一5000m. Resist max. wind speed: S 15m/s |
Shrinkable tube |
60mm、50mm、40mm、25mm |
Boot time |
1 second |
Product protection |
Waterproof, dust proof, shock-resistant |
- AI-7C Fusionadora
18 seconds fast heating
8 seconds fast splicing
5 inch display Simultaneously
align fibers Loss display
Automatic heating
Disassembly free
three-in-one fiber holder
Six motors
Core alignment
Details Images
Applicable Fibers: SM(G 652&G.657)、MM (G.651)、DS(G.657)、NZDS (G.655)
Splice Loss: 0.025dB (SM)、0.01dB (MM) 0.04dB ( DSINZDS )
Return loss: Better than 60DB
Fiber Cleave Length: Coating less than 250um; 8-16mm Coating less than 250- 1000um:16mm
Power supply: Input AC100-240V 50 / 60HZ, output DC13.5V1 4.8A, the current power mode can be identified, real-time detection of battery power
Related Products
Packing&Shipping

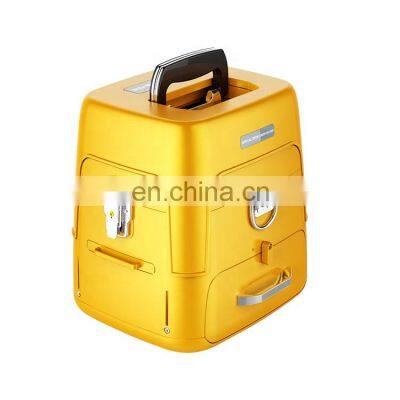

1, Fusionadora is packed 1psc per craton box with all fiber tools
2, the paper cartons could packed 27 or 36 cartons per pallets.
3, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
Company Introduction
Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions.
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
