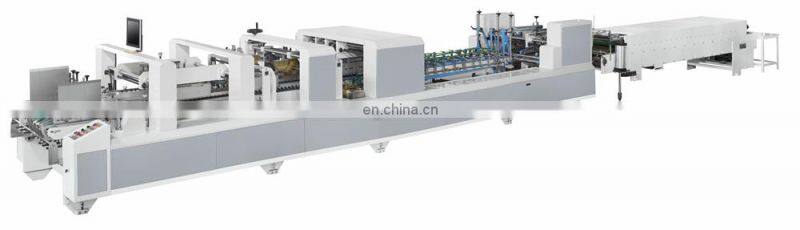

ZH-A1450C folder gluer
1. Characteristics:
1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5.Automatic counting and kicking,quantity can preset.
6.Conveyer pressure adjustable according to the box to ensure best quality.
2. Main technical parameter:
|
Model |
ZH-A1450C |
|
Suitable material |
Card board 210gsm-850gsm,E/C/B/AB flute corrugated board |
|
Max method |
Automatic continuous feeding |
|
Max mechanical speed |
350m/min |
|
Overall dimension |
16800*2350*1900mm |
|
Weight |
10.5T |
|
Power consumption |
18KW,380V,50HZ |
3.Machine configuration
|
Main motor |
TECO Taiwan |
|
Touch screen |
Siemens |
|
PLC |
Siemens |
|
Inverter |
Siemens |
|
Ribbed belt |
WUTONG |
|
Drive Bearing |
NSK |
|
Wall thickness |
20mm tempered |
|
Feeding belt |
NITTA |
|
Plain belt |
NITTA Japan |
|
Circuit Breaker |
Schneider |
|
Rely |
Schneider |
|
Button |
Schneider |
|
Switch power supply |
Schneider |
|
Photo Switch |
Panasonic |
5.Feature:
1.Feeder Section
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
Feeding knifes are equipped with pneumatic mechanism for smoother feeding.
Configure the display, real-time monitoring of the paper is normal
2.Paper Alignment System:
Automatic alignment system to correct the paper feeding,avoiding the paper going to sides.
Configure the transmission to adjust the belt speed,Make the box more neat
3.Bottom Lock Section
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
4.Down gluing section
Two side gluing tank.(right and left)
Easy to remove and clean
5.Folding Section
Equipped with speed variator for belts,ensure the folded boxes parallel and in good order
Fast,convenient adjustment and operation can fold boxes perfectly
The middle up and down transmission module can fold boxes synchronously or alternately
Configure the embossing wheel to adjust the belt speed so that the cartons are folded and aligned
6.Trombone Section
Continuous and automatic box collection mechanism that ensures a neat transfer to the
Press section, guaranteeing a wellaligned flow.
Configure the Siemens touch screen computer speed can be adjusted
7.Press section
Manual and automatic speed variation in coordination with a photocell.
|
|

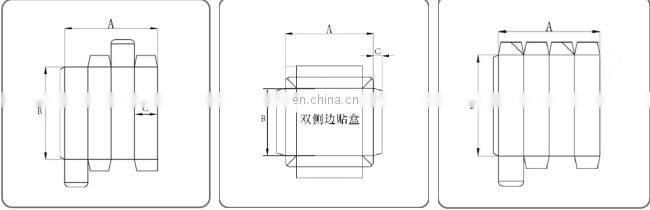

Straight line box |
double sides box |
crash-lock bottom box |
|
|
A |
MAX |
1500 |
1450 |
1400 |
|
MIN |
300 |
300 |
300 |
|
|
B |
MAX |
1200 |
1000 |
80 |
|
MIN |
80 |
120 |
1200 |
|
|
C |
MAX |
500 |
200 |
350 |
|
MIN |
20 |
20 |
50 |
|
7.Delivery : 40 days after receive deposit
8.Packing : Film packing and loaded in 1*40GP and 1*20
9.Payment terms: 1) T/T.30% deposit in advance, and 70% balance before shipped.
10.Warranty period:12 months
Buyer need to pay travel expenses(ticket),hotel accommodation,food .
Supplier will send one engineer to customer’s factory for installation and training ,according 100$ salary every day.
Valid time is 15 days.
Exhibition in guangzhou and beijing
Show in Drupa Germany
Our team
Activity Photo

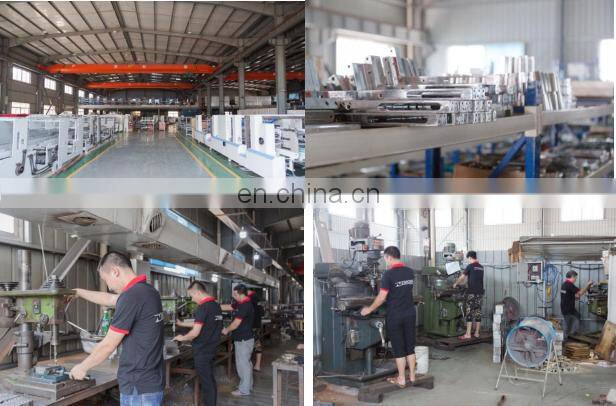

Workshop
