800 to 1600 c High Temperature Thermocouple Calibration Furnace

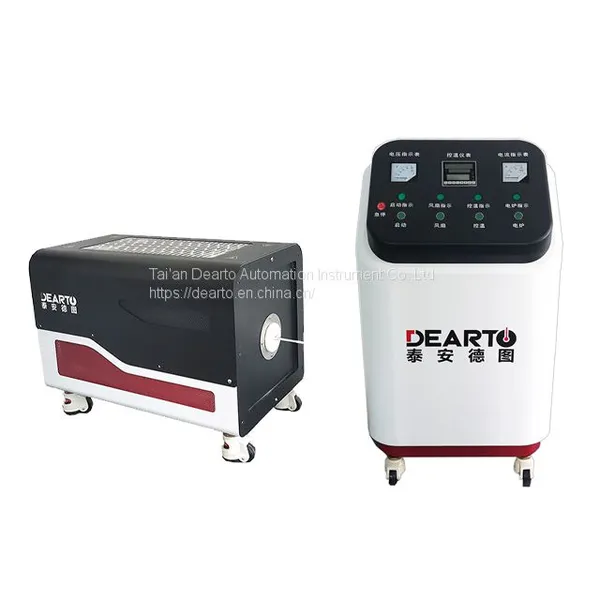

800 to 1600 c High Temperature Thermocouple Calibration Furnace photo-1

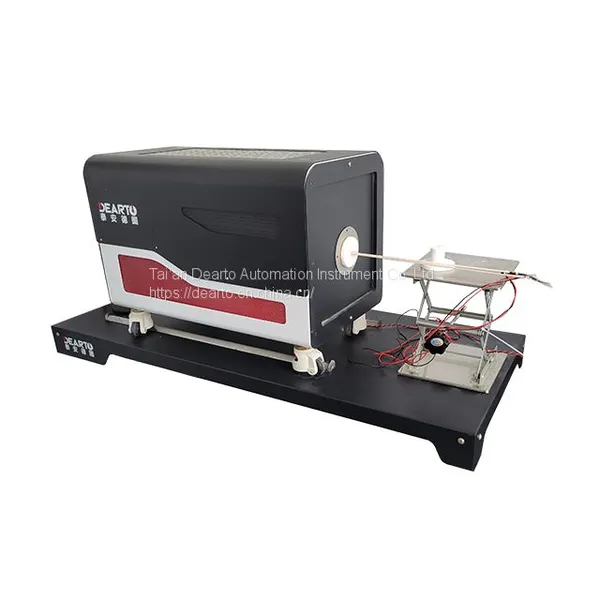

800 to 1600 c High Temperature Thermocouple Calibration Furnace photo-2

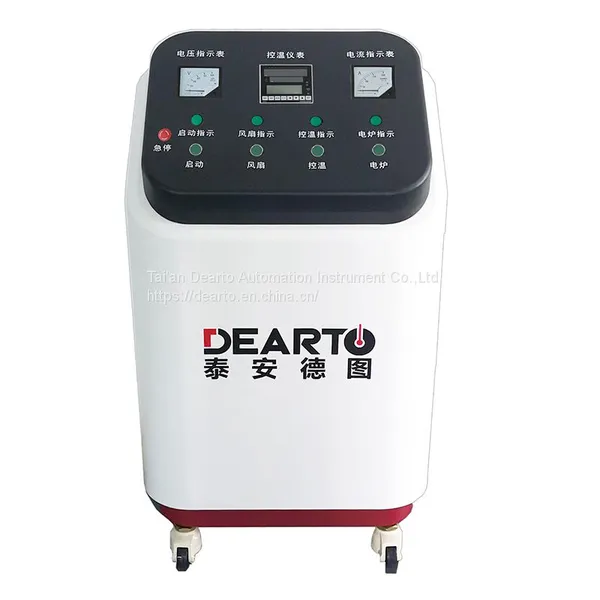

800 to 1600 c High Temperature Thermocouple Calibration Furnace photo-3

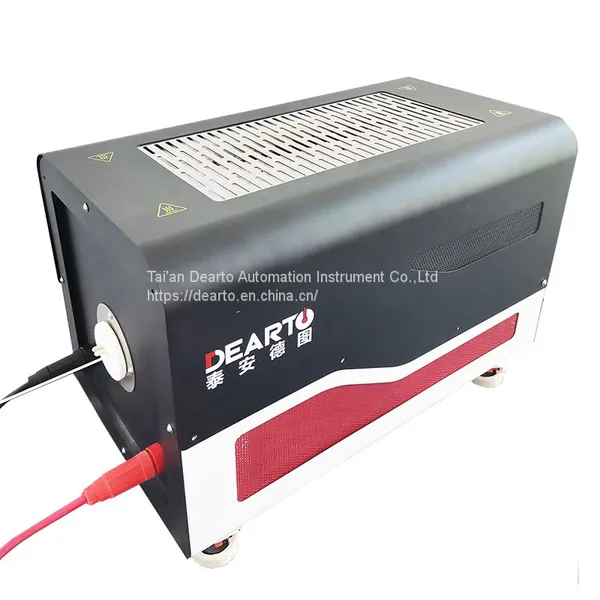

800 to 1600 c High Temperature Thermocouple Calibration Furnace photo-4
800 to 1600 c High Temperature Thermocouple Calibration Furnace photo-5
US$ 12700 - 22500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DEARTO
Place of Origin:
China
Model Number:
DTL-H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days
Brand Name DEARTO
Place of Origin China
Model Number DTL-H
Temperature Range 800℃~1600℃
Usage Industrial
Theory Temperature Controller
Accuracy ±0.5℃
Products Description
DTL series thermocouple verification furnace is a temperature field constant temperature equipment suitable for verification of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. This series of products has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national verification regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Product Features
* Equipped with an independent and special control cabinet.
* With overcurrent protection, limit current, protect heating device, avoid instant impedance caused by low impedance heating
overload.
* With current limit function and continuous flow protection function: prolong the controller life
* Equipped with the emergency stop button, you can manually stop the equipment work with one button
* Automatic temperature control: After startup, automatic temperature control, without manual intervention.
Product Paramenters
Temperature range
(800~1600)℃
Furnace hole diameter
Φ30 ×600mm,(Furnace hole size can be customized)
Power
3.0KW
Max operating current
70A
Power supply requirements
AC220V,50HZ
Temperature field index
The center of temperature field shall be no more than 20mm away from the geometric center. Within ±20mm of the highest point of furnace temperature, the temperature gradient shall be ≤0.5℃/cm, and the temperature difference within 20mm shall be no more than ±1℃ .
