DTS series liquid thermostatic bath is a new type of intelligent precision thermostatic bath introduced by our company. it adopts double-cavity side stirring structure to make the thermostatic bath reach the ideal uniform temperature field through intelligent PID adjustment. meet all kinds of low temperature thermocouple, industrial thermal resistance, pressure thermometer, bimetallic thermometer, glass liquid thermometer and other temperature sensors verification / calibration work. At the same time, the series of liquid thermostatic bath has the advantages of simple operation and convenient use.
Main features:
1、 The temperature field uniformity is good by using double bath side stirring mode.
2、 Intelligent PID control, with excellent temperature field stability and uniformity;

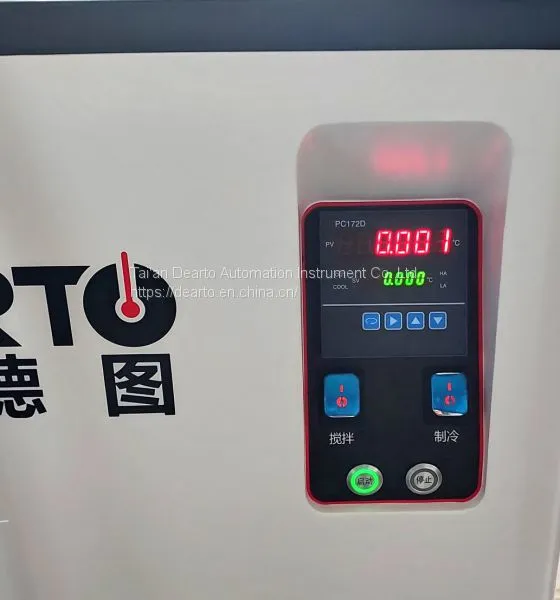

3、 High resolution display instrument, resolution 0.001℃.
4、 RS232/RS484 communication interface selection, can achieve computer control.
5、 Humanized design control is comfortable and convenient.
Technical indicators
DTS series liquid thermostatic bath | ||||||||
The product name |
Thermostatic oil bath |
Thermostatic Water bath |
Refrigeration thermostatic bath |
|||||
Type |
DTS-300E |
DTS-95E |
DTS-01E |
DTS-10E |
DTS-35E |
DTS-40E |
DTS-60E |
DTS-80E |
Temperature range |
70-300℃ |
RT+10-100℃ |
0-105℃ |
-10-105℃ |
-35-105℃ |
-40-100℃ |
-60-100℃ |
-80-100℃ |
Medium |
Silicone oil |
Soft water, antifreeze |
Antifreeze |
Anhydrous alcohol |
||||
Horizontal temperature field uniformity |
0.01℃ |
0.005℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
Vertical temperature field uniformity |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
0.01℃ |
Temperature stability(℃/10min) |
±0.007℃ |
±0.007℃ |
±0.01℃
|
|||||
Workspace size |
φ150×480 |
φ130×480 |
||||||
Volume(L) |
23 |
18 |
||||||
Maximum power(KW) |
3 |
2 |
2 |
3 |
3 |
|||
Overall dimensions |
650×600×1180 |
810×600×1180 |
||||||
Weight(kg) |
98 |
95 |
120 |
120 |
150 |
|||
Patented technology |
The thermostatic oil tank has patented anti-ignition technology |
|||||||
|
Can be customized precision thermostatic bath | ||||||||
