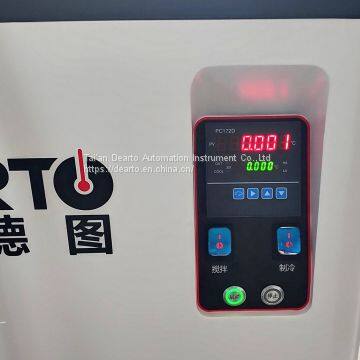

Help Center0.001 Deg C Fast Refrigerated and Heated Thermostatic Liquid Bath
Related Products
-
Thermocouple Verification Calibration Furnace up to 1300 Deg CUS$ 900 - 2000MOQ: 1 Piece -
0 Deg C Thermostat for Thermocouple Calibration Temperature CompensationUS$ 1000 - 1500MOQ: 1 Piece
-
Outstanding Performance 0.001 Deg C High Resolution PID Liquid Thermostatic BathUS$ 2000 - 3000MOQ: 1 Set
-
0.001 Deg C High Resolution PID Auto-control -40 to 180 C Micro Thermostatic Liquid BathUS$ 3750 - 6000MOQ: 1 Unit
-
50 to 550 Deg C Heat Pipe Thermostatic BathNegotiableMOQ: 1 Unit
Patented technology: The constant temperature oil tank has patented flameproof technology.
DTS-T high and low temperature constant temperature bath technical index is consistent with the original ordinary constant temperature bath, in the temperature range to meet the different needs of customers, so that customers originally need two different constant temperature baths to complete the test, can be completed in a bath body, with rapid lifting and cooling function, For customer verification pressure thermometer, bimetallic thermometer to provide backhaul measurement function, convenient for customers to use.
Main features:
1, The temperature field uniformity is good by using double bath side stirring mode.
2, Intelligent PID control, with excellent temperature field stability and uniformity;
3, High resolution display instrument, resolution 0.001℃.
4, Imported compressor, stable and reliable performance, optimized refrigeration system cooling speed faster.
5, Wide temperature range: no need to replace the working medium, a working medium can meet the (-20~180)℃ range of detection work.
6, RS232/RS484 communication interface selection, can achieve computer control.
7, Humanized design control is comfortable and convenient.
Technical parameters:
Product name | High low temperaturethermostatic bath | High low temperaturethermostatic bath | |
Model | DTS-T150 | DTS-T180 | |
Temperature range | -20~150℃ | -20~180℃ | |
Working medium | Special anti-freezing oil | Special anti-freezing oil | |
Uniformity of horizontal temperature field | 0.010℃ | 0.010℃ | |
Uniformity of vertical temperature field | 0.010℃ | 0.010℃ | |
Temperature fluctuation :℃/10 min | 0.010℃ | 0.010℃ | |
Work area dimensions | φ130×480 | φ130×480 | |
Volume :(L) | 18L | 18L | |
Maximum power :(KW) | 2.8 | 2.8 | |
Dimensions :(mm) | 660(L)×540(W)×1120(H) | ||
Quality :(Kg) | 120 | 120 | |
