Home > Products > topsale products > Choke Coil Common Mode Ferrite Core Inductor For Switching Power Supplies

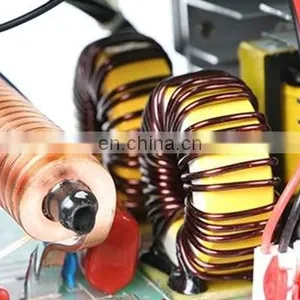

Choke Coil Common Mode Ferrite Core Inductor For Switching Power Supplies
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Low Resistance Through-hole Common Mode Choke Inductor 10 Henry Inductor
-
Magnetic Components PCB Current Transformer
-
Ozone Igniter Transformer With 4000V-7000V Output Voltage High Voltage Ignition Transformer Ignition Coil
-
Amorphous core Nanocrystalline toroid core for inductor
-
High Quality PCB Mount Encapsulated Transformer Secondary 12V With Lamination Sheet
-
PCB Mount Encapsulated Transformer EI20 Isolating Transformer
Product Description
Product Description

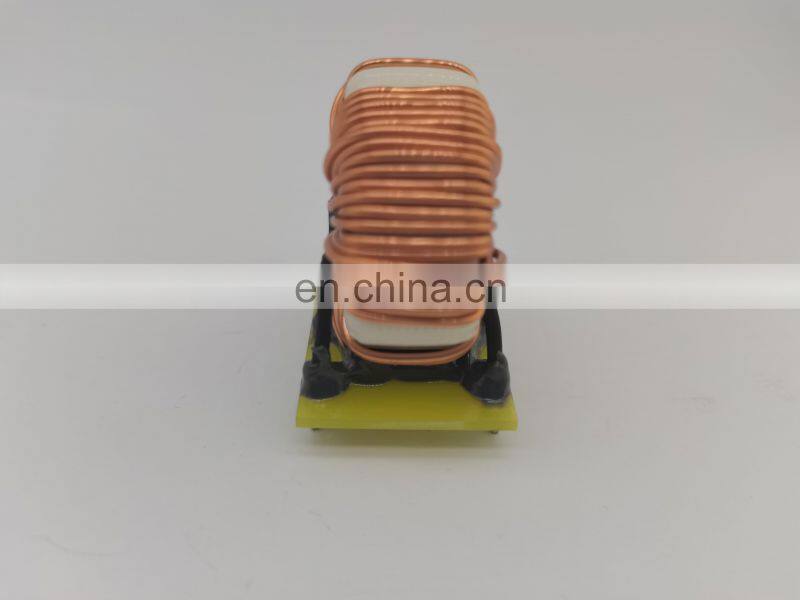

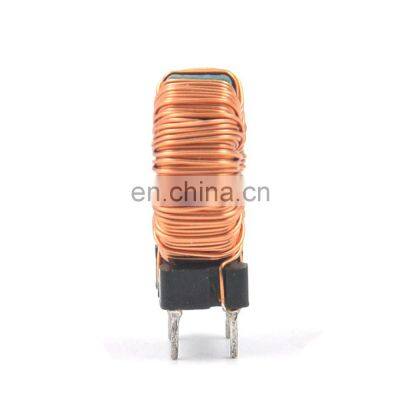

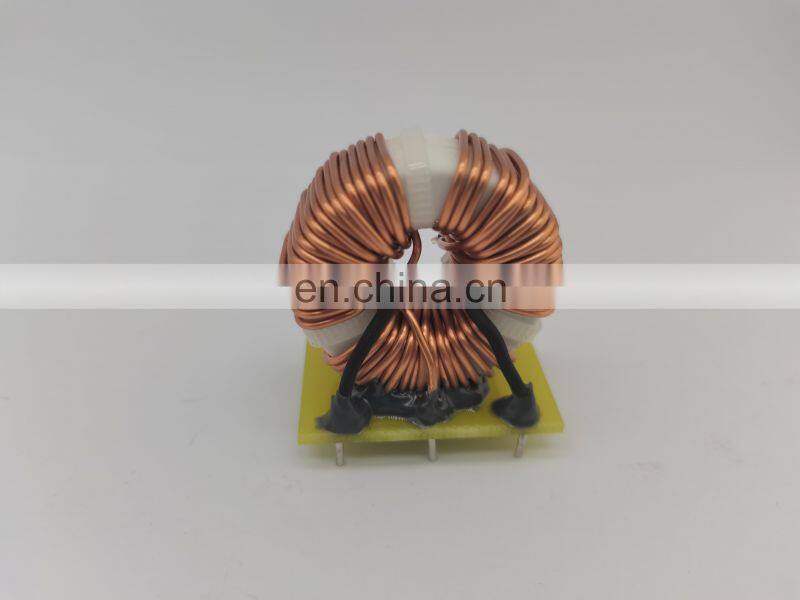

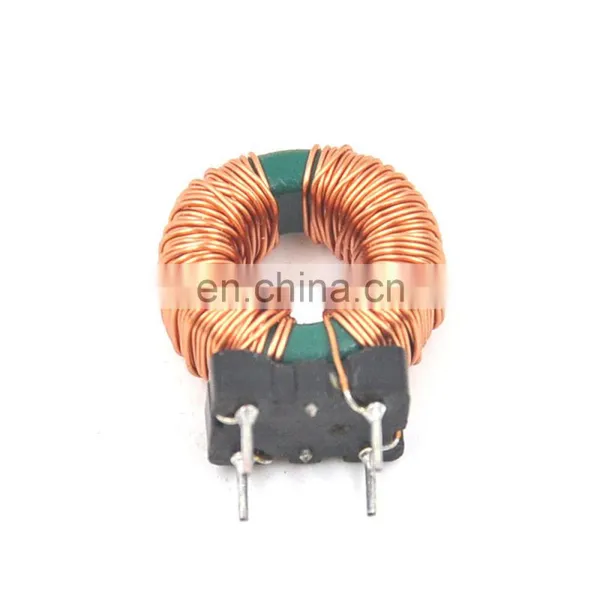

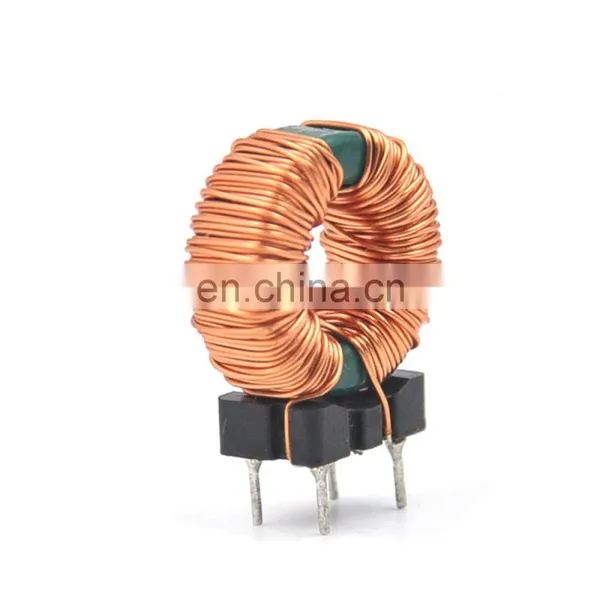

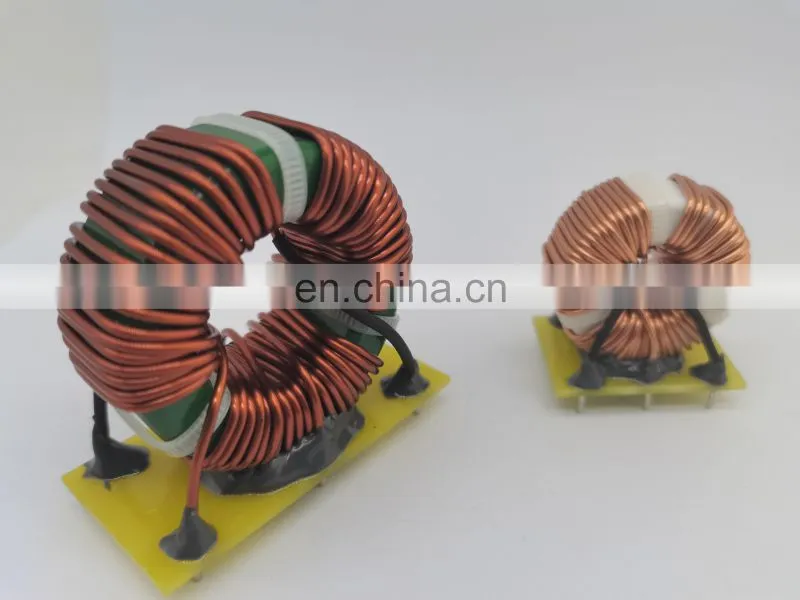

Choke Coil Common Mode Ferrite Core Inductor For Switching Power Supplies
Product Name | Inductor Choke Coil Common Mode Ferrite Core Through Hole |
Usage | Filtering |
Type | LAC |
Quality | 100% Tested |
Material | Magnetic core, Copper wire |
Brand Name | Fullstar |
MOQ | 1000 |
Certification | ISO9001/ROHS/CE/UL |
Packaging | Carton |
Shipping Term | DHL Fedex TNT EMS UPS |

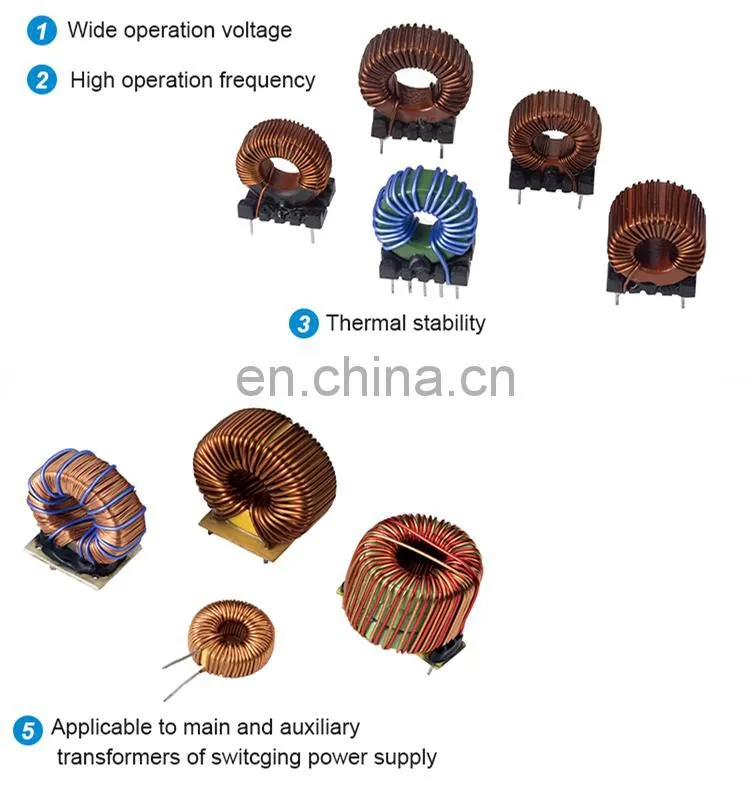

Features:
What is a Common Mode Choke?
In normal or differential mode (single choke), current travels on one line in one direction from the source to the load, and in the opposite direction on the return line that completes the circuit. In common mode, the noise current travels on both lines in the same direction
In common mode, the current in a group of lines travels in the same direction so the combined magnetic flux adds to create an opposing field to block the noise, as illustrated by the red and green arrows in the toroid core shown in Figure 1. In differential mode, the current travels in opposite directions and the flux subtracts or cancels out so that the field does not oppose the normal mode signal.
A common mode choke is an electrical filter that blocks high frequency noise common to two or more data or power lines while allowing the desired DC or low-frequency signal to pass. Common mode (CM) noise current is typically radiated from sources such as unwanted radio signals, unshielded electronics, inverters and motors. Left unfiltered, this noise presents interference problems in electronics and electrical circuits.
How do Common Mode Chokes Work?
In normal or differential mode (single choke), current travels on one line in one direction from the source to the load, and in the opposite direction on the return line that completes the circuit. In common mode, the noise current travels on both lines in the same direction
In common mode, the current in a group of lines travels in the same direction so the combined magnetic flux adds to create an opposing field to block the noise, as illustrated by the red and green arrows in the toroid core shown in Figure 1. In differential mode, the current travels in opposite directions and the flux subtracts or cancels out so that the field does not oppose the normal mode signal.

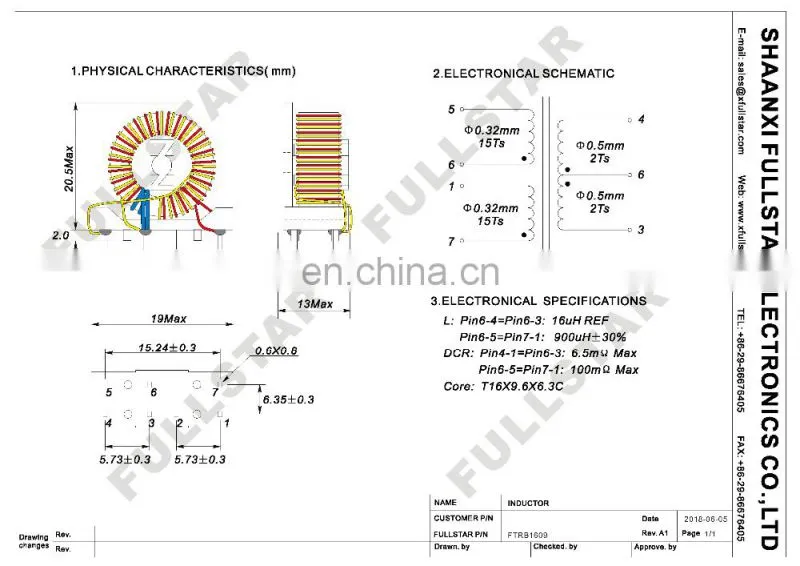

Detailed Image
Related Products

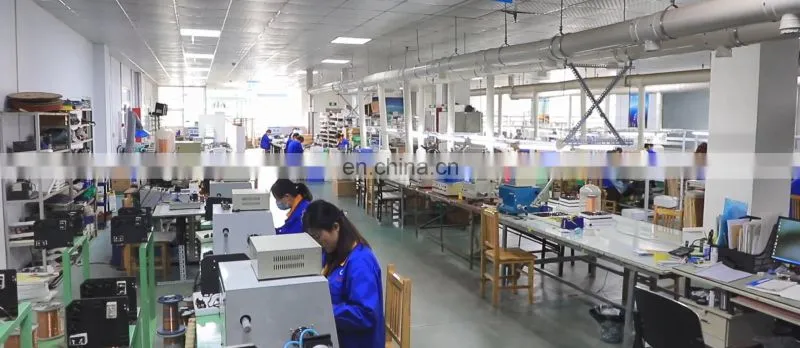

Our Company
SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .The main products are Air core choke,Trough-hole Drum Core Inductor,Through-hole Power Inductor,Rod Core Choke,Through-hole Common Mode Choke.
We are ISO9001: 2015 certified company.Our operating policy is "Quality comes first, customer foremost". We have excellent team engaging learning and mastering advanced technology . We provide high quality products , quick delivery , strong technical support & best service and would help our customers achieve the maximum value .
Certifications

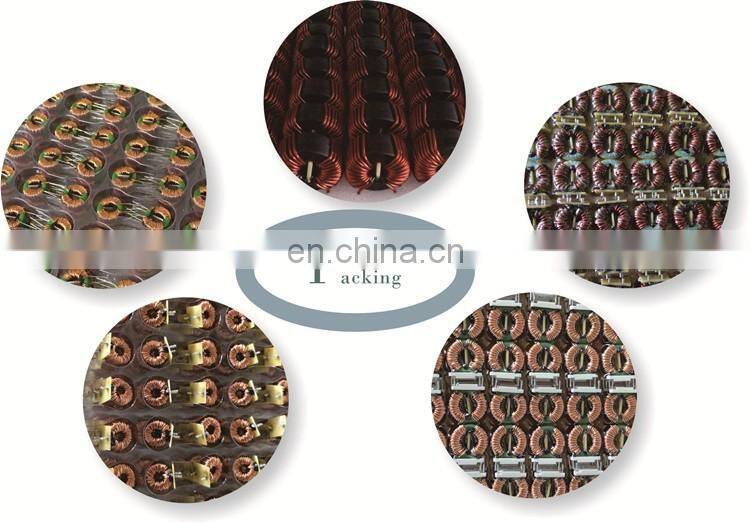

Packing & Delivery
FAQ
Contact Us
