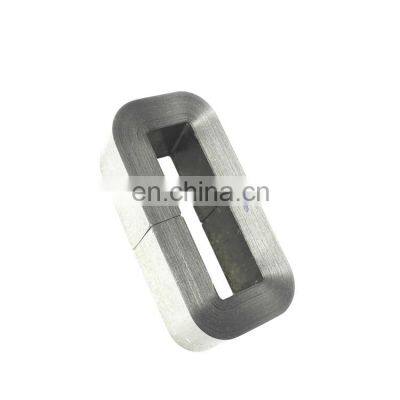

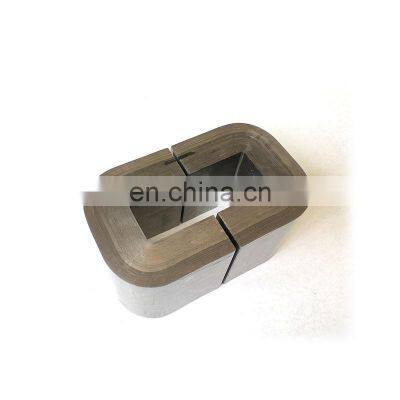

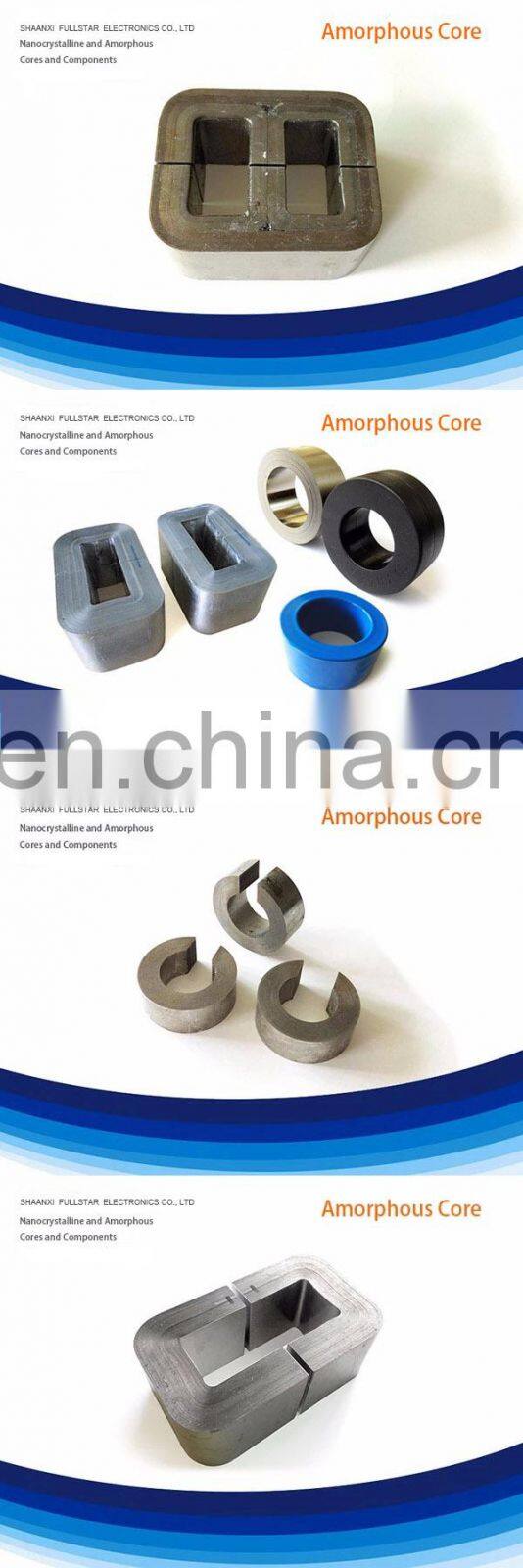

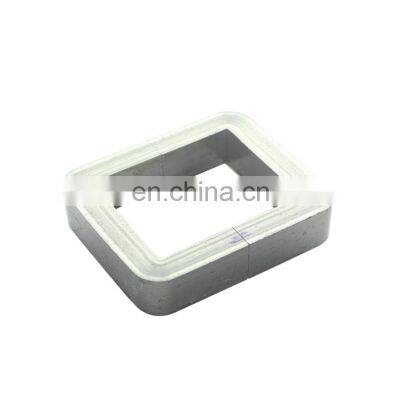

Amorphous Core Nanocrystalline Toroid Core for Inductor

Amorphous and nanocrystalline technology is a very important technology in modern magnetic materials, cores, and inductive components. King Magnetics has developed series of nanocrystalline core for common-mode chokes.

Nanocrystalline cores feature very high permeability over low frequency to high frequency up to 30Mhz. They are very suitable for common mode choke to be used as an EMC filter to compress conducted common-mode noise. Compared to the traditional ferrite core, the nanocrystalline core has a lot of advantages as high inductance, good filter effectiveness, small size and volume, fewer turns of copper wire, lower power consumption, and high efficiency.

Curie temperature of the nanocrystalline core is about 560℃, much higher than traditional ferrite core about 200℃. High curie temperature makes nanocrystalline core excellent thermal stability and can continue working at up to 120℃ environment.

Nanocrystalline cores are the best choice soft magnetic material for common mode choke. Our nanocrystalline cores used 25μm thickness second-generation thin ribbons, which have much higher permeability at high frequency.

SHAANXI FULL STAR ELECTRONICS CO., LTD is specialized in electronics and magnetic components.

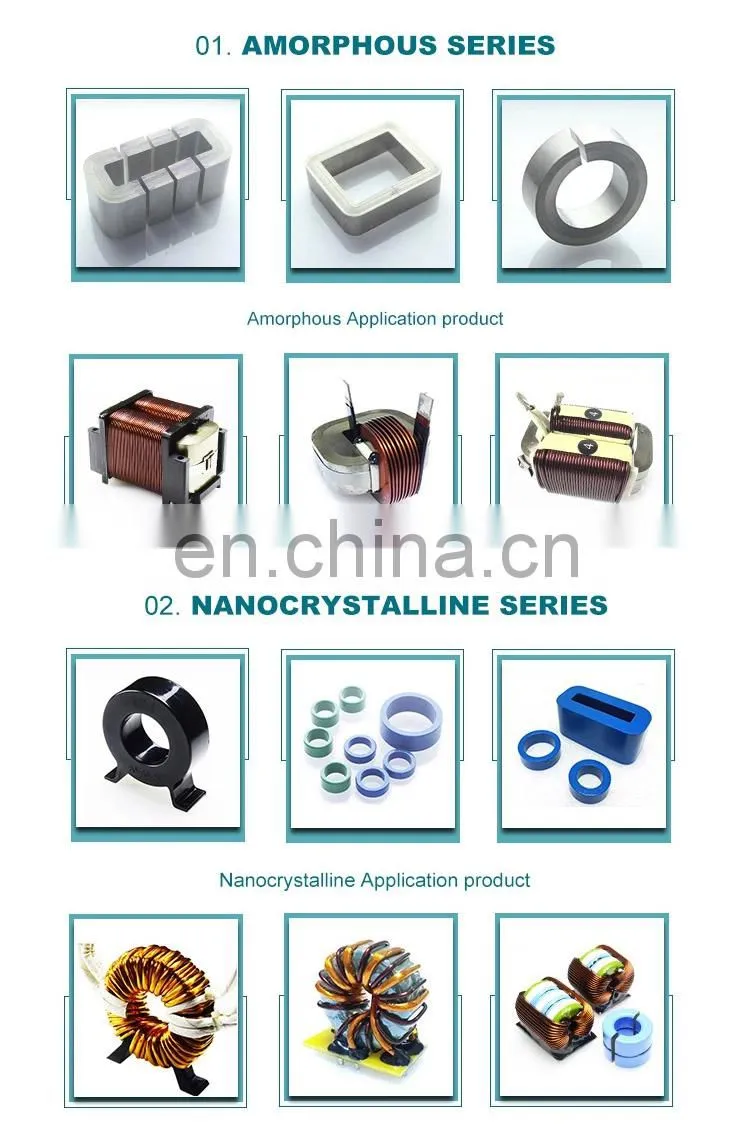

The main products are Soft Magnetic Mn-Zn Ferrite cores, Soft Magnetic Ni-Zn Ferrite cores, Iron powder cores, Alloy Cores. The products are exported to more than 40 countries and regions.
