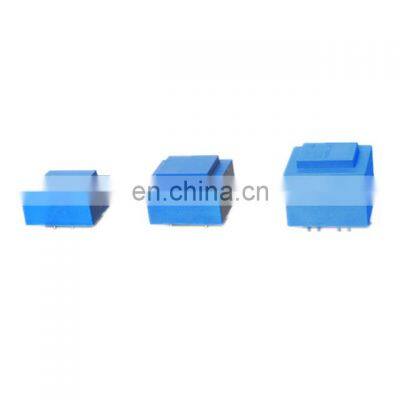

PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000 photo-2
PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000 photo-3

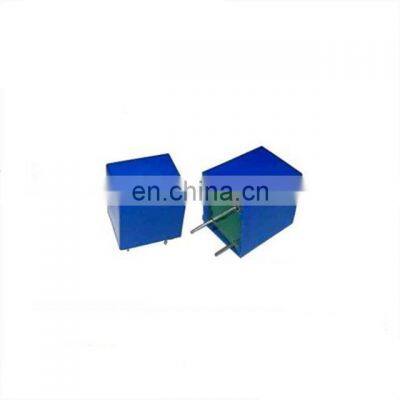

PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000 photo-4
PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Shaanxi Fullstar Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description



PCB Mounted Current Transformer

1:100/1:1000/1:1500/1:2000/1:3000



Features:

PCB Solid Current Transformers,
High Precision current range up to 200A Maximum,
Toroidal high precision current transformer, working frequency 50Hz/60Hz
Turns ratio: 1:60:, 1:100, 1:200, 1:2000, 1:2500, 1:3000
Operating temperature: -40 to 85 ℃
Low flux leakage
Perfect EMI performance
Low profile,
High sensitivity
Epoxy potted, high performance
Low cost
Epoxy resin wrapped package,high dielectric strength
Core is silicon steel, permalloy or nanocrystal,reliable performance
Working environment
Ambient temperature:-25°C~+85°C;
working temperature : -55C~+85C
Relative Humidity:When the temperature is 40°C not more than 90%
Atmospheric pressure:860~1060mbar
Dielectric strength : 6KV / min
Insulation resistance: 100M Ohms at 500V DC
Frequency:20Hz-20KHz
Accuracy:for IEC 60044-1 0.1, 0.2, 0.5%
Input current:0-40A
Output current:0-20mA
Low profile current transformer
Precision current transformer
Terminal transformer
Accuracy class: 0.2 or other requirements
Silicon steel sheet with iron core
Epoxy encapsulated
Customized designs welcome
PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000
Applications:
current control circuit and current test
Electrical monitoring system
Power energymeters
Ideal for current measurement and current relaying
Power transducer
Electrical monitor system
Power meter, all sorts of controlling devices
Earth leakage breaker,
Arc leakage brake
Equipment leakage circuit interrupter
Ground faultsbreaker
AC/DC, DC-DC converters

PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000

Packaging & Shipping

 In Cartons

PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000



Our Services

 PCB Mounted Current Transformer 1:100/1:1000/1:1500/1:2000/1:3000

Company Information

Providing with quality and standard customer-made electronic and passive components SMD power inductor and solution products, Fullstar Electronics is a leading SMD power inductor manufacturer and supplier in China. welcome to wholesale electronics SMD inductor, SMD coil, SMD choke, surface mount inductor, high-current surface mount inductor from our factory.
