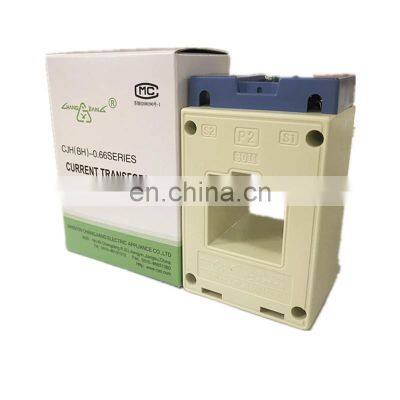

CJH current transformer 300/5a class 1.0 ct current transformer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SOLID CORE 100A Class 0.5 precise meter CT current transformer
-
JD194-BS4Q din rail transducor rs485 AC 3phase reactive power data logger sensors
-
JD194-BS4H7 3 phase digital ac power factor transducer with modbus
-
JD194-BS5I electrical measuring single phase power rs485 DC current transmitter
-
JD194-BS4I din rail electrical measuring single phase power rs485 current transmitter
-
JD194-BS4U din rail electrical measuring single phase power rs485 voltage transmitter
Product Description
Products Description
Product Name：SOLID CORE 100A Class 0.5 precise meter CT current transformer
Using square and circular combined mounting hole. Mainly used for single cable, multiple cable passing through or single busbar passing through. Matching with ammeter, As electrical measurement .
Using square and circular combined mounting hole. Mainly used for single cable, multiple cable passing through or single busbar passing through. Matching with ammeter, As electrical measurement .
Details Images
CJH-0.66 30I-1 50a/5a accuracy class 1 Window Type Current Transformer for ammeter
Technical parameters
Type specification | 30II | ||||||||||||
Name | CJH current transformer 300/5a class 1.0 ct current transformer | ||||||||||||
Products Standard | GB20840.2 | ||||||||||||
Operation Condition | Altitude height | Environment temperature | Relative humidity | Pollution class | Install type | ||||||||
≤3000m | -30℃~+60℃ | ≤90% | 3 | Ⅲ | |||||||||
Main technical index | commonparameter | Rated insulated Voltage (Ui) | 660V | ||||||||||
Rated impulse withstand voltage (Uimp) | None | ||||||||||||
protection degree | None | ||||||||||||
Primary current | 15~3000A | ||||||||||||
Secondary current | 5A,1A | ||||||||||||
Power-frequency withstand voltage | 3000V 1min 50HZ | ||||||||||||
Working frequency | 50~60Hz | ||||||||||||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the
items out of stock.
items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
