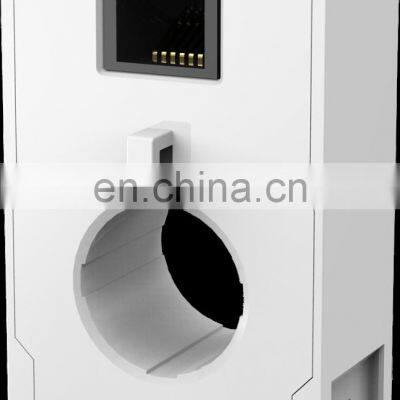

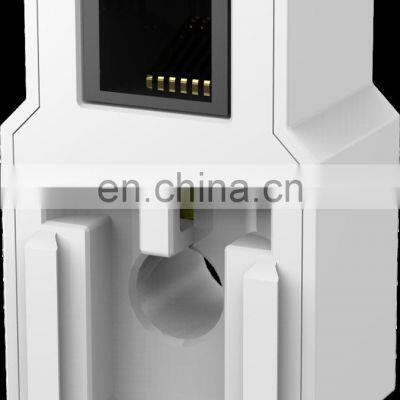

smart energy meter Accuracy 10% rated current 200/400 A solid core CT
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CJH current transformer 300/5a class 1.0 ct current transformer
-
SOLID CORE 100A Class 0.5 precise meter CT current transformer
-
JD194-BS4Q din rail transducor rs485 AC 3phase reactive power data logger sensors
-
JD194-BS4H7 3 phase digital ac power factor transducer with modbus
-
JD194-BS5I electrical measuring single phase power rs485 DC current transmitter
-
JD194-BS4I din rail electrical measuring single phase power rs485 current transmitter
Product Description
Product Description
Product Name:smart energy meter Accuracy 0.1% rated current 200/400A solid core CT

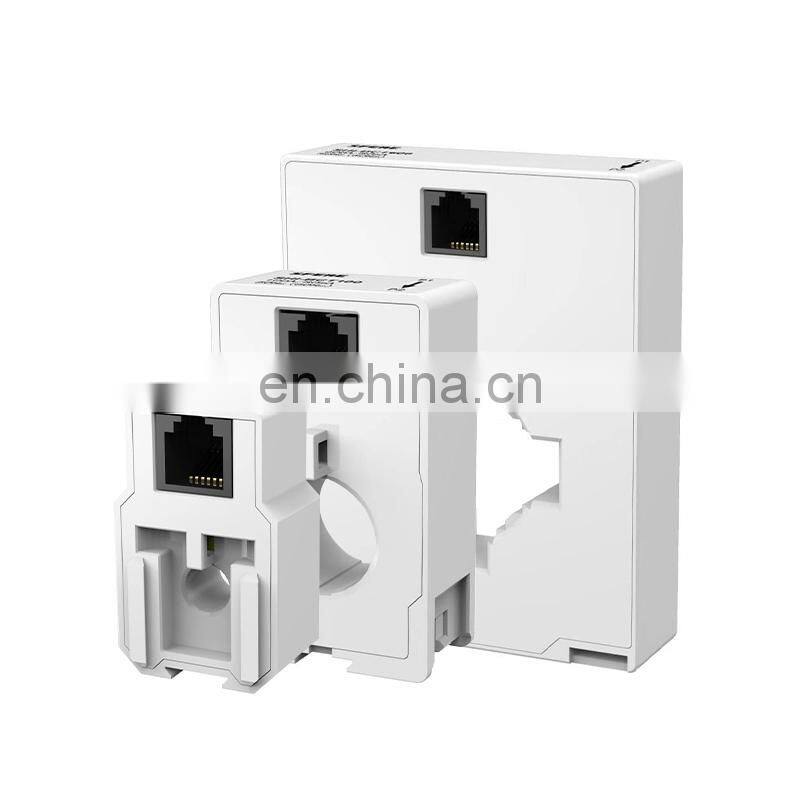

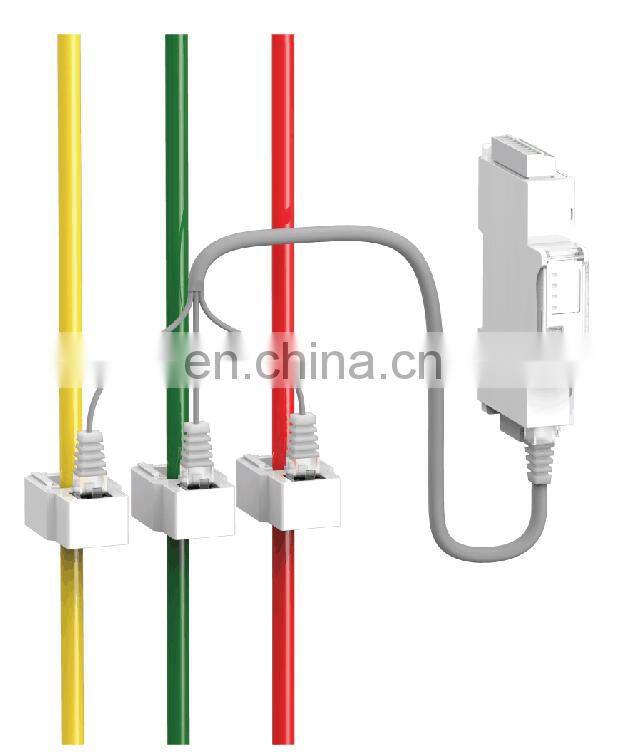

The measuring module sfere700-M in the sfere700 monitoring unit can be equipped with a variety of transformers: SOLID CORE CT, SPLIT CORE CT or FLEXIBLE CT to suit a wide range of applications. Among them, SOLID CORE CT, high precision current measurement, optional rating 5-100-200-400-600A.Technical parameters
Model | SHI-BCT05 | SHI-BCT100 | SHI-BCT200 | SHI-BCT400 | SHI-BCT600 |
Rated current | 5A | 100A | 200A | 400A | 600A |
Maximum current | 10A | 120A | 240A | 480A | 720A |
Accuracy | 0.1% | 0.1% | 0.1% | 0.1% | 0.1% |
Isolation Voltage | 4KVAC | 4KVAC | 4KVAC | 4KVAC | 4KVAC |
Operating Temperature | -40~70℃ | -40~70℃ | -40~70℃ | -40~70℃ | -40~70℃ |
Storage Temperature | -40~70℃ | -40~70℃ | -40~70℃ | -40~70℃ | -40~70℃ |
Diameter(mm) | 8 | 18 | 24 | 29 | 29 |
Dimension(mm) | 28X18X44 | 36x20x59 | 60x20x80 | 75x22.5x95 | 75x22.5x95 |
Related Products

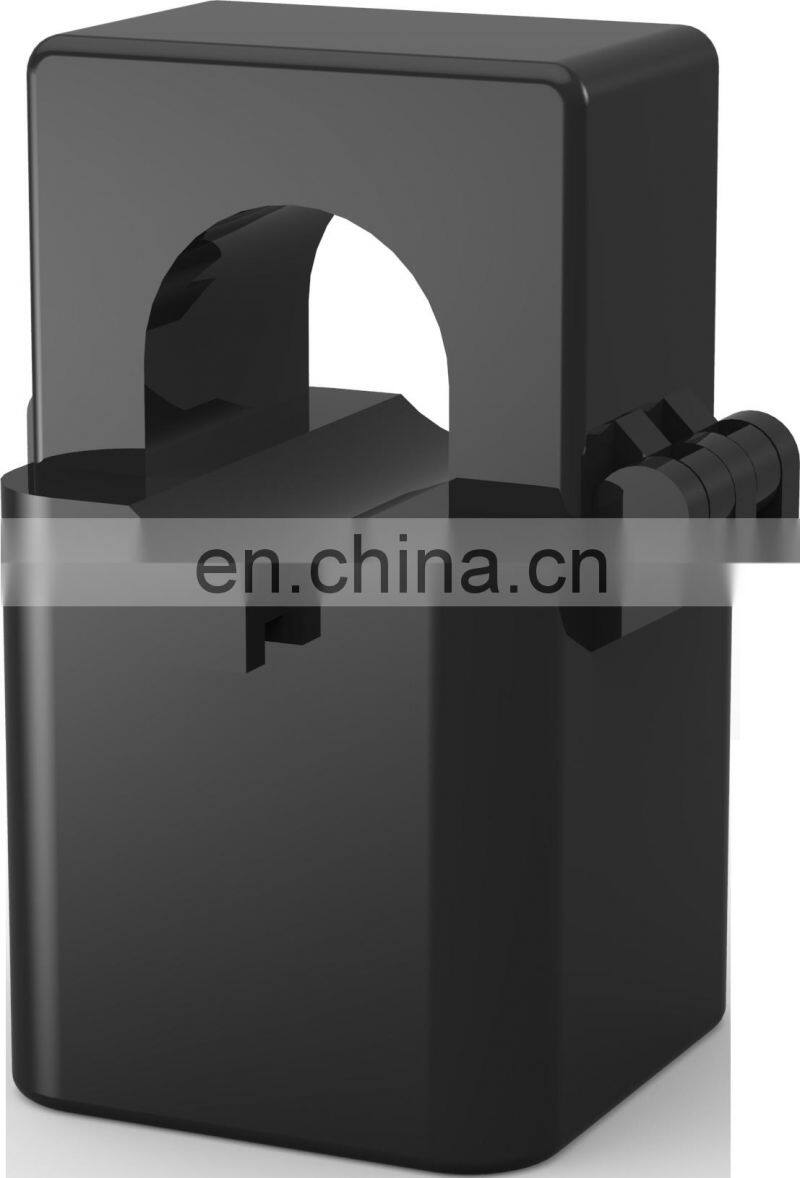

SPLIT CORE CT

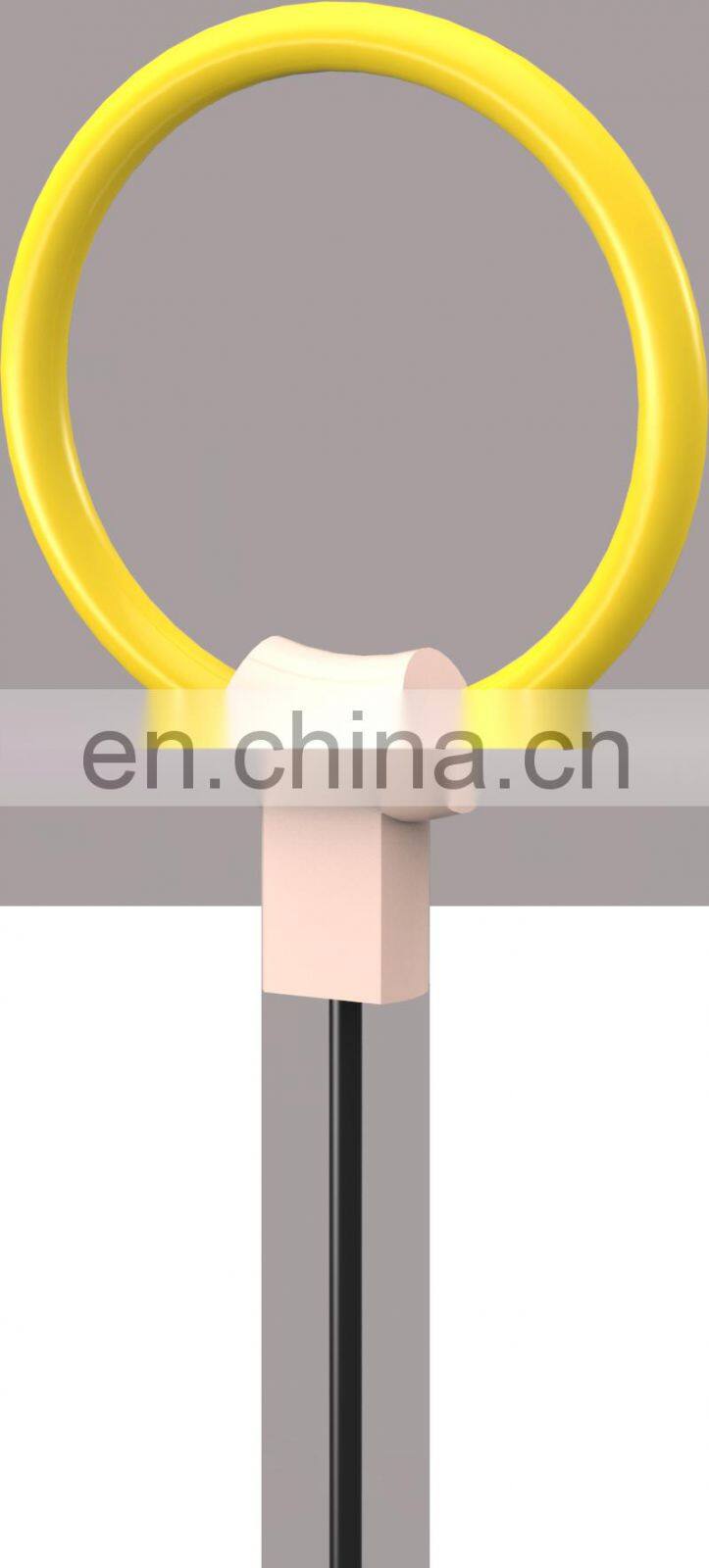

FLEXIBLE CT
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
