PD195E-5SY1 DC multi-functional RS485 comm energy meter solar electric monitoring system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Smart building LCD display digital volt ampere multi-functional ac energy meter
- Solar system multi-functional RS485 analog output dc power energy meter
- Smart building RS485 comm 3 phase volt voltage and current power meter
- Panel mounted 3 phase digital volt ampere multi functional electricity energy meter
- LNF33 LCD display panel mount RS485 3 phase current meter
- LNF36 96*96mm panel mount LCD display 3 phase current meter
Product Description
Product Description

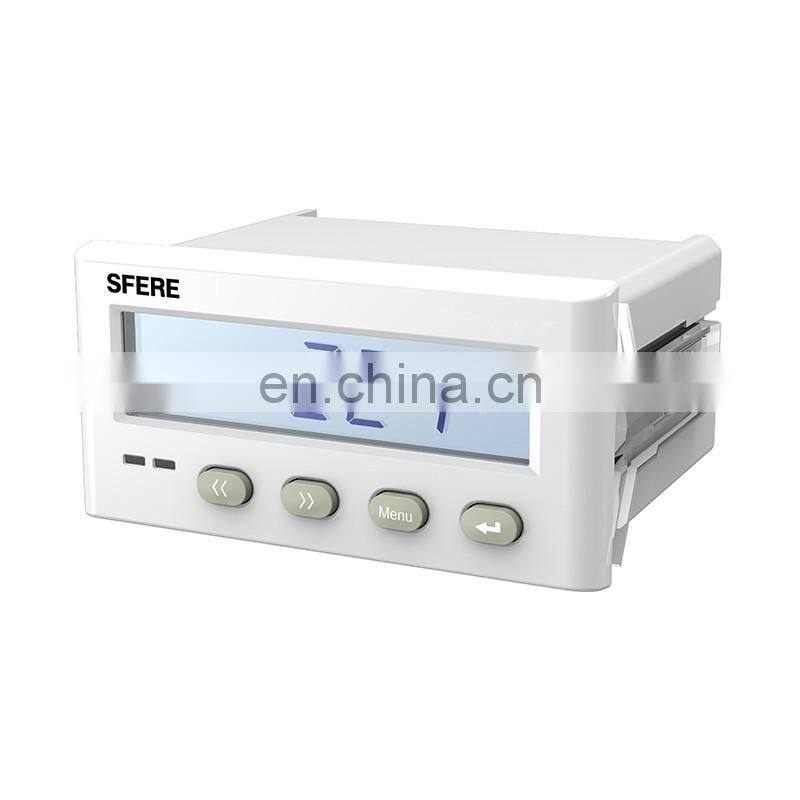

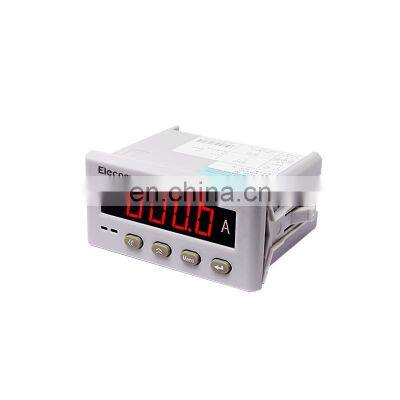

Product Name: PD195E-5SY1 DC multi-functional RS485 comm energy meter solar electric monitoring system
PD195E-5SY1 DC multi-function power meter can be widely used in DC working conditions. It can measure DC voltage, current, power, electric energy and other parameters. It can be used for continuous monitoring and control of DC system. Support switch state quantity monitoring, the same can be controlled remotely through the relay.
Technical parameters
Aaccuracy | 0.5% | ||
Date Update Rate | 1s | ||
Input | Current | DC ±4V、10A、75mV | |
Voltage | DC 1000V、1500V | ||
Overload | Continuous: 1.2 times of rated value | ||
Frequency | 45~65Hz | ||
Auxiliary power | Range | AC、DC (80-270)V | |
Consumption | ≤5VA | ||
Digital Input | Dry contact inputs,Isolation:2kVAC | ||
Relay Output | Contact capacity (resistive) AC 5A/250V、DC 5A/30V | ||
Analog Output | DC 4~20mA, DC 0-20mA, load ≤350Ω DC 0~5V, DC 1-5V, load≥20kΩ | ||
Communication Port | RS485,Modbus-RTU,2-WIRE,up tp 9600bps | ||
Degree of Protection | Front:IP64,Rear :IP20 | ||
Operating Temperature | -10℃~55℃ | ||
Storage Temperature | -25℃~70℃ | ||
Relative Humidity | ≤93%RH | ||
Insulation | ≥AC 2kV | ||
Altitude | ≤2500m |
Application
■ Programmable
■ Wide range of working temperature
■ High protection level
■ High DC voltage input
■ Panel Meter
■ DC parameter measuring
