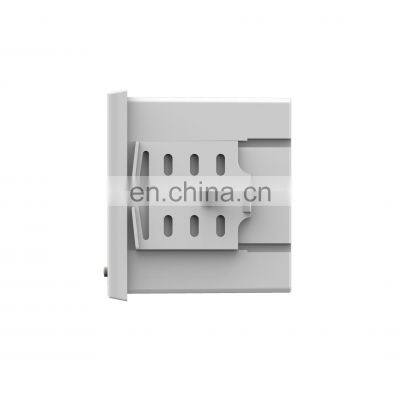

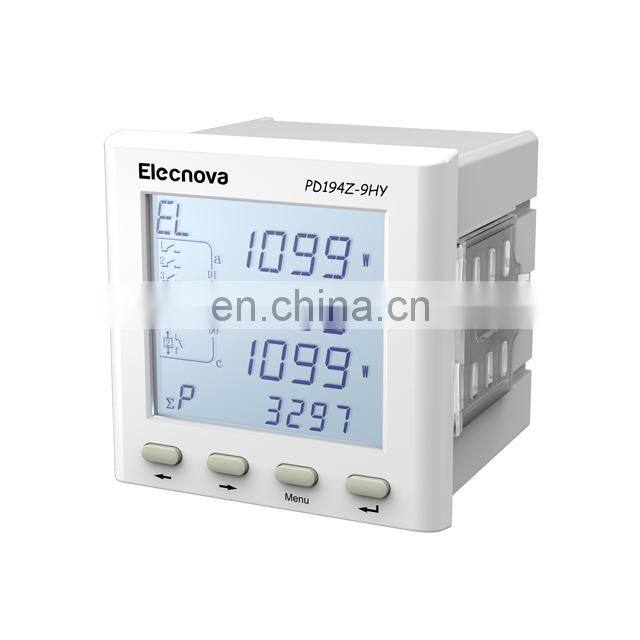

Digital 3 phase panel mounted kwh multimeter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Name: Digital 3 phase panel mounted kwh multimeter

This series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four quadrant reactive metering and harmonic analysis. they can be connected to power monitoring system and energy management system to realize remote data monitoring.

Technical parameters

Accuracy		Voltage, current: 0.2%; power: 0.5%, frequency: ±0.01HZ;Active energy:0.5s
Data update rate		1s
signal Input	Rated current	AC 1A,5A
		Rated voltage	AC 100V,3800V
		Overload	Continuous:1.2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/10s
		Energy consumption	≤0.1VA
		Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V/5A or DC 30V/5A
Auxiliary power supply	working range	AC/DC 80~270V
Auxiliary power supply		Energy consumption	≤5VA
Environment condition	working temperature	-10~55℃
		storage temperature	-25~70℃
		Relative humidity	≤93%RH
		Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety		Withstand voltage	power supply，input and output ≥2kv
Protection level		IP54

Related Products

Application

■ Smart equipment

■Intelligent building

■Public facility

■Industrial and mining enter enterprise

■Panel Meter

Production Process

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
