PZ195U-DK1 LED Digital Single Phase Embedded dc Volt Energy Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Digital 3 Phase Panel Mounted Kwh Multimeter
-
3 Phase Multifunction Analog Output Electric Power Meter Digital Multimeter
-
LCD Display Rs485 3 Phase Digital Voltage Electric Power Meter
-
LNF56 Multi-functional Harmonic Analysis Voltage Current Frequency Meter
-
LNF58 96*96 Bi-directional Multi Functional Panel Digital Meter
-
Factory Price Smart Building 96*96mm Panel Mounted 3 Phase Voltage Meter
Product Description
Product Description

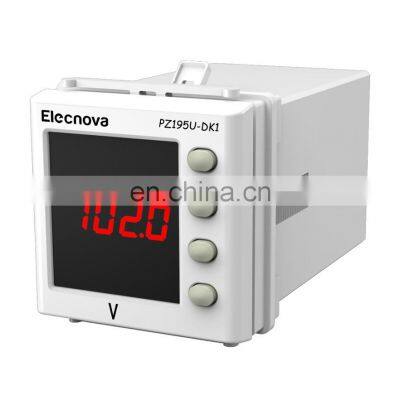

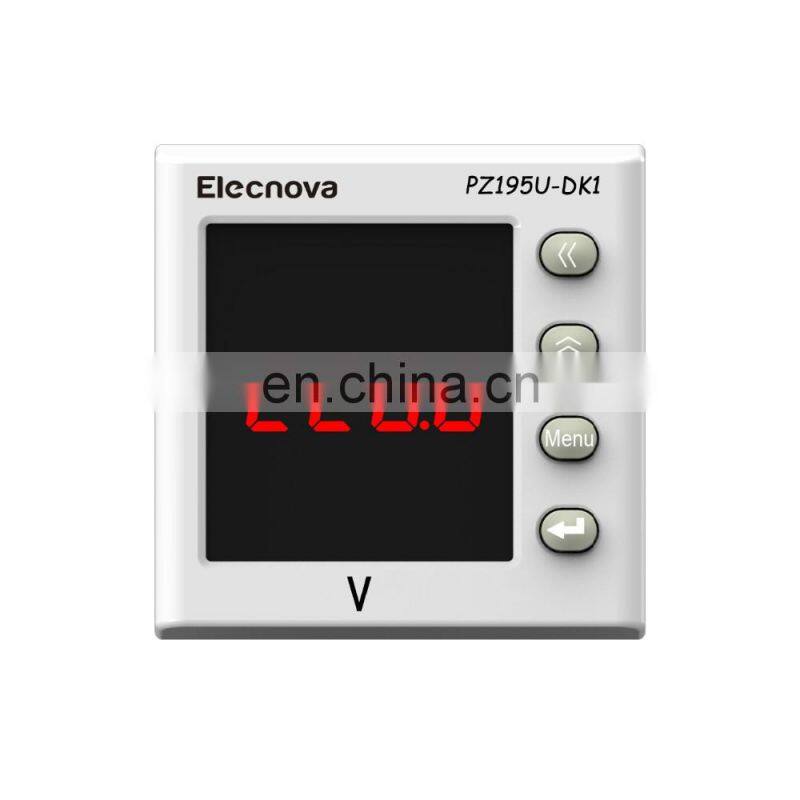

Product Name：PZ195U-DK1 LED digital single phase embedded dc volt energy meter
PZ195U-DK1 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical parameters
Aaccuracy | 0.5%(default),0.2% | ||
Date Update Rate | 1s | ||
Input | Current | Rated value:DC 1A,5A | |
Voltage | Rated value:AC 100V,220V,380V etc | ||
Overload | Continuous:2 times of rated value | ||
Frequency | 45~65Hz | ||
Safe Power Supply | Range | DC 80~270V 50/60Hz,DC 80~270V | |
Consumption | ≤5VA | ||
Digital Input | 2 dry contact inputs,Isolation:2kVAC | ||
Relay Output | 2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC | ||
Analog Output | DC 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ | ||
Communication Port | RS485,Modbus-RTU,2-WIRE,up tp 9600bps | ||
Degree of Protection | Front:IP64,Rear :IP20 | ||
Operating Temperature | -40℃~70℃(LED),-25℃~70℃(LCD) | ||
Storage Temperature | -45℃~85℃(LED),-30℃~80℃(LCD) | ||
Relative Humidity | ≤93%RH | ||
Insulation | AC≥2kV | ||
Altitude | ≤2500m | ||
Related Products
Application
Production Process
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
