WDH-31-500 380V ac Protection Circuit Breaker/thermal Switch Stepper Motor Controller
- T/T Credit Card
You May Like
-
WDH-31-500 Modbus Interface Overload Protection Stepper Motor Controller
-
Elecnova Industrial Automation Intelligent Motor Controller Siemens Automation
-
WDH-31-500 Profibus-DP Communication Fan Controller 3 Phase Motor Overload Protection
-
Elecnova Industrial Automation Solutions Intelligent Motor Protection Controller Mccb Siemens
-
WDH-31-200 AC 380V Intelligent Overload Motor Protection Controller
-
WDH-31-580 Water Pump Intelligent Multi Protection Motor Overload Controller
Product Description

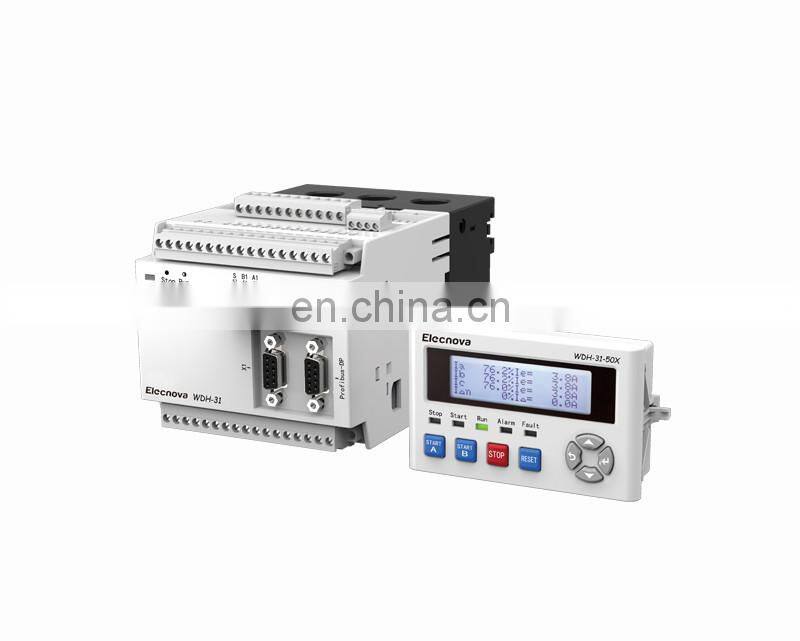

Product Name:WDH-31-500 380V ac protection circuit breaker/thermal switch stepper motor controller
WDH-31-500 is a new generation for the thermal relay, time replay,transducer and so on. It simplized the motor protection mode, brings a wider protection range and enhance the protection accuracy, turns the instrument more reliable.
Product Name | WDH-31-500 380V ac protection circuit breaker/thermal switch stepper motor controller | ||
System | Rated voltage of motor | AC 380V or AC 660V,50Hz | |
Rated current of motor | 0.1A~800A | ||
Insulation resistor | ≥100MΩ | ||
Safe Power Supply | Working range | AC 100~415V | |
Power consumption | ≤3VA | ||
Environment Condition | Operating temperature | -20℃~+60℃ | |
Relative humidity | ≤93%RH | ||
Storage temperature | -25℃~70℃ | ||
IP degree | Front:IP64,Rear:IP20 | ||
Current/voltage | ±1% of setting value | ||
Thermal capacity | ±1% of setting value | ||
Delayed acting time | When delayed acting value <2s:±100ms When delayed acting value ≥ 2s:±5% | ||
Control Relay | Contact capacity | AC 250V/5A | |
Signal Relay | Contact capacity | AC 250V/5A | |
Analog Output | Mode | DC 4~20mA,RL≤350Ω | |
Insulation | ≥2kVAC | ||

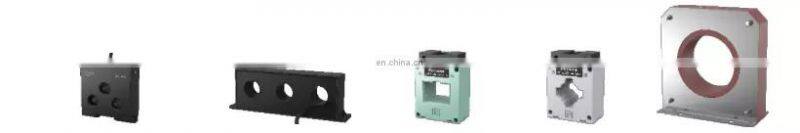

THREE-PHASE CT | EXTERNAL CT | RESIDUAL CURRENT CT | |||||
Model | SHI01-I/SHI30-I/SHI200-I | SHI3000-I | SHI-ZT40 | SHI-ZT30 | SHI-ZT100 | ||
Diameter(mm) | 20 | 30 | 42X30 | 31 | 100 | ||
Dimension(mm) | 93X45X96 | 185X36X72 | 75X44X102 | 75X44X98 | 185X44X190 | ||
WDH-31-500 can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT AOI Test Plug-In Mounting
Wave Soldering Assembling Inspection
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
